4 Units Description
4-11

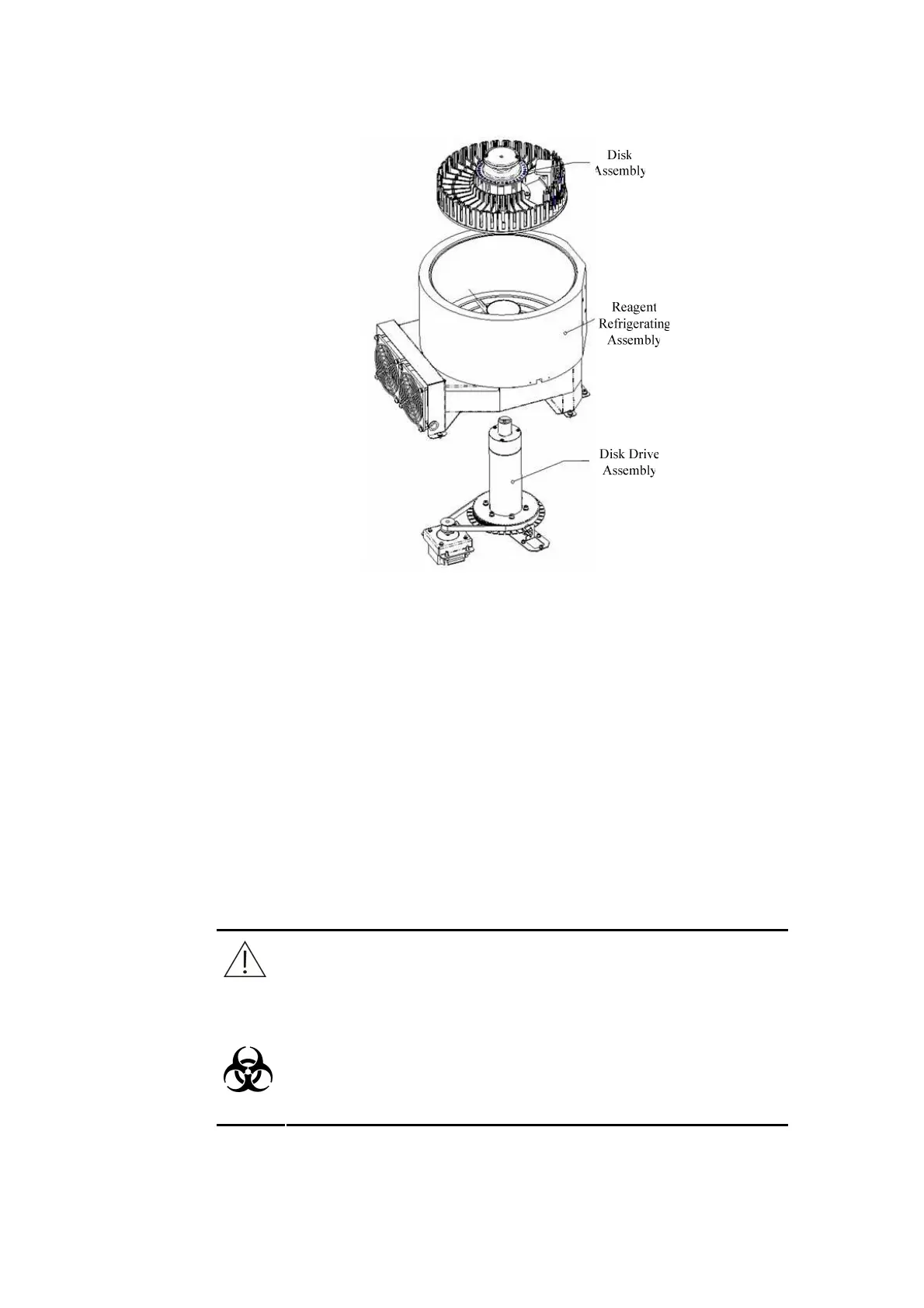

Figure 4-10 Sample/Reagent Disk Unit
Reagent Refrigerating Assembly:The reagent refrigerating assembly is used to
provide refrigeration function and keep the reagents in a low-temperature environment,
so that the reagent are kept stable and will not be volatilized. The reagent refrigerating
assembly consists of refrigeration compartment assembly, refrigeration plate, air duct
and fan assembly.
Disk Drive Assembly:
The disk drive assembly can carry specified sample tube or
reagent bottle to the aspirating position for aspirating according to programmed period.
The disk drive assembly consists of drive shaft assembly, sensor assembly, motor
assembly, synchronous belt and coder.
Disk Assembly:
Disk assembly is used to hold reagent bottles or sample tubes and
rotates counter-clockwise, carrying each reagent bottle or sample tube to the aspirating
position when needed. The disk assembly includes the handle assembly, reagent disk
assembly and sample disk assembly.
4.3.3 Dismounting Sample/Reagent Disk Unit
CAUTION
The probe tip is sharp and can cause puncture wounds. To prevent
injury, move the probe to the safe position before taking out disk
assembly.
BIOHAZARD
Do not touch the probe and disk assembly. Please wear gloves if
necessary.
