4 Units Description
4-33
CAUTION
Before opening the table panels, pull up the sample probe and the
mixing bar so as to operate conveniently.
WARNING
Be careful not to be injured by the sample probe.
BIOHAZARD
Don’t touch the the sample probe with naked hand.
3． Open the shielding box of the AD housing assembly(See Chapter 4.6.3.3 ), and
connect two probes of the oscillograph to the AD start signal(RC and GND) and the
analog signal (V3), then connect the earth terminal to the ground.

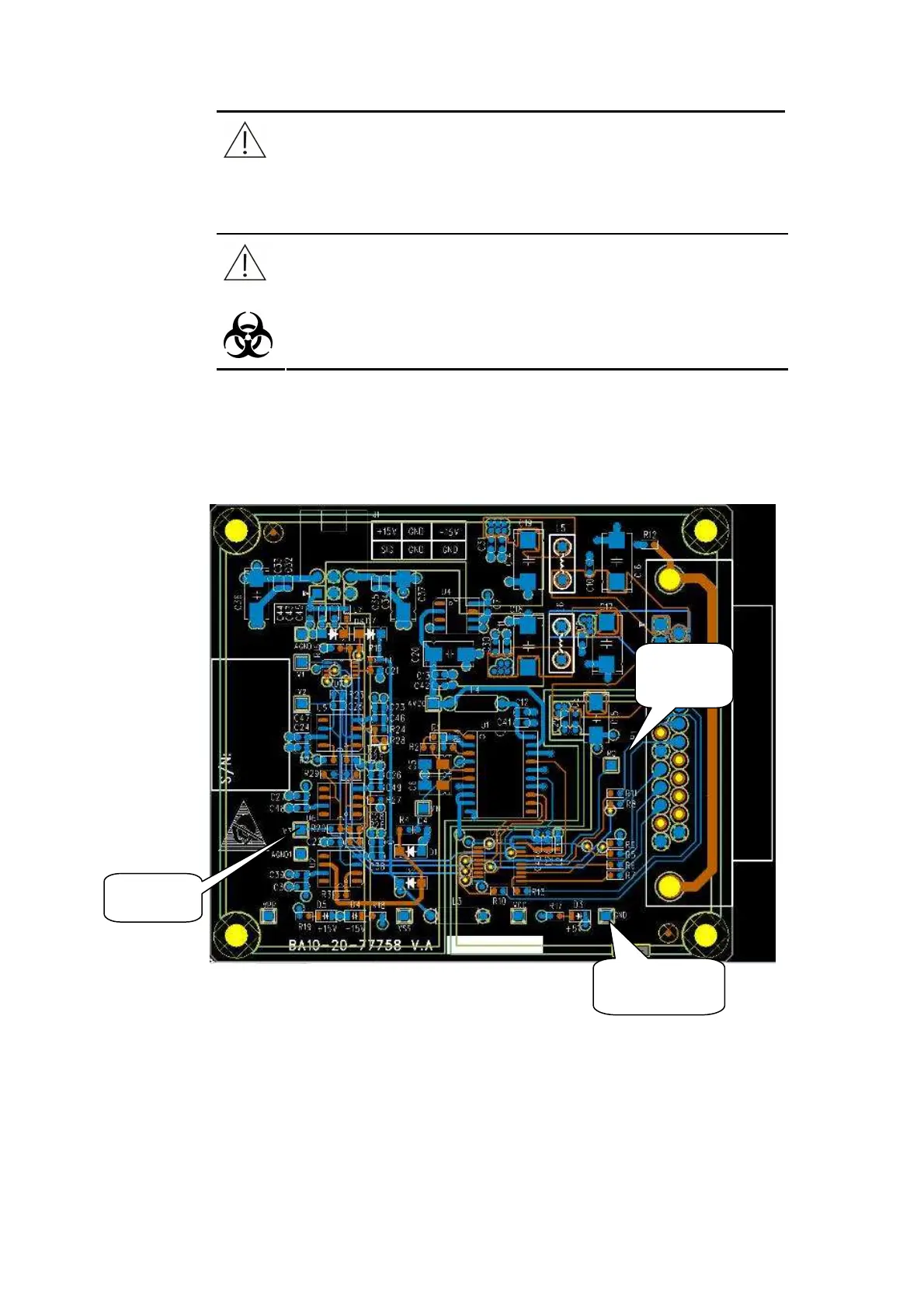

Figure 4-38 AD Conversion Board
4． Turn on the Main Power.
5． Enter the BS-120/BS-130/BS-180/BS-190 test and maintenance software(See
Chapter 8). Place 40 clean cuvettes on the reaction disk. Click Rotate and
measure to start the photoelectric measurement. In the meantime, start the signal
collection of the oscillograph. The software interface is indicated in Figure 4-39.
AD start
signal RC
Earth Terminal
GND
Analog
To Next Page
