10.2.4 Breathing Hoses

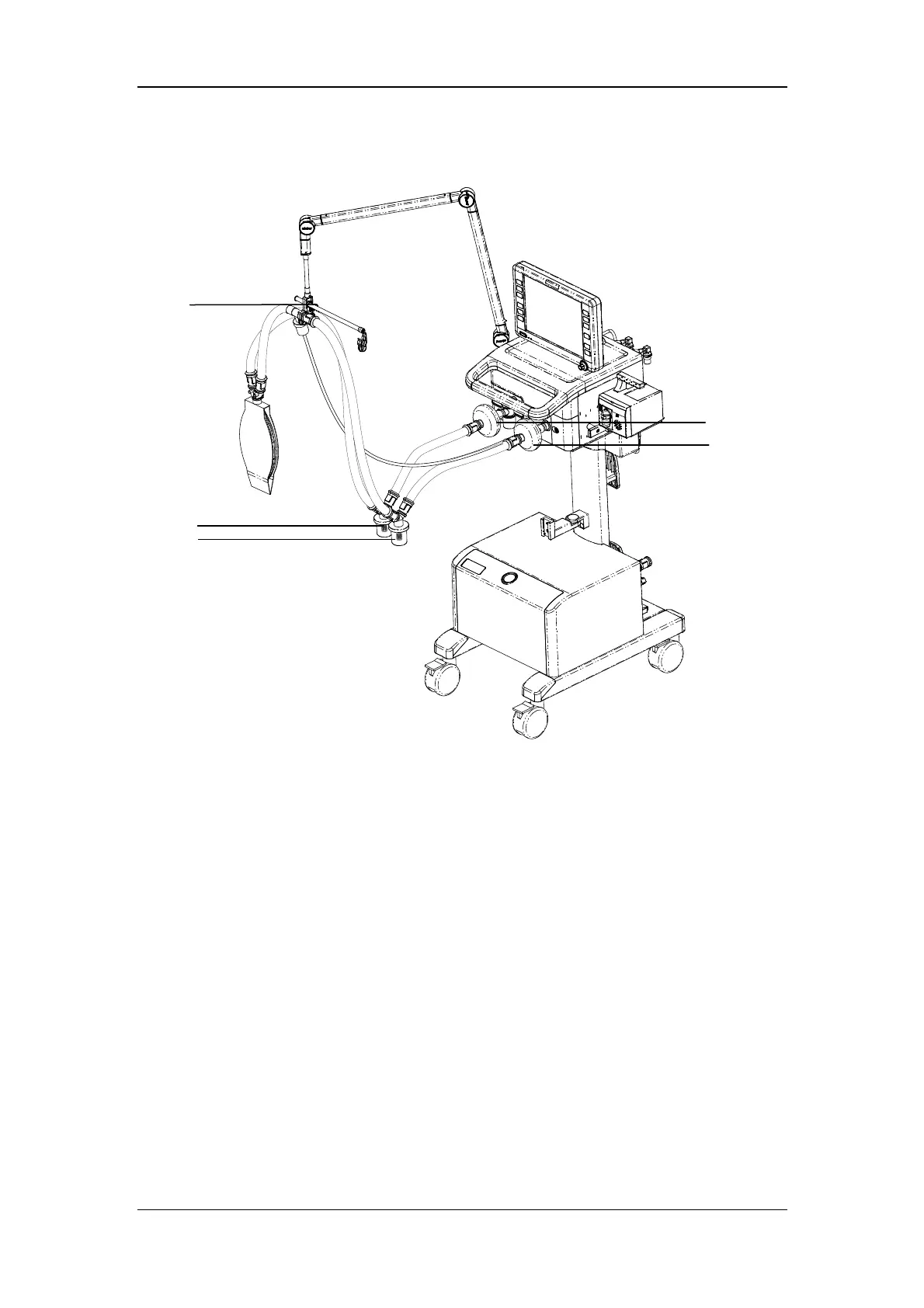

A. Inspiratory filter B. Expiratory filter
C. Inspiratory water trap D. Expiratory water trap
E. Support arm hook
 To disassemble the breathing hoses:
Pull out the breathing hoses one by one.
 To install the breathing hoses:
1. Mount the filters onto the inspiratory and expiratory ports.
2. Connect the inspiratory filter to the water trap via the hose. Connect the other end of the
hose to the Y piece.
3. Connect the expiratory filter to the water trap via the hose. Connect the other end of the
hose to the Y piece.
4. Place the breathing hoses onto the support arm hook.
E
B
A
D
C
