6. Button for parameter grouping. Options are [All], [Pressure], [Volume], [Time] and
[Other]. [Pressure] parameters include Ppeak, Pplat, Pmean, and PEEP. [Volume]
parameters include TVi, TVe, TVe spn, MV, MVspn, and MVleak. [Time] parameters
include ftot, fmand, and fspn. [Other] parameters include Ri, Re, Cdyn, RSBI, WOB,
FiO2, FiCO2 and EtCO2.
7. Resolution button, which can be set to 1 min, 5 min, 10 min, 15 min, 30 min, and 1h.
8. Horizontal scroll bar, indicating the position of the currently displayed trend data in the
entire trend database.
9. Cursor control button for moving the cursor left or right.
10. Horizontal scroll bar control button for moving the horizontal scroll bar left or right.
11. Vertical scroll bar control button for moving the vertical scroll bar up and down.
4.6 Measured Values Screen

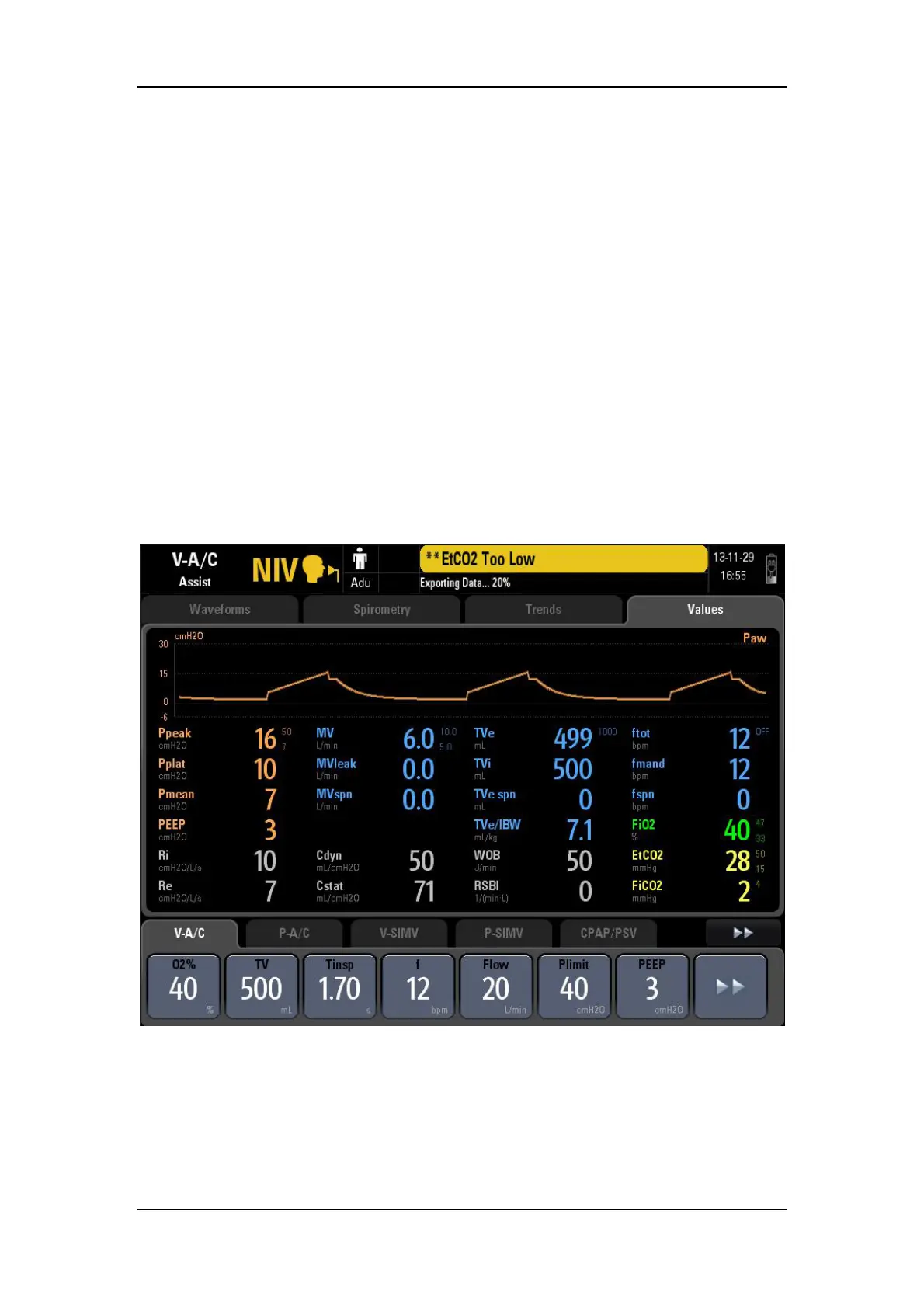

Select [Value s ] to access the measured values screen as shown below.
