Mindray SynoVent E5 - Humidifier

10-9
WARNING
 Nebulization yields the best performance at flow of 6 L/min. Nebulizers with other
flows can create significant errors in tidal volume and oxygen mix.
10.2.6 Humidifier
Note
 Install the humidifier which complies with the specification. The humidifier
assembly and its installation steps described here are only for reference.

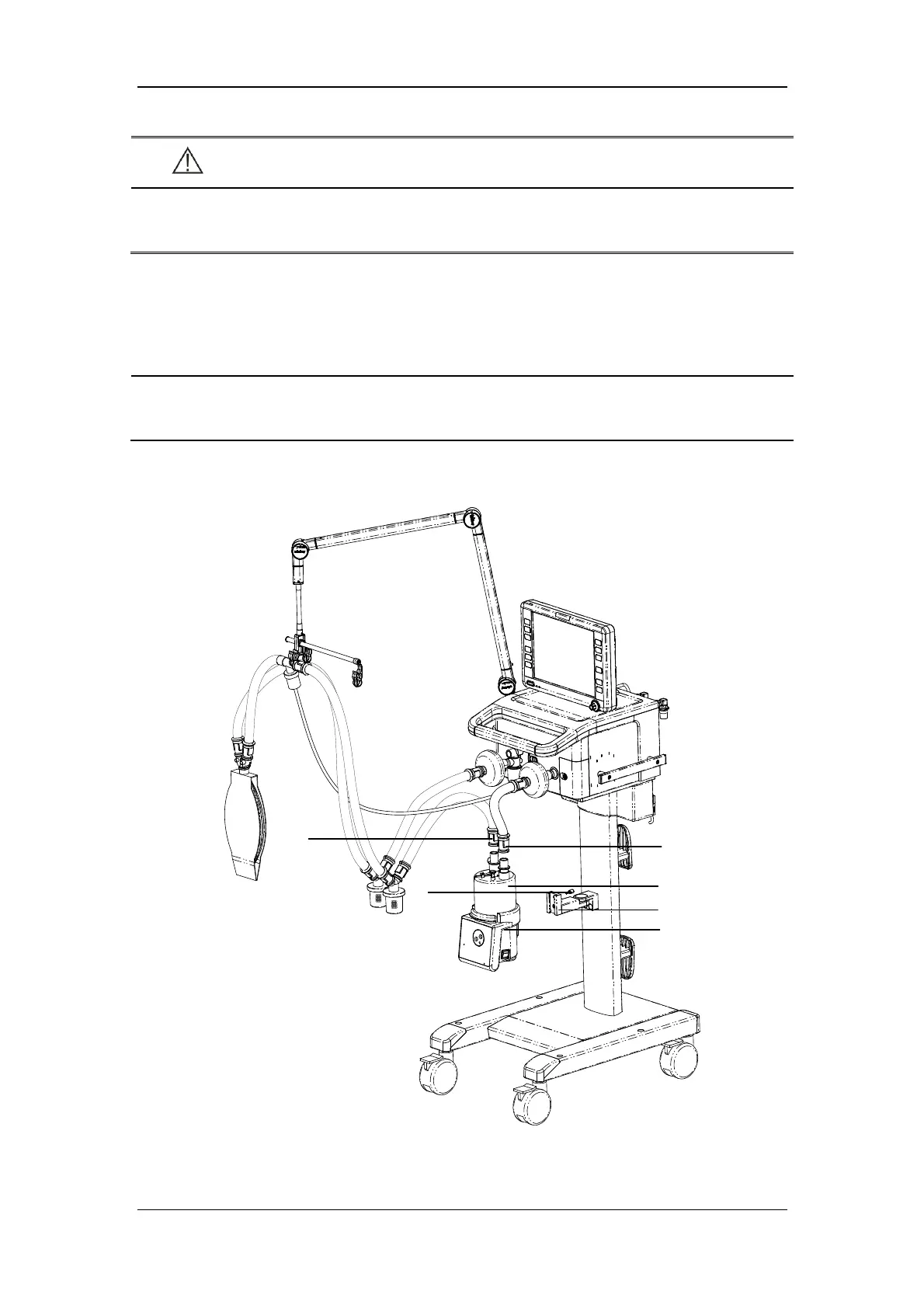

10.2.6.1 Humidifier Installed onto the Ventilator
B
A
C
D
E
F
