3.7 Install the Humidifier
Note
 Install the humidifier which complies with the specification. The humidifier
assembly and its installation steps described here are only for reference.

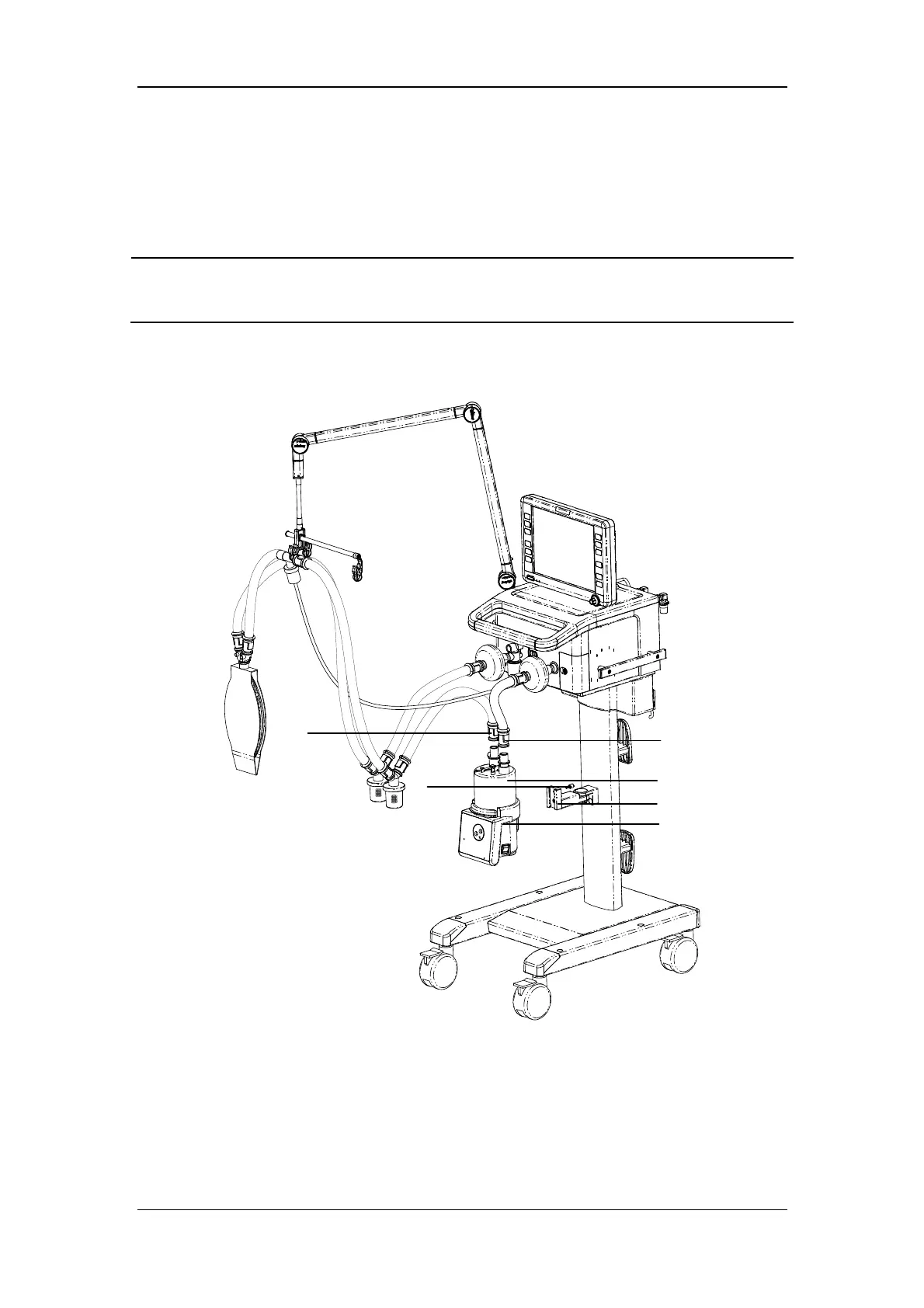

3.7.1 Install the Humidifier onto the Ventilator
A. Humidifier B. Humidifier sliding wheel
C. Humidifier bracket fixed seat D. Screw
E. Humidifier inlet F. Humidifier outlet
1. Align the humidifier sliding wheel with the humidifier bracket fixed seat and slide in the
humidifier.
2. Tighten the screw.
B
A
C
D
E
F
