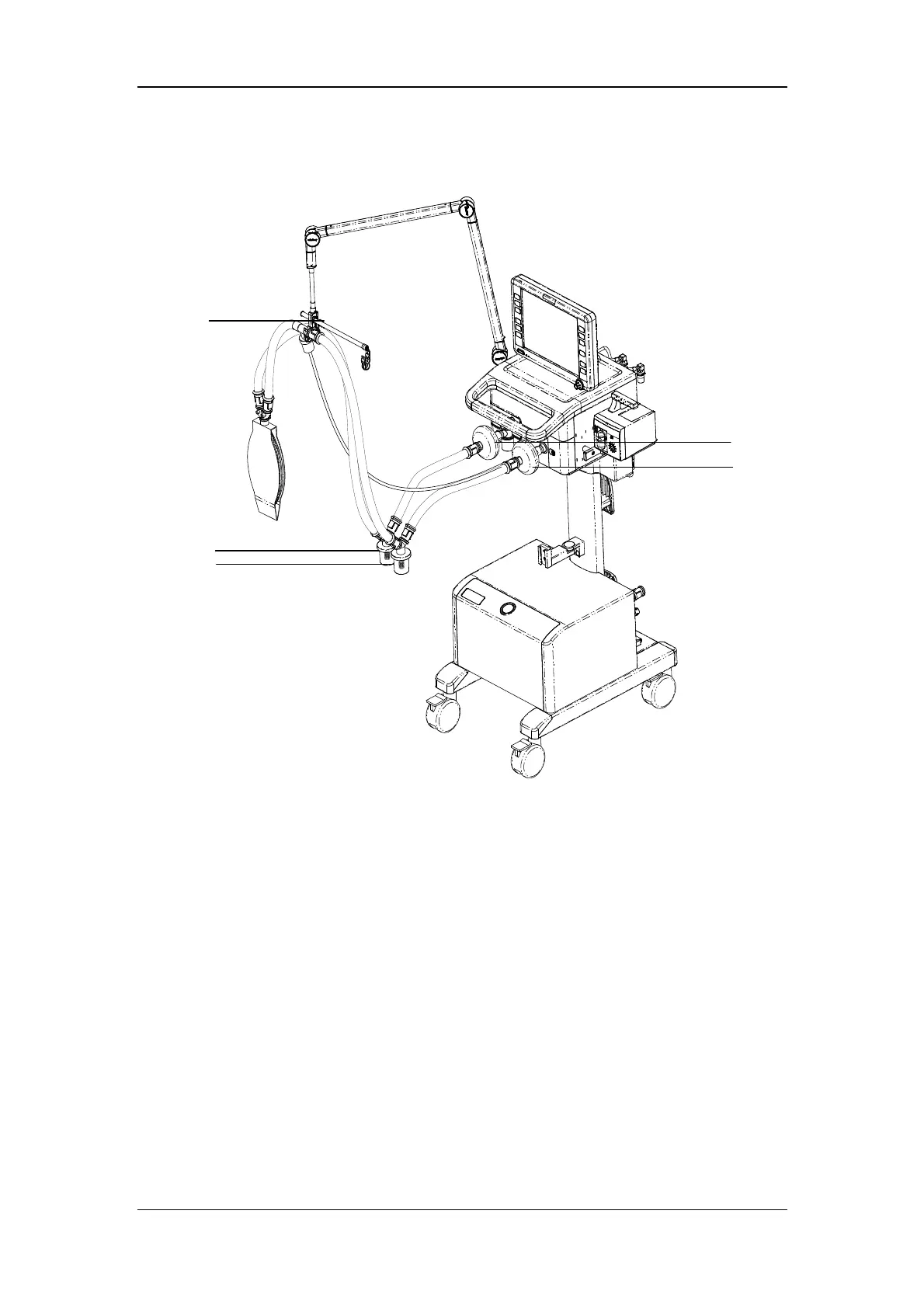

3.6 Install the Breathing Hoses
A. Inspiratory filter B. Expiratory filter
C. Inspiratory water trap D. Expiratory water trap
E. Support arm hook
1. Mount the filters onto the inspiratory and expiratory ports.
2. Connect the inspiratory filter to the water trap via the hose. Connect the other end of the
hose to the Y piece.
3. Connect the expiratory filter to the water trap via the hose. Connect the other end of the
hose to the Y piece.
4. Place the breathing hoses onto the support arm hook.
E
D
C
A
B
