3.7.2 Install the Humidifier onto the Pendant

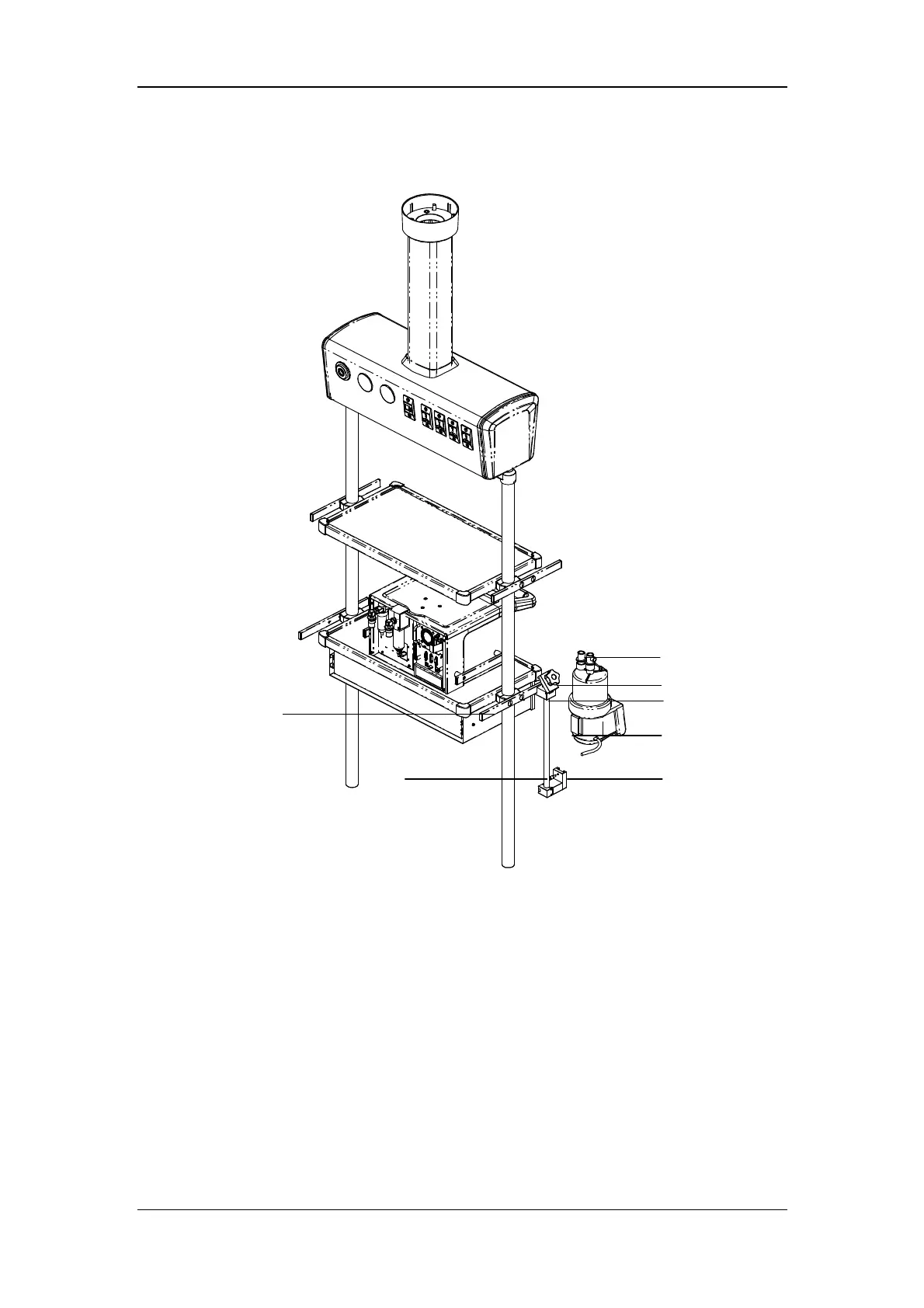

A. Humidifier B. Knob for fixing block C. Fixing block
D. Humidifier sliding wheel E. Humidifier bracket fixed seat F. Screw
G. Beam
1. Loosen the knob for fixing block. Put the fixing blocking onto the pendant beam.
2. Tighten the knob for fixing block.
3. Align the humidifier sliding wheel with the humidifier bracket fixed seat and slide in the
humidifier.
4. Tighten the screws.
5. Install the breathing hoses. For details, refer to steps 3 through 7 in 3.7.1.
