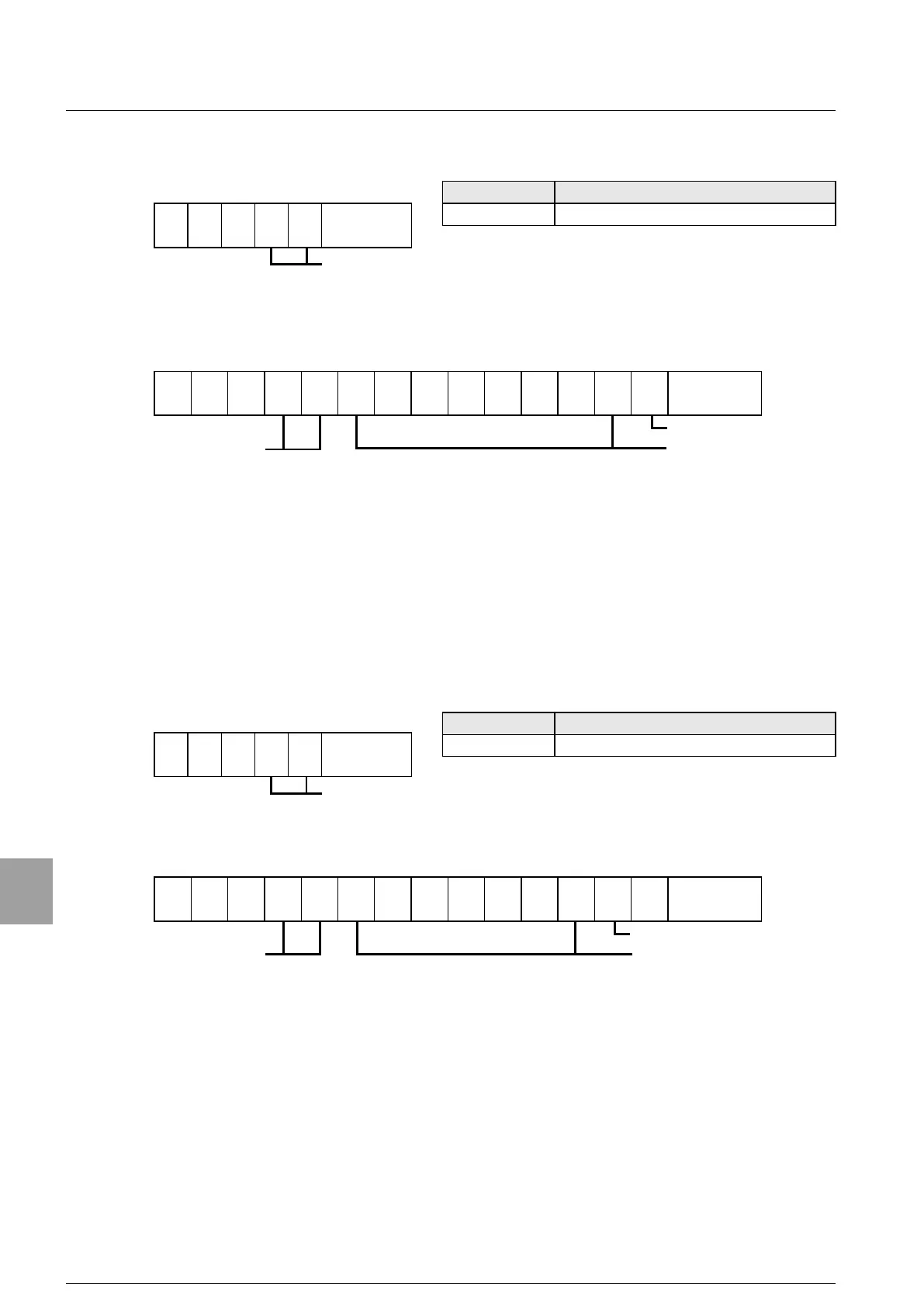

④ Reading out the condition 1 (Host → CSD-892-73)
2 4 6
@ 0 0 4 0
Terminator
Return (CSD-892-73 → Host)
2 4 6 8 10 12 14
@ 0 0 4 0 a b c d e f g h Terminator
a : STABLE [1] = ON, [0] = OFF
b : No use [0] = Fixed
c : TARE WEIGHT [1] = ON, [0] = OFF
d : GROSS value [1] = ON, [0] = OFF
e : NET value [1] = ON, [0] = OFF
f : ZERO [1] = ON, [0] = OFF
g : HOLD [1] = ON, [0] = OFF
h : ERROR [1] = ON, [0] = OFF
⑤ Reading out the condition 2 (Host → CSD-892-73)
2 4 6
@ 0 0 4 1
Terminator
Return (CSD-892-73 → Host)
2 4 6 8 10 12 14
@ 0 0 4 1 a b c d e f g h Terminator
a : NEAR ZERO [1] = ON, [0] = OFF
b : FULL FLOW/S1 [1] = ON, [0] = OFF
c : MEDIUM FLOW/S2 [1] = ON, [0] = OFF
d : DRIBBLE FLOW/S3 [1] = ON, [0] = OFF
e : OVER/S4 [1] = ON, [0] = OFF
f : OK/S0 [1] = ON, [0] = OFF
g : UNDER [1] = ON, [0] = OFF
h : FULL [1] = ON, [0] = OFF
Command No. Operation
40 Reading out the condition 1
Command No. Operation
40 Reading out the condition 1
Space
Condition
Command No.
Space
Condition
Command No.
Command No.
Command No.
116
USB (RS-232C)
