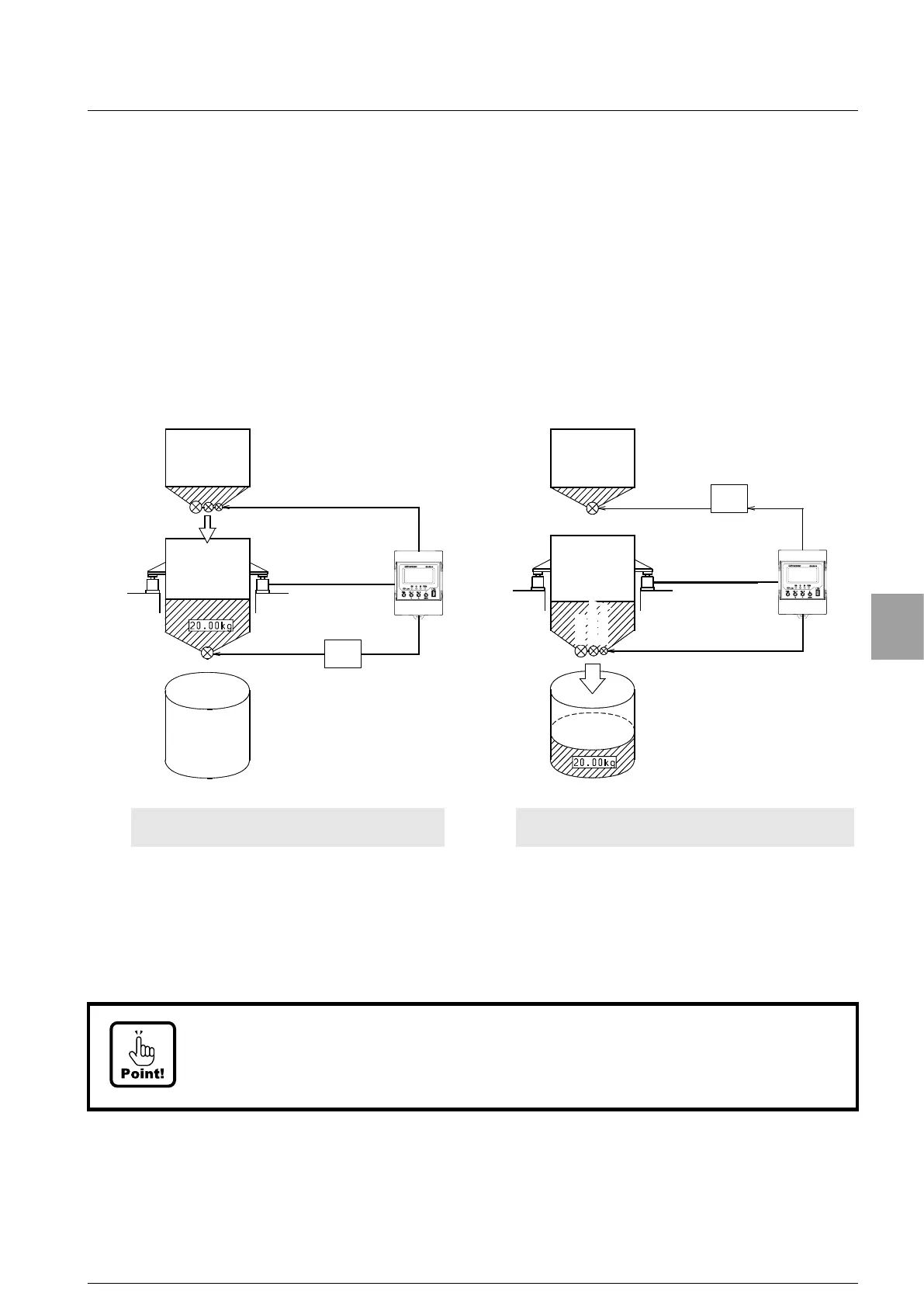

Measuring example by Discharge modeMeasuring example by Batch mode.
Batch output of Full, Medium and Dribble
Discharge gate
PLC
Programmable Logic Controller
Vessel
Vessel
Batch output of Full,
Medium and Dribble
Output of Full
Programmable Logic Controller
PLC
Full flow
Medium flow
Dribble flow
Batch gate
Supply gate
Measuring hopper
Measuring hopper
Discharge gate
Load cell
Load cell
11-2. Simple comparison mode
The simple comparison mode includes [Simple comparison batch mode] and [Simple
comparison discharge mode].
Please select the set value [0] in the setting of S function SF-01 to use the simple comparison
mode.
Also, please refer to [11-2. Simple comparison mode for the selection of [Batch mode] and
[Discharge mode].
The setting category of the simple comparison
mode and the example of The example of
Batch/Discharge are shown as follows:
• Please control the raw material provisioning to the measuring hopper while
observing the full amount output by PLC.
• When the gate control etc., are executed, PLC, etc., are required.
61
Setting of Comparator
