III

Front installation

Vertical

installationUpward installation

Installation on ceiling

■ Direction of installation

When you install it in the control panel, please set it up in the front on upward so that

the front panel that includes the display of this instrument may come forward

2. Installing the instrument

When you set up two or more devices, you can install on the same panel with no

clearance in between.

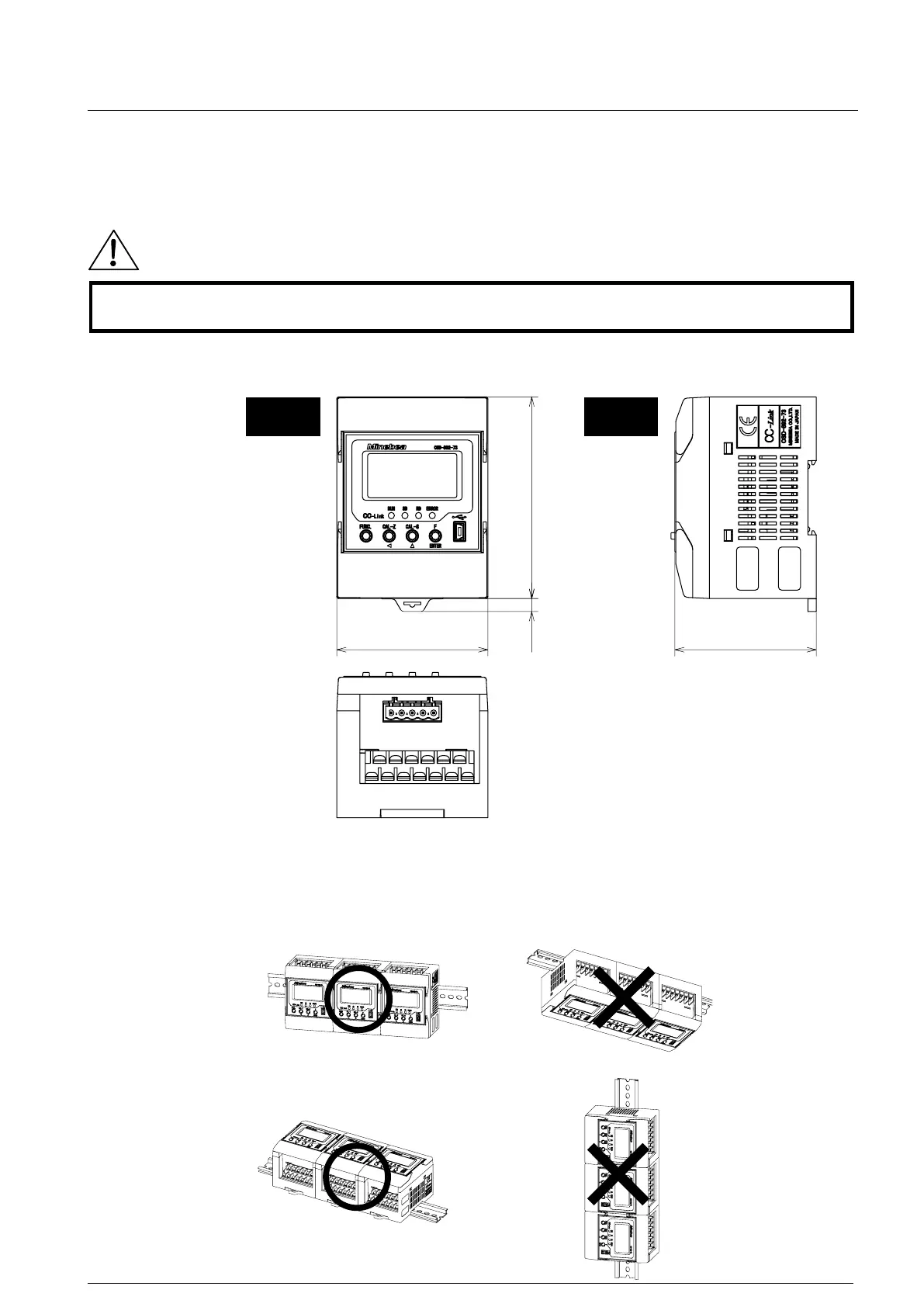

■ Outline dimensions

Front Side

Unit : mm

6.2 96

67.4

Caution

• Please secure and set up the space between this instrument and the device
