１
the display of becomes blinking.
By pushing key from the display of ,
At this time, ON/OFF condition of external control input
can be confirmed in the condition display section.
When each input terminal of external control input (at lower
terminal block) is ON, each condition display [1 ~ 3] lights on.
When ON is input after shortening between
COM.1 and INPUT2, [2] at condition display
section turns on.
2
After confirming the external control input, please push key.
displays, and the confirmation of external control
input is finished.
Condition display
[1] Light on
[2] Light on
[3] Light on
Pin No.
INPUT1
INPUT2
INPUT3
Confirmation of external output
Confirmed by
ON/OFF of
external output
Example
ENTERENTER
FF
ENTERENTER
FF
▲
１
the display of becomes blinking.
By pushing key from the display of ,
to confirmation of
load cell output
Condition display
1 lights on.
2 lights on.
3 lights on.
4 lights on.
5 lights on.
Pin No.
OUTPUT1
OUTPUT2
OUTPUT3
OUTPUT4
OUTPUT5
At this time, by pushing key and key, the external
output (at Lower terminal block) corresponding to the change
in condition display [OUT1 ~ OUT5] is turned on.
When OUTPUT3 is turned on by the above mentioned operation, [3] in the
condition display section lights on, and ON is output from lower terminal
block OUTPUT3 by the open electron collector output.
Example
2
Please push key after confirming the external control
output.
displays, and the confirmation of external control
output is finished.
ENTERENTER
FF
ENTERENTER
FF
CAL-ZCAL-Z
CAL-SCAL-S

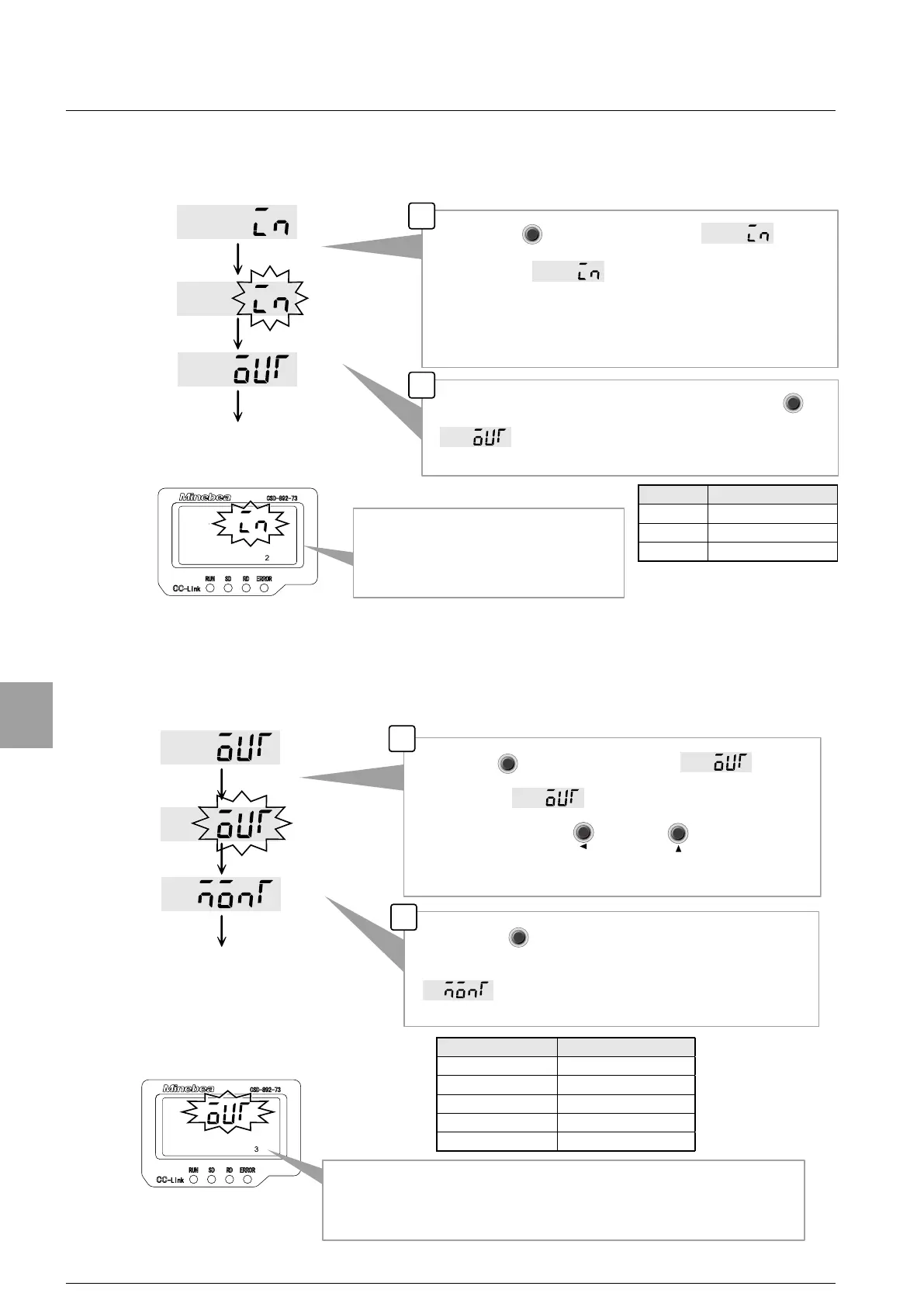

13-4. Confirmation of external control input
13-5. Confirmation of external control output
76
Check Mode
