General
① Cover-1 and -2 of terminal block
This is the protection cover of upper / lower terminal blocks.
Please connect after opening the cover when you wire to the terminal block.
② Terminals for power supply and external control I/O (Lower part terminals)
This terminal block is used for the connection with DC24V power supply, grounding and external
control equipment.
The external control I/O can use
the input up to 3 points and the output up to 5 points at maximum.
③ Terminals for load cell (Upper part terminals)
4 units of strain gage based transducer (350 Ω ) can be connected in parallel.
④ CC-Link interface connector
This connects to PLC with CC-Link connector of accessory.

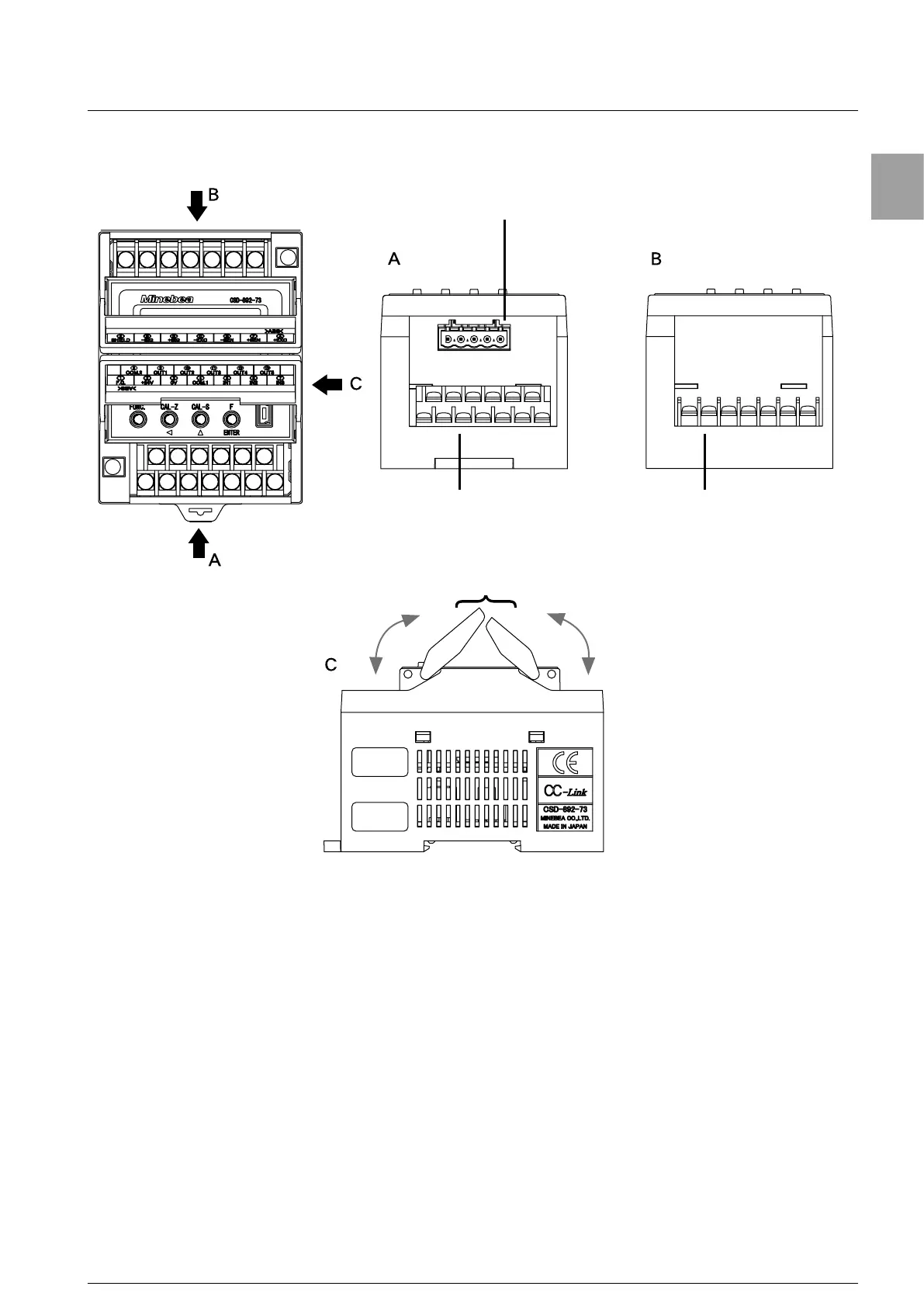

1-2. Upper and lower part of front panel
Ӵ
CC-Link interface connector
ӳ
Terminals for load cell
(Upper part terminals)
ӱ
Cover-1 and -2 of terminal block
Ӳ
Terminals for power supply and
external control I/O
(Lower part terminals)
