General

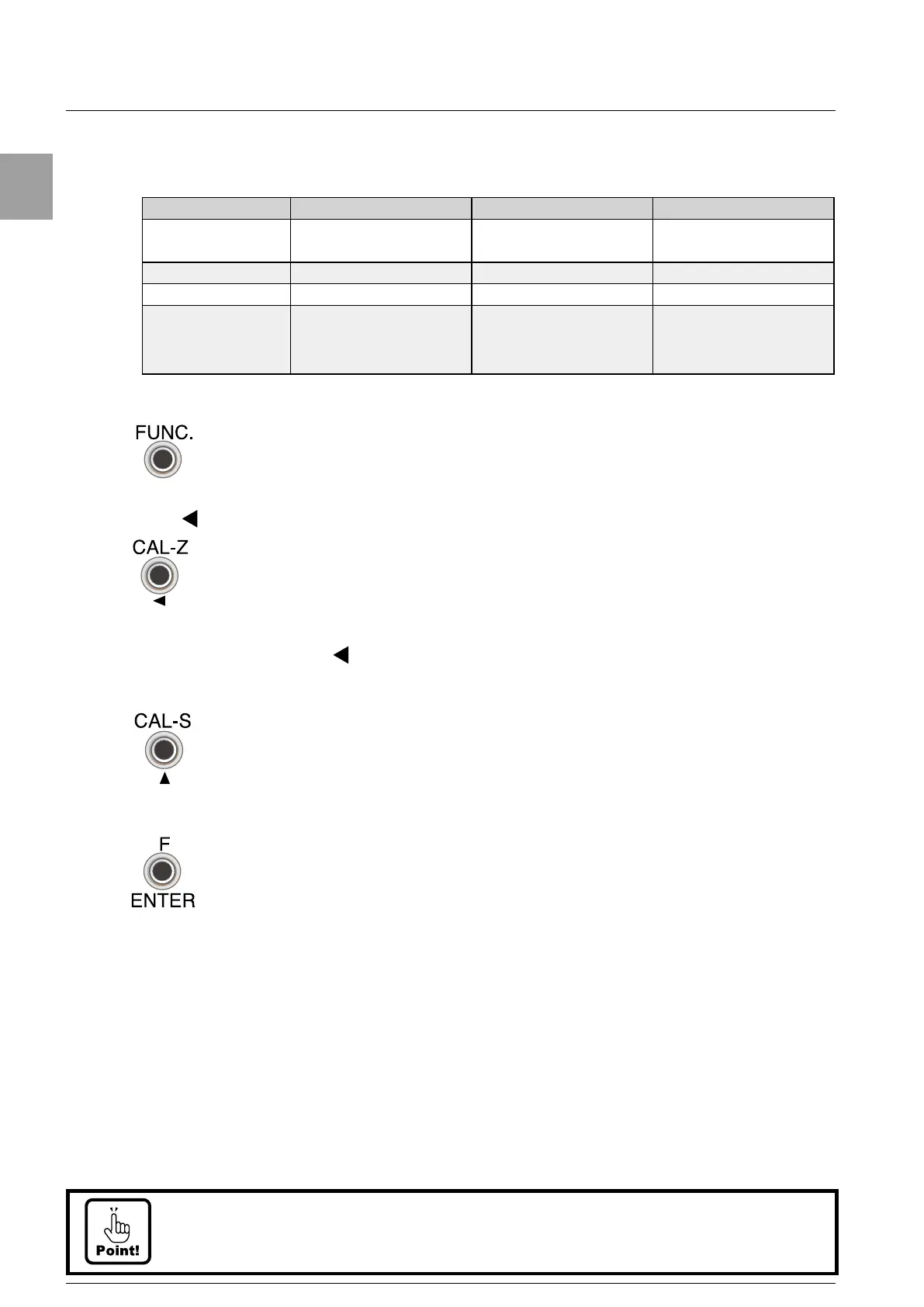

④ Status LED
The communication of CC-Link is expressed with four LED.
Name of LED Turn on Turn off Blinking
RUN ・ Normal ・During reset
・No communication
-
SD ・Transmitting - -
RD ・Receiving - -
ERROR ・Abnormal setting
・CRC error occurs
・ Trouble
・Normal ・When the set is
changed.
⑤ FUNC. key
Enter into the function mode, or change each status to the former status set in
advance.
Shifts to Calibration setting mode by pushing for 2 seconds or more.
⑥ CAL-Z/
key
Carry up the setting value.
Shifts to ZERO calibration mode of a simple calibration by pushing for 2 seconds
or more. Also shifts to calibration lock mode of a simple calibration.
Also shifts to calibration lock mode of a simple calibration by pushing for 2 seconds
or more CAL-Z/
and CAL-S/ ▲ key at the same time.
⑦ CAL-S/ ▲ key
Set value increment. Shifts to SPAN calibration mode of a simple calibration by
pushing for 2 seconds or more.
⑧ F/ENTER key
Resister the setting value, and execute function set in F/ENTER key.
(Selectable from None, Hold, ZERO set, ZERO clear, Tare weight cancellation,
Tare weight clear, Changeover of gross /net value.
Shift to the setting mode of compar
ator, Check the CC-Link station number.)
※ Default function has set to Check the CC-Link station number.
⑨ Connector for USB interface (mini-USB connector type-B)
USB interface is used for reading the set data from host and writing the parameter
details set for the measurement and calibrate.
The subject driver installation is needed.
Please download from Minebea's homepage, and install it to the PC.
Add
itionally, EzCTS_USB1 (Optional software for PC) is convenient for reading,
writing, saving and printing the setting data by connecting with PC.
• Please refer to [4-10. Simple calibration] for the details.
