General
1. Each Name and Function
① Unit display section
Display the setting unit of weighing.
② Load display section
Display the Gross/Net, Overload or Error.
In the various setting mode, display the condition and the setting value.
③ Condition display section
Display the condition of CSD-892-73.
ZERO Light on when the zero calibration is processed.
SPAN Light on when the span calibration is processed.
mV/V Li
ght on when mV/V value is displayed, like in the calibration by the
numeric input, or in monitoring the output value from load cell.
STABLE Light on when the weighing data is in stable condition.
TARE Light on when the tare weight cancellation is processed.
GROSS Light on when the display of weighing is set to the gross value.
NET Light on when the display of weighing is set to the net value.
CZ Li
ght on when the displayed load value is zero, and within 1/4 of the
scale intervals.
LOCK Light on when the key lock is effective.
HOLD Light on when the holding is effective.
ERROR Light on when the error signal is output.
OUT1 ~ 5 The number lights on when the corresponding external output is turning on.

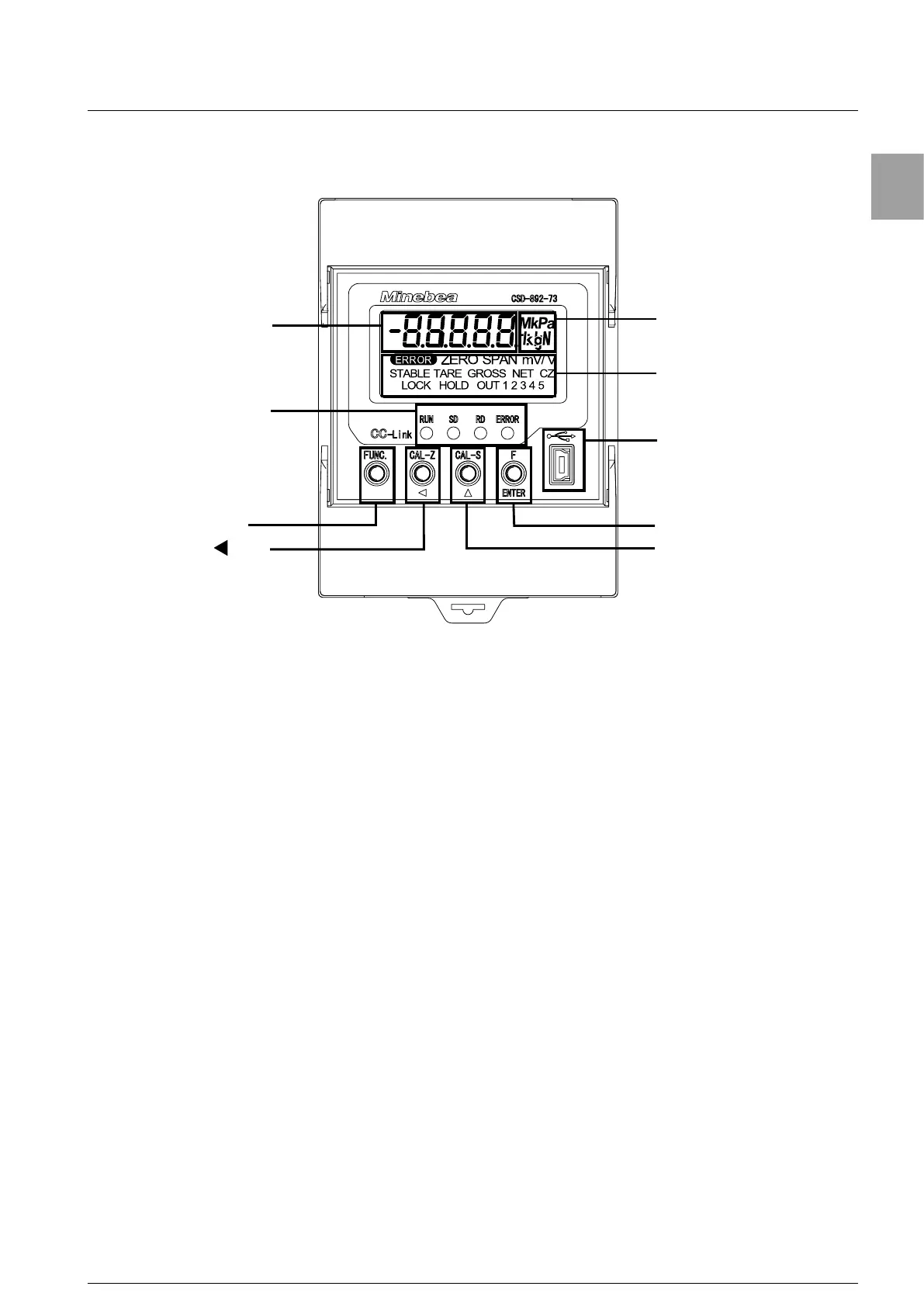

1-1. Front panel
① Unit display
③ Condition display
⑨ USB interface
connector
⑧ F/ENTER key
⑤
FUNC. key
⑦ CAL-S/ ▲ key
⑥ CAL-Z/
key
② Load display
④ Status LED
