14-6. Calibration by CC-Link interface
When 4(four) and 2(two) stations are occupied, the calibration by the CC-Link interface is

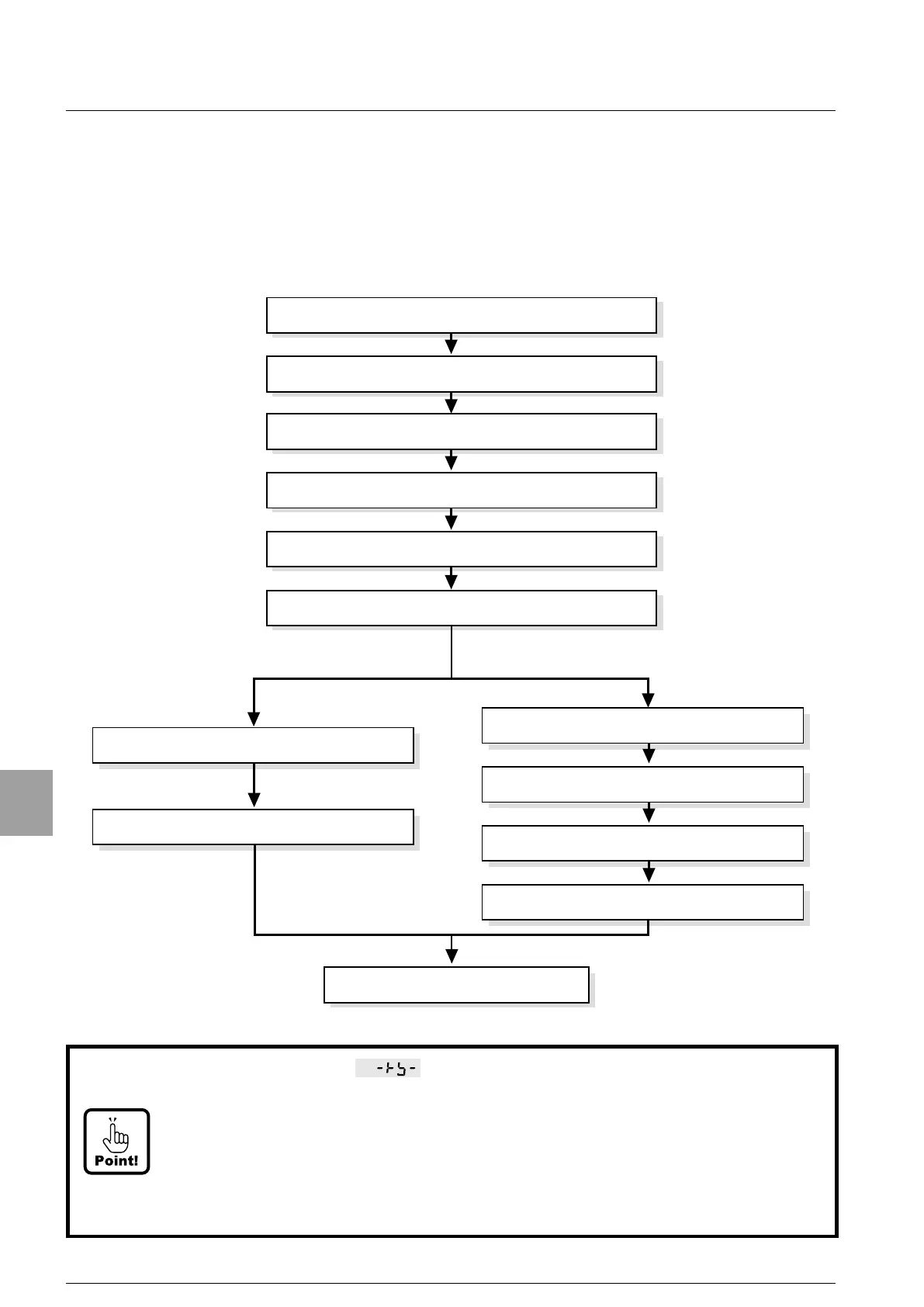

possible by using the general command request (Request 2). In this calibration, please set
according to the following flow charts. Each item of the flow chart corresponds to the item in
[4-6]. Please refer to [4-6.] for the details.
③ Setting of Decimal point display position (4-6. Step 3)
④ Setting of Scale interval (4-6. Step 4)
①
Change to Calibration mode by communication (4-6. Step 1)
② Setting of Unit (4-6. Step 2)
⑤ Setting of Measuring value (4-6. Step 5)
⑥ Setting of mass of weight (4-6. Step 6)
In the calibration by numeric input
(Electrical calibration)
In the calibration by actual weight
(Calibration by actual weight)
⑬ Calibration is finished (4-6. Step 9)
⑦ Confirmation of stable at ZERO (4-6. Step 7)
⑧ ZERO
calibration by measuring value (4-6. Step 7)
⑩ Confirmation of stable of SPAN (4-6. Step 8)
⑪ SPAN calibration by weight.
⑨ ZERO calibration by numeric input (4-6. Step 7)
⑫ SPAN calibration by numeric input (4-6. step 8)
• CSD-892-73 displays during the calibration by communication.
• Please refer [14-5-1. 4) ④ Error assistance code] for the details of error code for the
calibration by communication.
• When the calibration is compulsorily finished, all the data returns to the condition
before the calibration without executing the registration.
• Please register the data for the calibration with the weight after confirming the stable
condit
ion without fail.
100
CC-Link
To Next Page
