50
Setting of Function
Ex. The data width to which the stabilization filter is executed is selected by function F-06.
The data width of stabilization filter for set value [n] is obtained in the display
conversion by the following formula.
[Data width of stabilization filter]=[Set value(n) of F-06]x[Scale interval]
When the setting of function F-06 is [0010] (1D) and the scale interval is [D=05], this will
be as follow
s:
[Data width of stabilization filter] = 1 x 5 = 5D

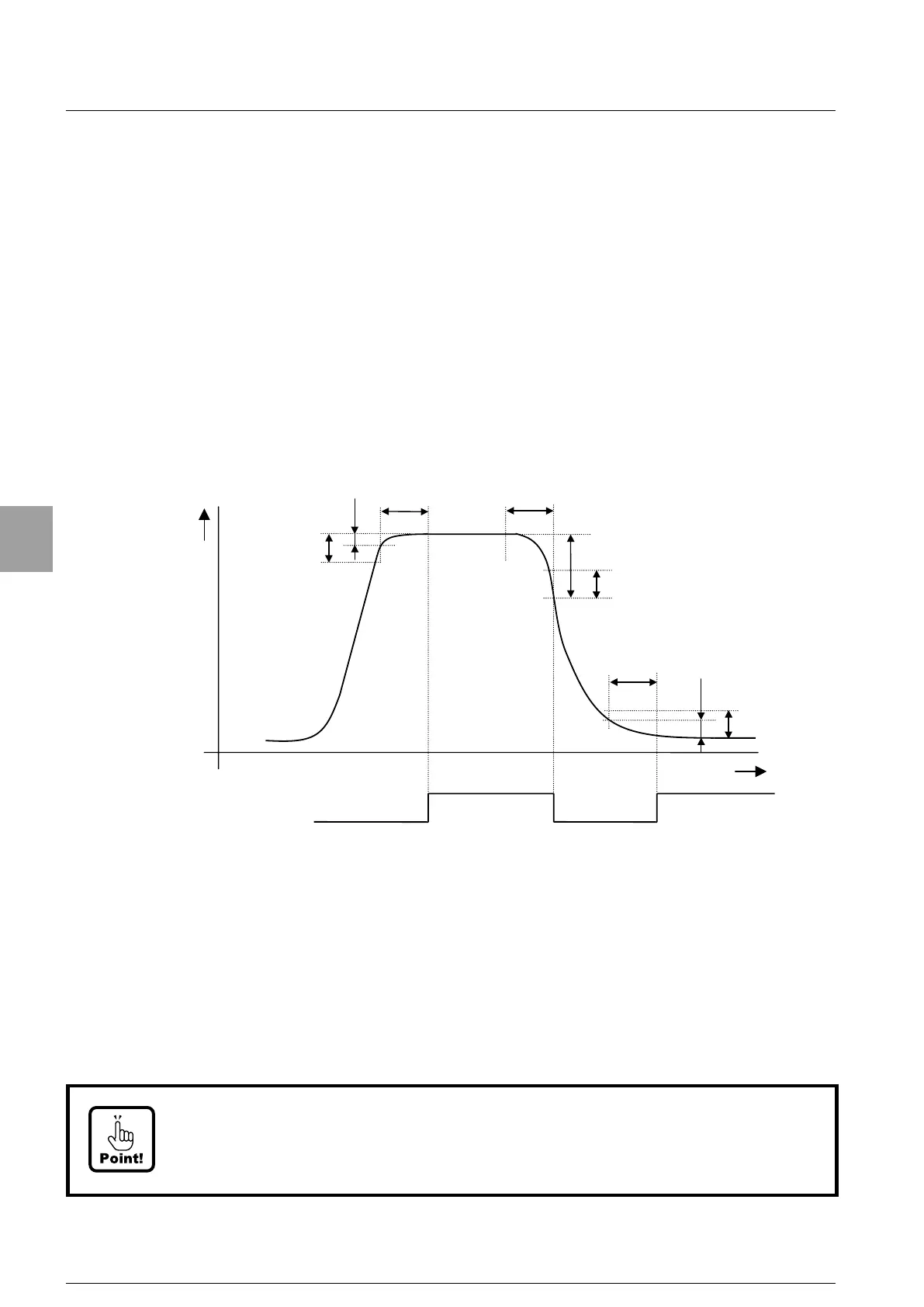

Therefore, the stabilization filter set by function F-05 becomes effective when the
change width of load display is within the value set by function F-06, and also that
condition continues over the time set by function F-07.
stabilization filter
Data width of
Stabilization filter
ON
OFF
stabilization filter
Time width of
stabilization filter
Data width of
Stabilization filter
Data width of
Stabilization
filter
Digital filter for
stabilization filter
Change width of load
Change width of load
Change width of load
Time
Display
• When the digital filter is set by function F-01, the moving average process executes
[Moving average of stabilization filter(F-05)] after executing [Moving average of
digital filter (F-01)].
