4
SETUP AND PROCEDURES BEFORE OPERATION
4.5 Intelligent Function Module Switch Setting
4 - 13
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND
PROCEDURES
BEFORE OPERATION
5
UTILITY PACKAGE
(GX CONFIGURATOR-
AD)
6
PROGRAMMING
7
ONLINE MODULE
CHANGE
8
TROUBLESHOOTING
(2) Operating procedure
Start the settings with GX Developer I/O assignment setting window.

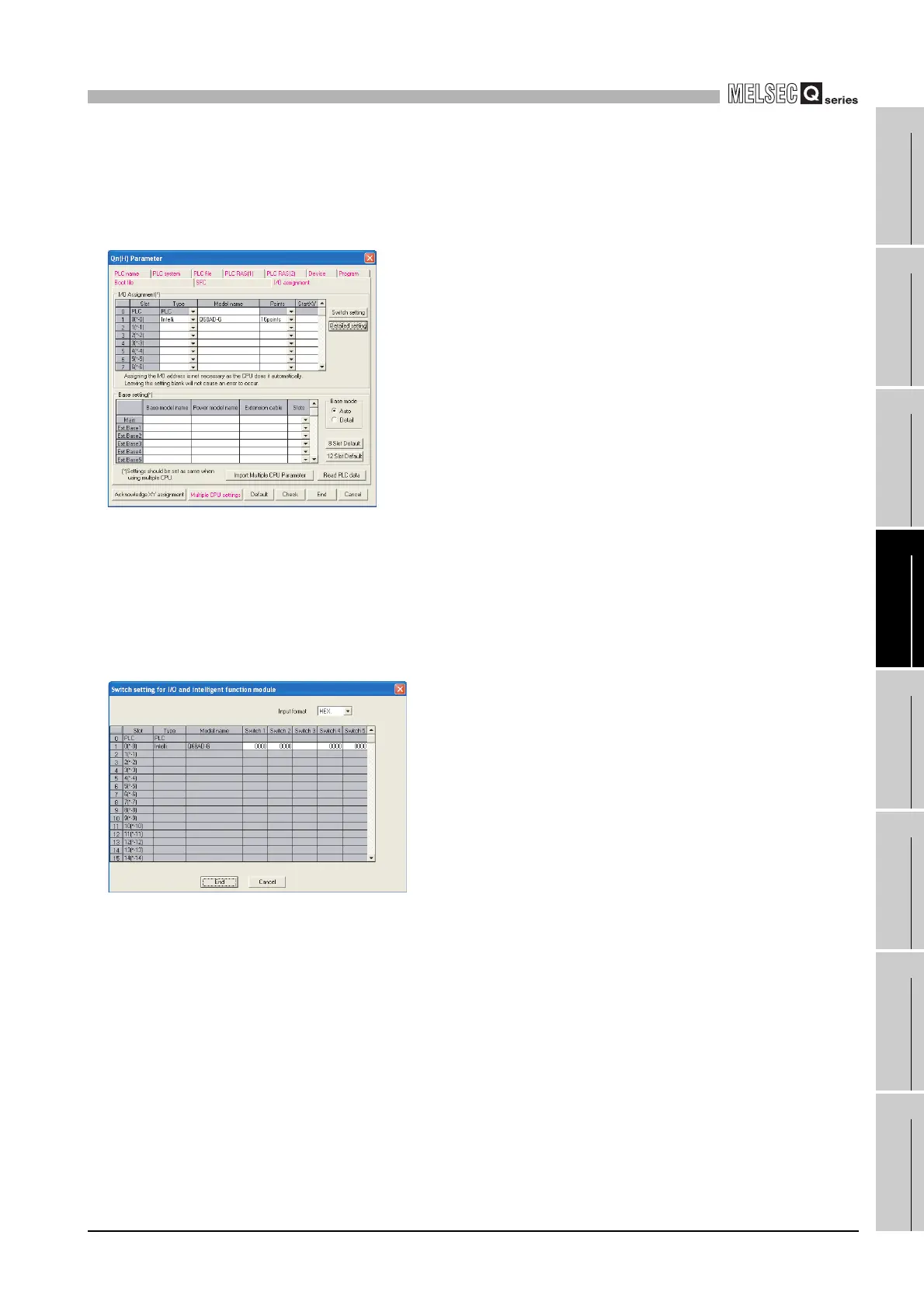

(a) I/O assignment setting window
Set the following for the slot in which the A/D
converter module is mounted.
The type setting is required; set other items as
needed.
Type
Model name
Points
Start
Detailed
setting
:
:
:
:
:
Select "intelli."
Enter the module model name.
Select 16 points.
Enter the start I/O number for
the A/D converter module.
Specify the control PLC for the
A/D converter module.
It is unnecessary to set the
"Error time output mode" or "H/
W error time PLC operation
mode" since these settings are
invalid for the A/D converter
module.
(b) Switch setting for intelligent function module win-
dow
Click on [Switch setting] on the I/O assignment
setting window to display the window shown at
left, then set switches 1 to 5.
The switches can easily be set if values are
entered in hexadecimal. Change the entry format
to hexadecimal and then enter the values.
To Next Page
