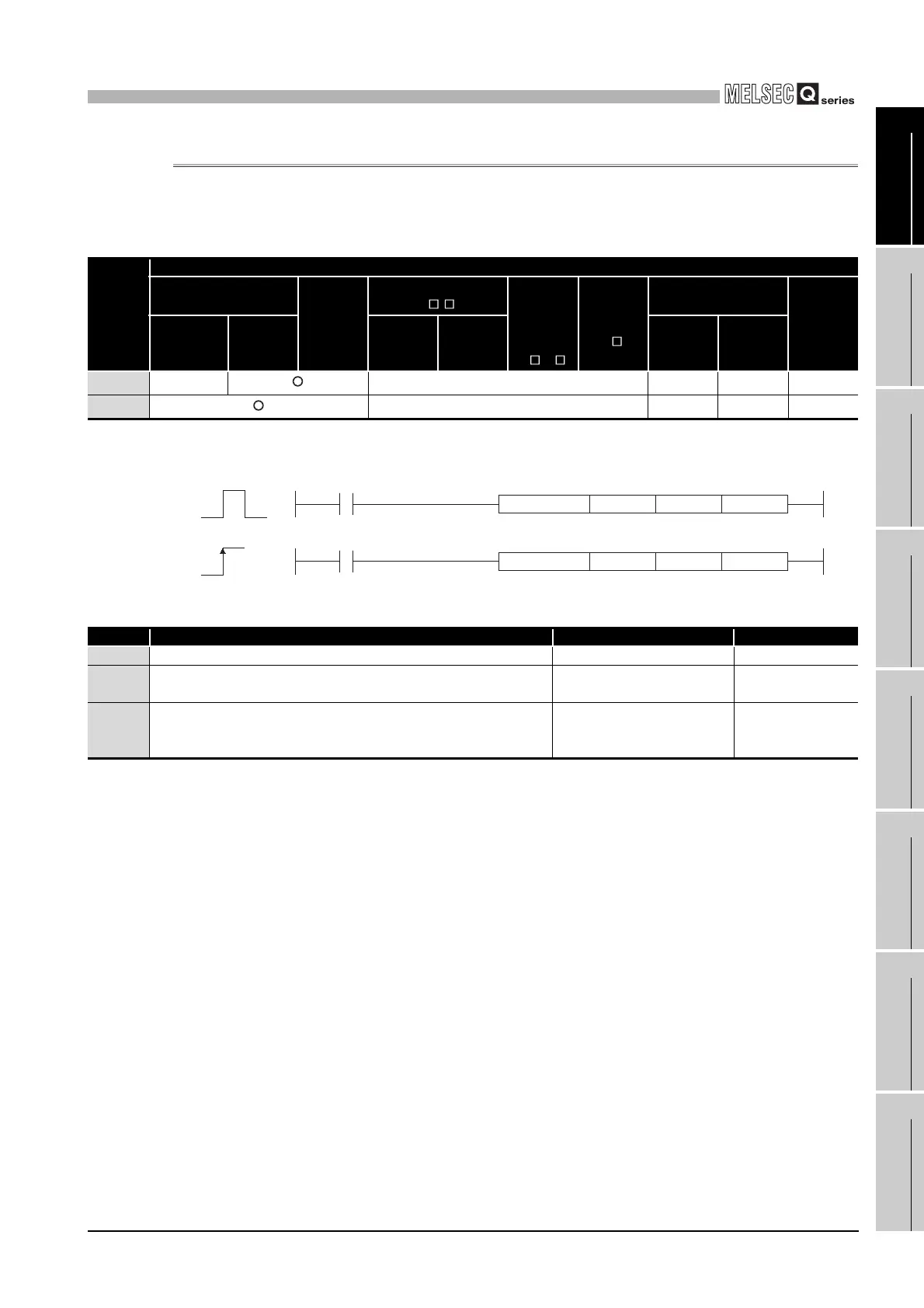

Appendix 1.3 G(P).OGSTOR
Restores the offset/gain values of the user range setting stored in the CPU to the A/D con-
verter module.
*1 When executing the G(P).OGLOAD instruction, specify the device designated in (S).
Do not change the data read with the G(P).OGLOAD instruction.
If it is changed, normal operation cannot be guaranteed.
Set data
Usable devices
Internal device
(System, user)
File
register
Link direct device
J\
Intelligent
function
module
device
U\G
Index
register
Z
Constant
Other
Bit Word Bit Word K, H $
(S) — — — — —
(D) — — — —
Set data
Set data Description Setting range Data type
Un Start I/O number of the module 0 to FEH Binary 16 bits
(S)
*1
Start number of the device in which control data is stored.
Within the range of the
specified device
Device name
(D)
Device that is turned ON 1 scan on completion of dedicated instruction
processing.
(D) + 1 also turns ON at an abnormal completion.
Within the range of the
specified device
Bit
G.OGSTORG.OGSTOR
GP. OGSTOR
Un (D)
(D)
(S)
(S)
Un
GP.OGSTOR
Command
[Execution
condition]
[Instruction
symbol]
Command
