UTILITY PACKAGE (GX Configurator-AD)
5.3 Utility Package Operation
5.3.3 Starting the intelligent function module utility
5 - 11
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND PROCEDURES BEFORE OPERATION
5
UTILITY PACKAGE (GX CONFIGURATOR- AD)
6
PROGRAMMING
7
ONLINE MODULE CHANGE
8
TROUBLESHOOTING

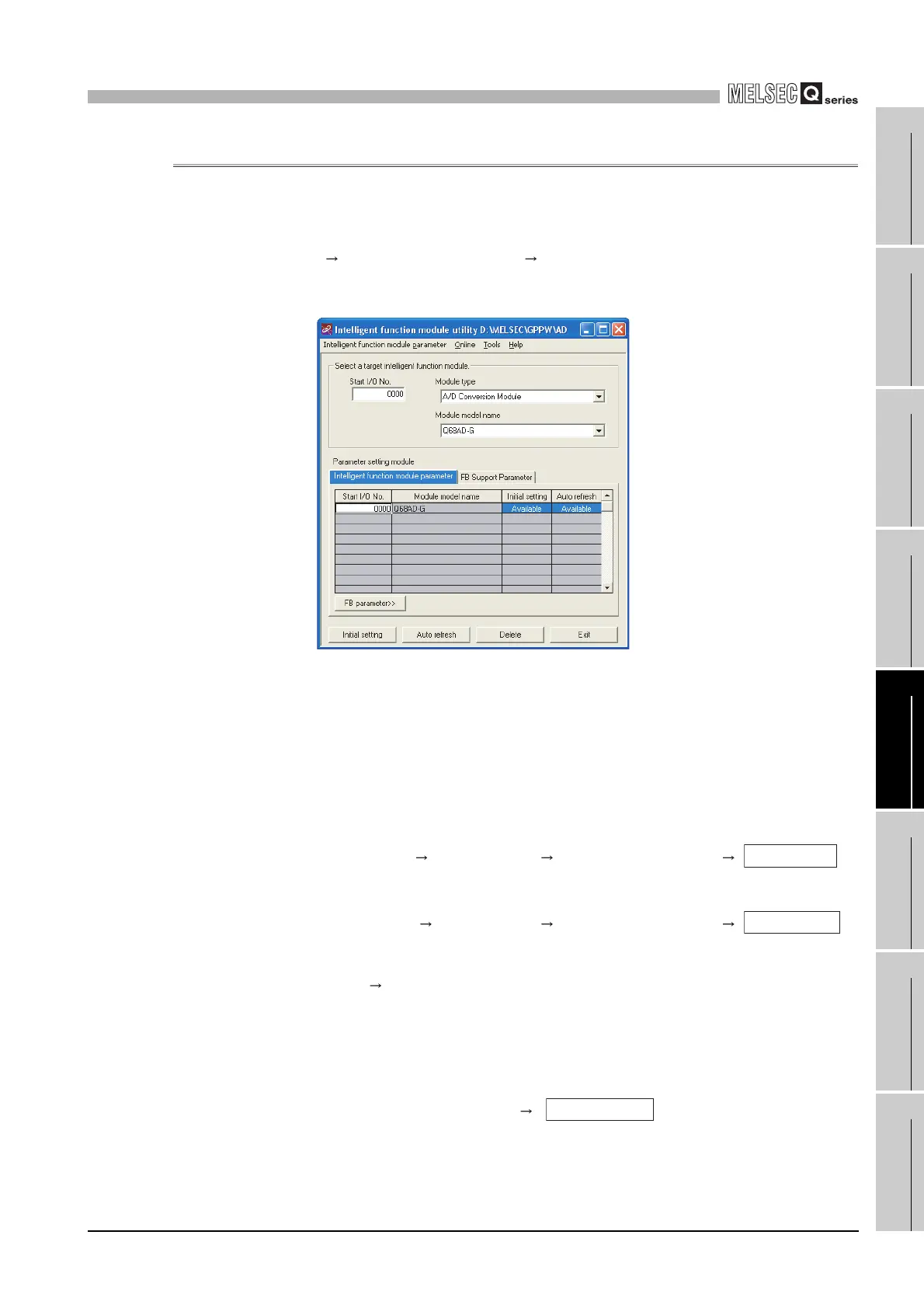

5.3.3 Starting the intelligent function module utility
[Operating procedure]
Intelligent function module utility is started from GX Developer.
[Tools] [Intelligent function utility] [Start]
[Setting window]
Display when the <<FB support parameter>> tab is selected
[Explanation of items]
(1) Activation of other windows
Following windows can be displayed from the intelligent function module utility win-
dow.
Common operations to the <<Intelligent function module parameter>> tab and
<<FB support parameter>> tab
(a) Initial setting window
"Start I/O No.
*1
" "Module type" "Module model name"
(b) Auto refresh setting window
"Start I/O No.
*1
" "Module type" "Module model name"
(c) Select monitor/test module window
[Online] [Monitor/Test]
*1 Enter the start I/O No. in hexadecimal.
On the <<FB support parameter>> tab
(a) Start-up of the FB conversion window
<<FB support parameter>> tab
For details, refer to Section 5.7.
Initial setting
Auto refresh
FB conversion
