ONLINE MODULE CHANGE
7.3 Online Module Change Procedure
7.3.4 When user range setting is used and initial setting was made with GX Configurator-AD (other system
7 - 20
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND PROCEDURES BEFORE OPERATION
5
UTILITY PACKAGE (GX CONFIGURATOR- AD)
6
PROGRAMMING
7
ONLINE MODULE CHANGE
8
TROUBLESHOOTING

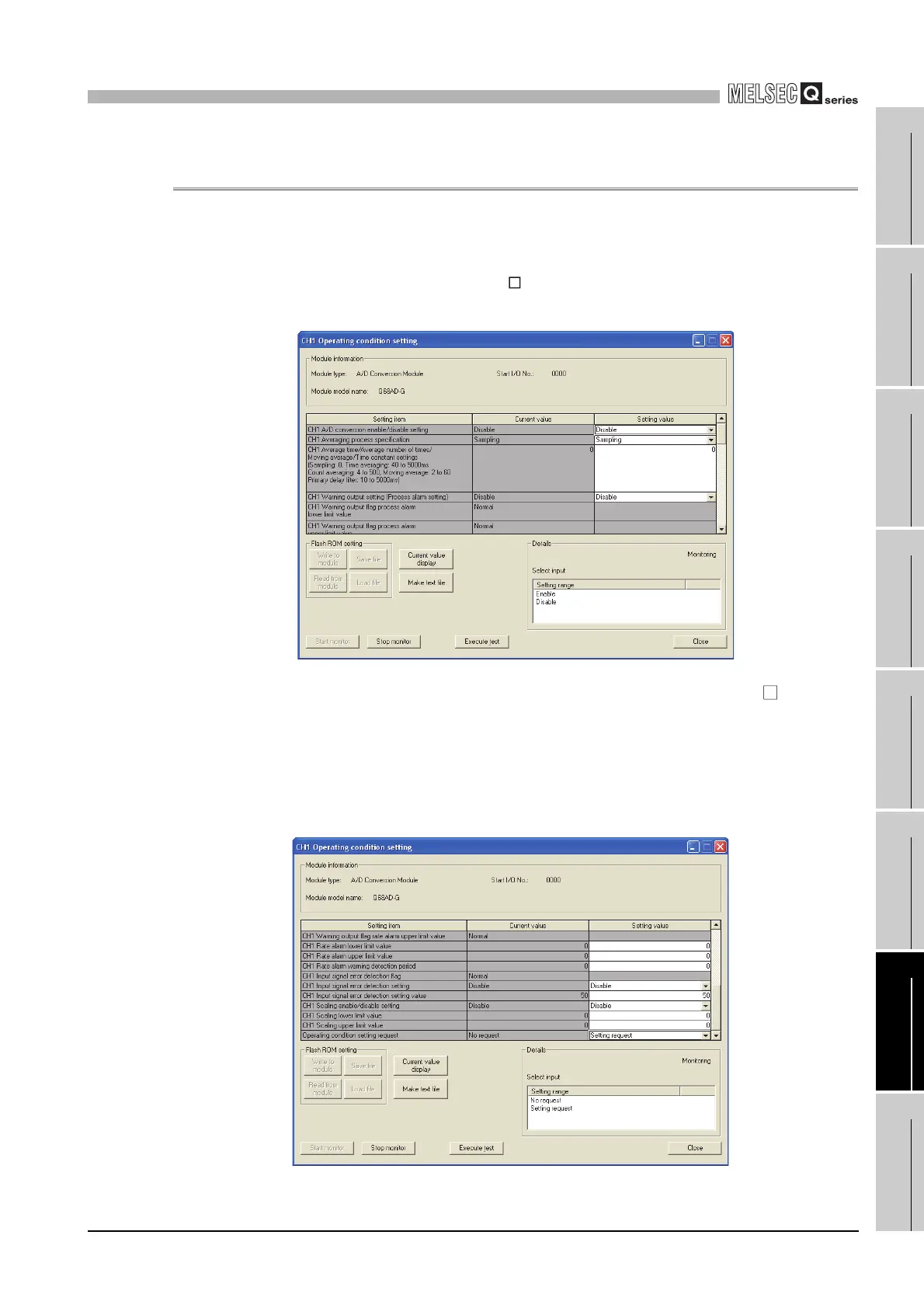

7.3.4 When user range setting is used and initial setting was made
with GX Configurator-AD (other system is unavailable)
(1) Conversion disable
(a) On the Operating condition setting window of GX Configurator-AD, set "Disable"
in the Setting value field of CH A/D conversion enable/disable setting, and click
the [Execute test] button.
(b) After making sure that the indication in the Current value field of CH A/D
conversion enable/disable setting is "Disable", change the Setting value field of
Operating condition setting request to "Setting request", and click the [Execute
test] button to stop conversion.
Monitor the A/D conversion completion flag (Un\G10) and confirm that conversion
has stopped.
