2.2 Precautions on System Configuration
2
SYSTEM CONFIGURATION
2.2 Precautions on System Configuration
(1) When using the A/D converter module with Redundant CPU
(a) Dedicated instruction
The dedicated instruction cannnot be used.
(b) GX Configurator-AD connection
GX Configurator-AD cannot be used when accessing Redundant CPU via an
intelligent function module on an extension base unit from GX Developer.
Connect a personal computer with a communication path indicated below.

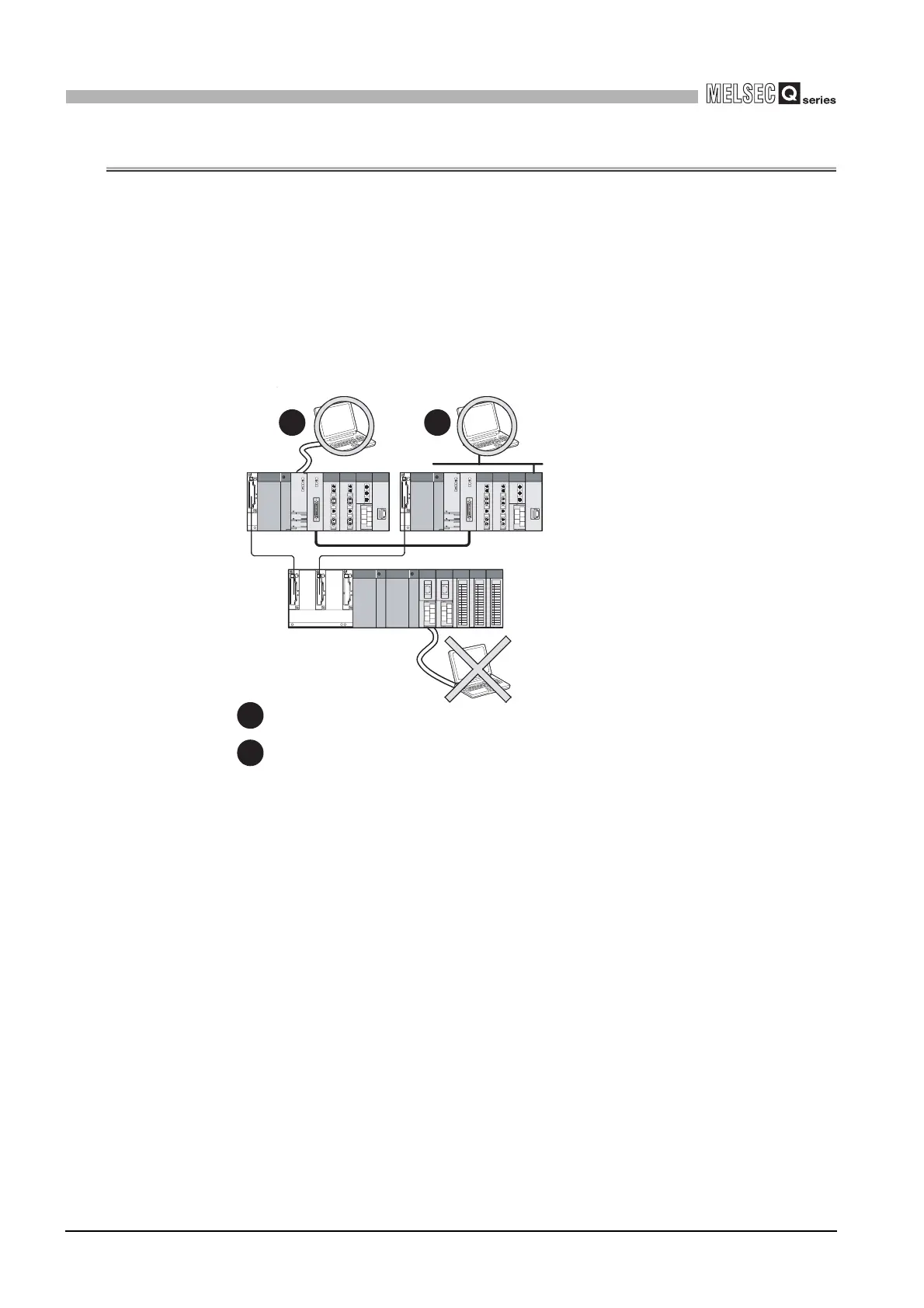

Main base unit
Extension base unit
1 2
1
2
Connection through an intelligent function module on the main base unit
(Through Ethernet module, MELSECNET/H module, or CC-Link module)
Direct connection to use the CPU
(GX Configurator-AD cannot be used.)
