APPENDIX
App - 2
APPENDIXINDEX

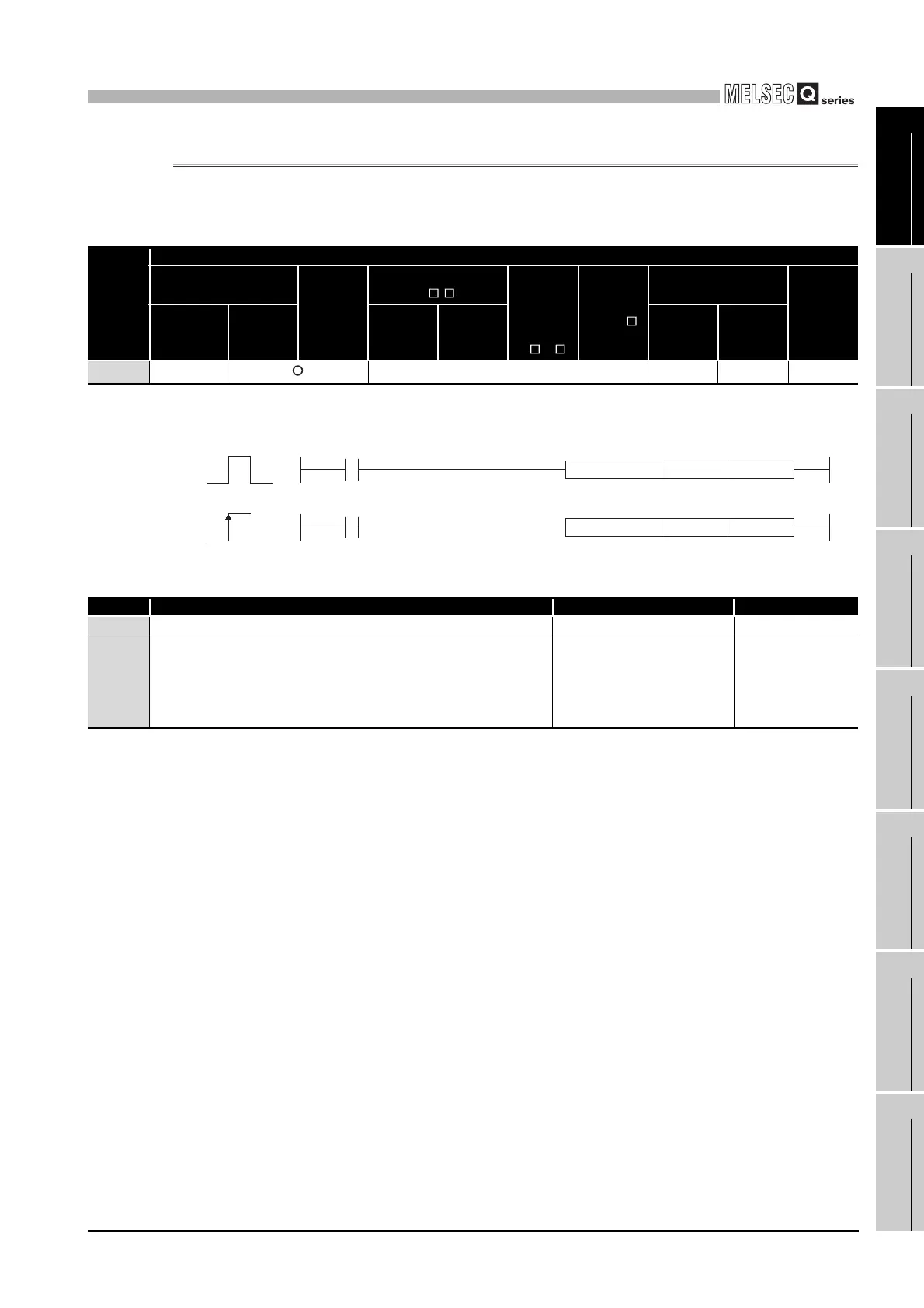

Appendix 1.1 G(P).OFFGAN
Switches the mode of the A/D converter module. (Normal mode to offset/gain setting
mode, offset/gain setting mode to normal mode)
(1) Function
Switches the mode of the A/D converter module.
• Normal mode to offset/gain setting mode (the offset/gain setting mode flag (XA)
turns ON)
• Offset/gain setting mode to normal mode (the offset/gain setting mode flag (XA)
turns OFF)
Set data
Usable devices
Internal device
(System, user)
File
register
Link direct device
J\
Intelligent
function
module
device
U\G
Index reg-
ister Z
Constant
Other
Bit Word Bit Word K, H $
(S) — — — — —
Set data
Set data Description Setting range Data type
Un Start I/O number of the module 0 to FEH Binary 16 bits
(S)
Mode switching
0: Switching to normal mode
1: Switching to offset/gain setting mode
The setting of any other value results in "switching to offset/gain setting
mode".
0 ,1 Binary 16 bits
Command
[Execution
condition]
[Instruction
symbol]
G.OFFGAN
Command
GP.OFFGAN
G.OFFGAN Un
(
S
)
GP.OFFGAN
(
S
)
Un
To Next Page
