5.6.2 Offset/gain setting operation
Perform the offset/gain setting operation in the following sequence.
(1) Switch to the offset/gain setting window

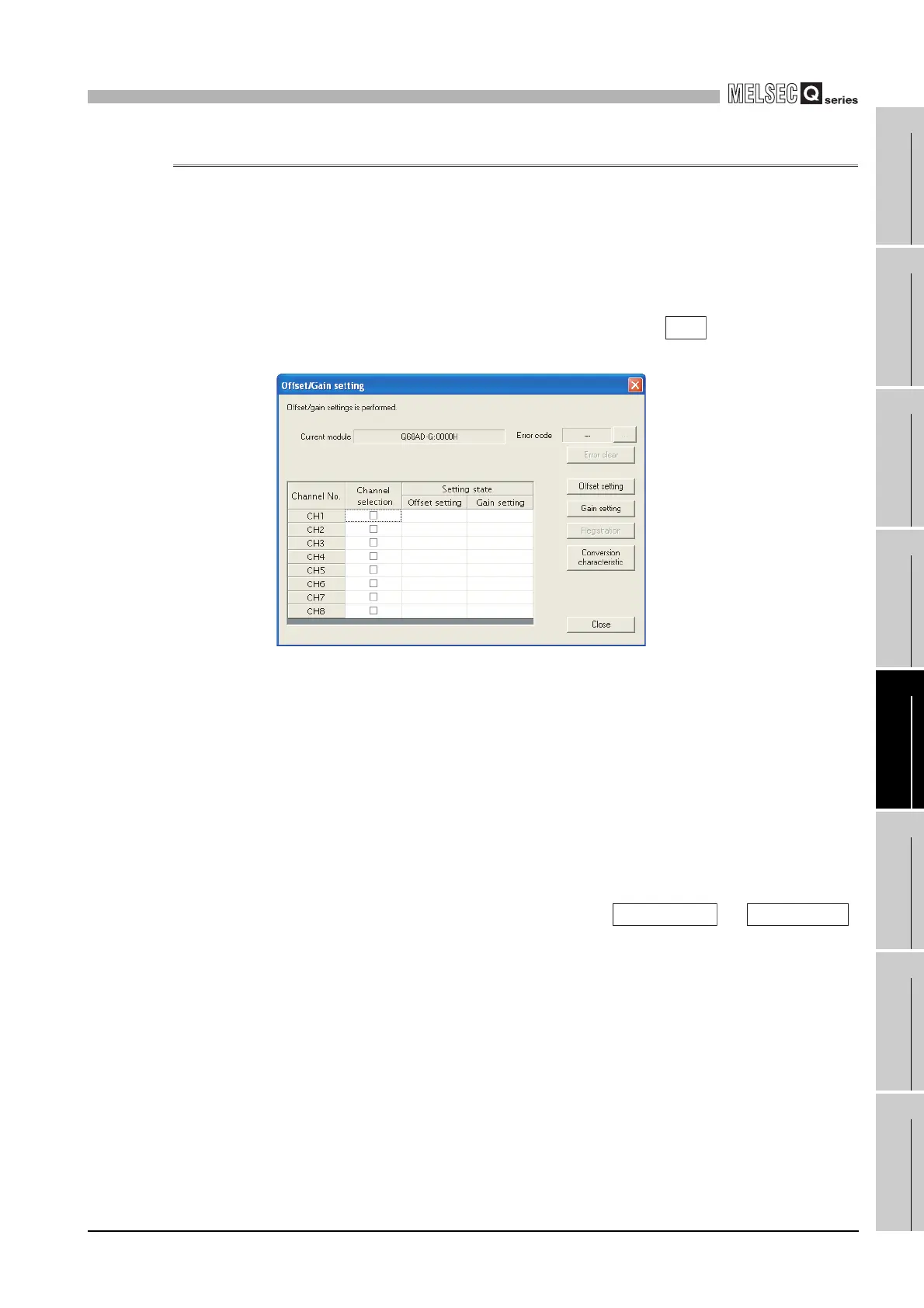

Perform the operation in Section 5.6.1 to display the offset/gain setting window.
At this point, a dialog box to confirm the transition of module’s operation mode (normal
mode -> offset/gain setting mode) is displayed. Click the button to transit to
the offset/gain setting mode.
(2) Specify channels
Place check marks in "Channel selection" column to specify the channels for each of
which the offset or gain setting is to be made.
(3) Apply current/voltage
Apply current or voltage to the module. Note that "Current" only is allowed for the
Q66AD-DG.
(4) Execute offset/gain setting
For each of the channels specified in (2), click the or
button to execute respective setting.
Yes
Offset setting
Gain setting
