3 - 29
3.2 Function List
3.2.5 Conversion starting time setting function (Q66AD-DG only)
3
SPECIFICATIONS
3.2.5 Conversion starting time setting function (Q66AD-DG only)
(1) As the A/D conversion starting time, set the "time necessary from when the used
2-wire transmitter powers on until its output stabilizes".
This setting allows A/D conversion processing to be started as soon as the output of
the 2-wire transmitter stabilizes.
(2) Set the time to the CH Conversion starting time setting (for 2-wire transmitter)
(Un\G78 to Un\G83).

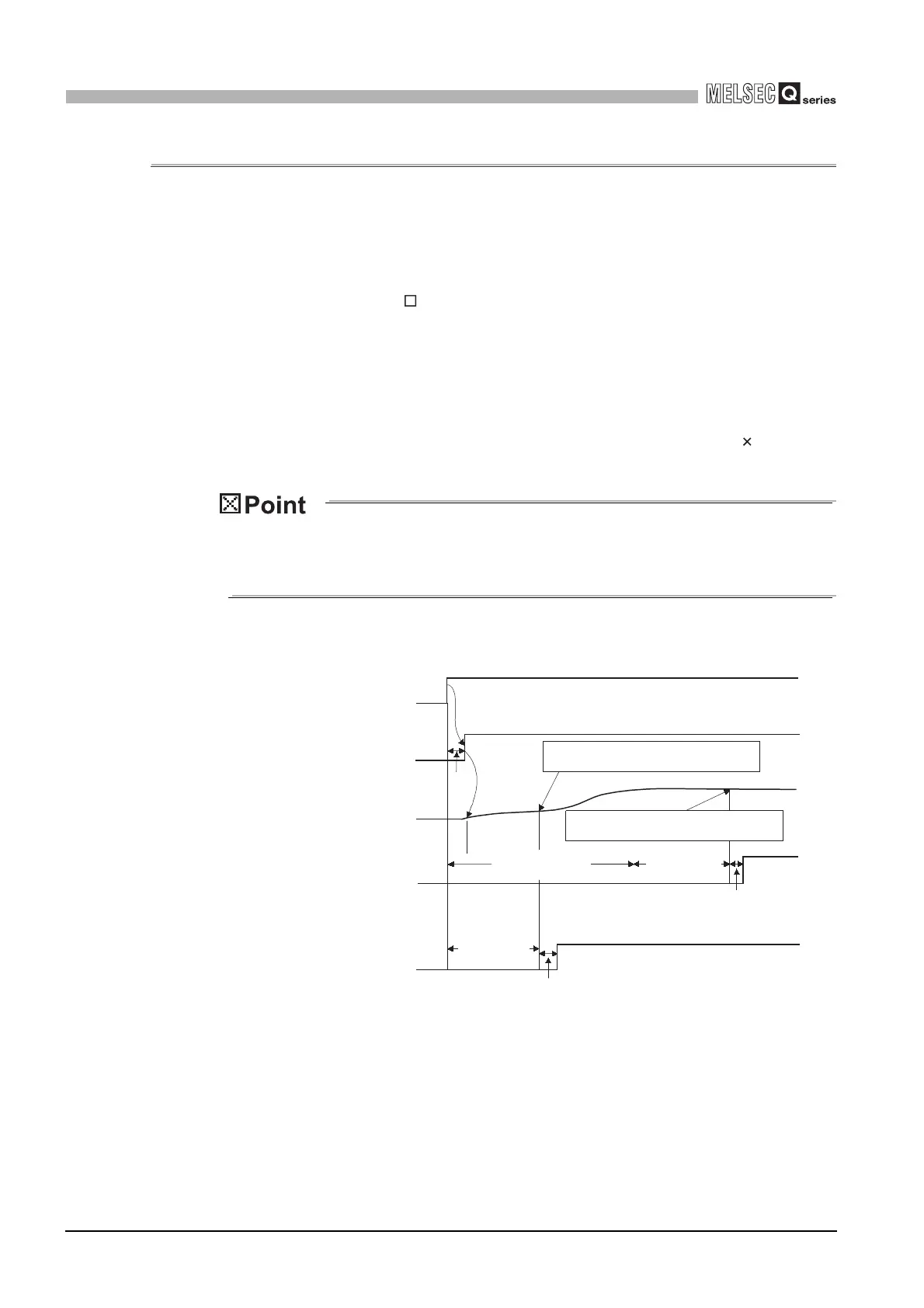

(3) The following indicates the time until the A/D conversion completed flag (Un\G10)
turns ON when the A/D conversion starting time has been set.
(Conversion starting time) + (A/D conversion pre-processing: Approx. 150 to 165ms)
+ (A/D conversion processing: number of conversion enabled channels 10ms)
Set the A/D conversion starting time in consideration of the time necessary from
when the 2-wire transmitter powers on until its output stabilizes and the warm-up
time of the 2-wire transmitter.
Approx.150 to 165ms
(A/D conversion
pre-processing)
Approx.150 to 165ms
(A/D conversion
pre-processing)
A/D conversion enable/disable setting
(Supply power to 2-wire transmitter
ON/OFF) (Un\G0)
24VDC power supply to 2-wire transmitter
Analog output of 2-wire transmitter
A/D conversion completed flag when A/D
conversion starting time is set to 500ms
(Un\G10)
A/D conversion completed flag when A/D
conversion starting time is set to 0ms
(Un\G10)
A/D conversion enable
Max.
20ms
When A/D conversion starting time is 0ms,
A/D conversion processing starts at this point.
500ms
(A/D conversion
starting time)
10ms
(A/D conversion
processing time)
10ms
(A/D conversion
processing time)
ON
ON
Power ON
[Example] When the time necessary from when the 2-wire transmitter powers on until its output stabilizes is 500ms
When A/D conversion starting time is 500ms,
A/D conversion processing starts at this point.
To Next Page
