4 - 2
4.1 Handling Precautions
4.1.1 Attaching a module fixing bracket (Q66AD-DG only)
4
SETUP AND PROCEDURES BEFORE OPERATION
4.1.1 Attaching a module fixing bracket (Q66AD-DG only)

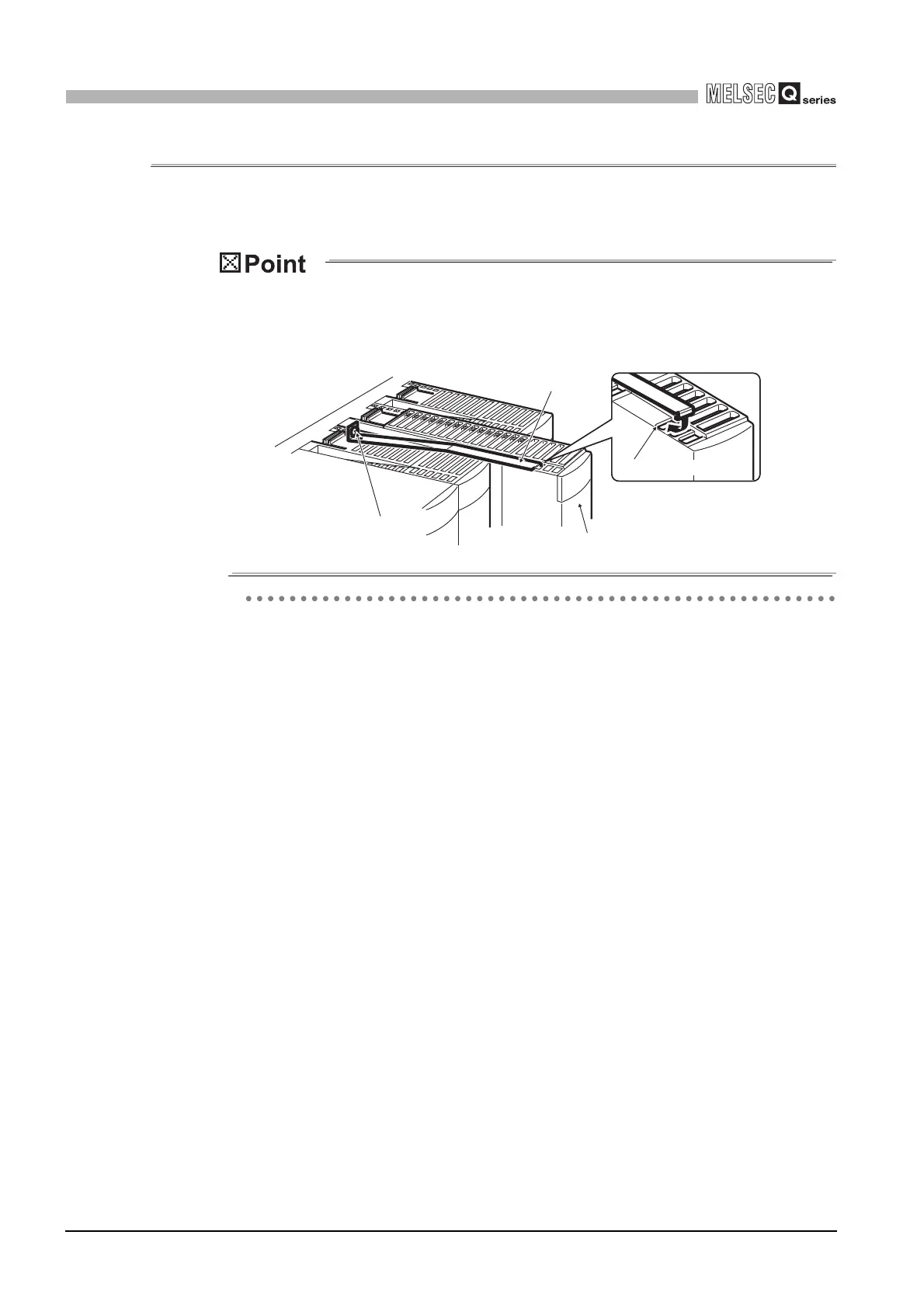

After mounting the Q66AD-DG on the base unit, fix the module with a module fixing
bracket.
Make sure that the module fixing bracket is hooked on the 3rd slit viewed from the
front of Q66AD-DG.
And tighten the module fixing screw at the specified torque.
Module fixing bracket
Module fixing screw
Q66AD-DG
3rd slit
