5 - 12
5.3 Utility Package Operation
5.3.3 Starting the intelligent function module utility
5
UTILITY PACKAGE (GX Configurator-AD)
The <<FB support parameter>> tab is displayed when the project which is being
edited is a label project.
(2) Command buttons
Common operations to the <<Intelligent function module parameter>> tab and
<<FB support parameter>> tab
When the <<FB support parameter>> tab is selected
When the <<Intelligent Function Module Parameter>> tab is selected
(3) Menu bar
Deletes the initial setting and auto refresh setting of the
selected module.
However, if "initial setting" and "auto refresh setting" have
been prepared and the cell of initial setting or auto refresh
setting is selected and executed, only the setting of the
selected cell is deleted.
Close this window.
Moves the setting of the selected line to the
<<Intelligent function module parameter>> tab.
Moves the setting of the selected line to the
<<FB support parameter>> tab.

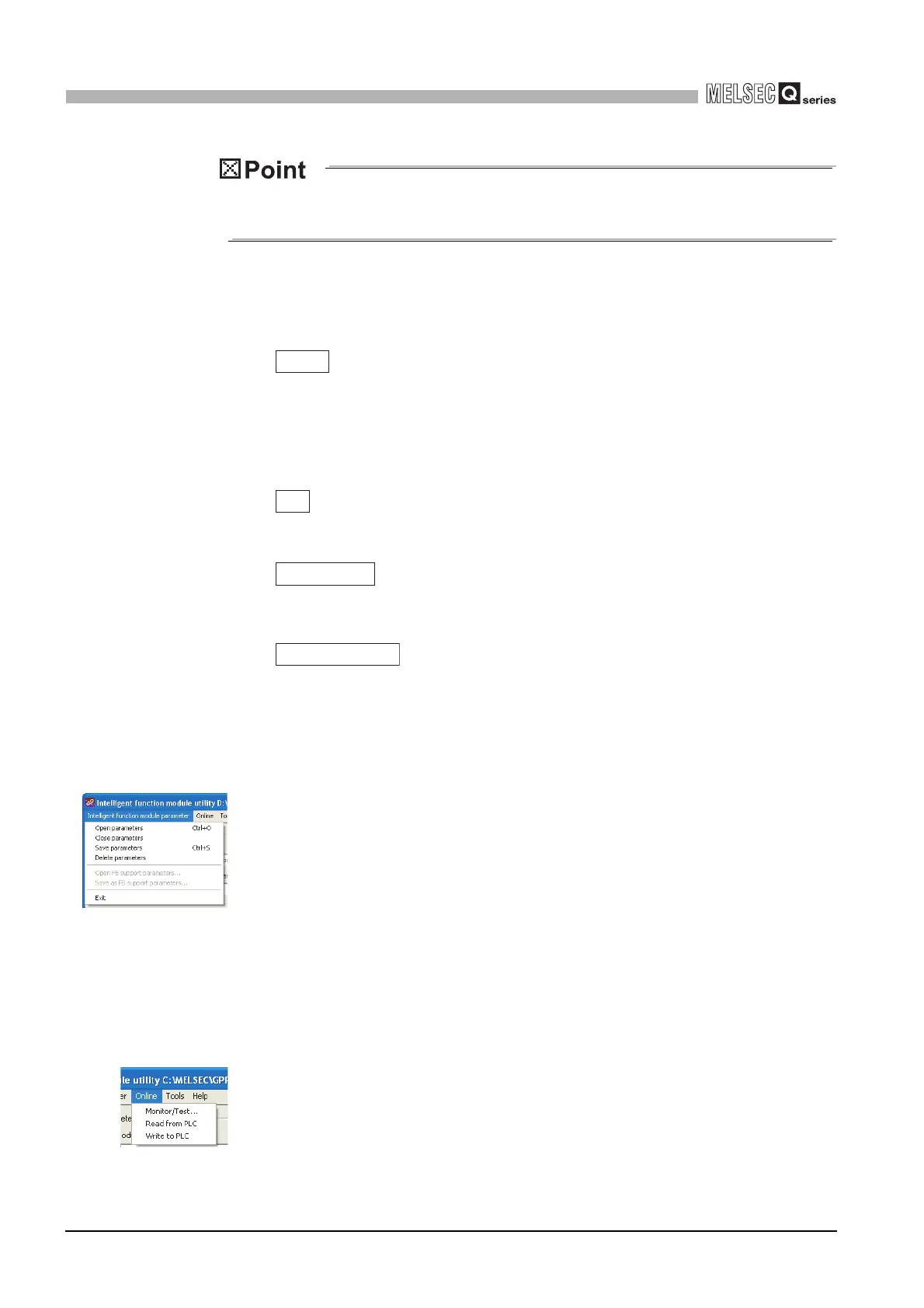

(a) File menu
Intelligent function module parameters of the project opened by GX Developer are
handled.
[Open parameters]
[Close parameters]
[Save parameters]
[Delete parameters]
[Open FB support parameters]
[Save as FB support parame-
ters]
[Exit]
:
:
:
:
:
:
:
Reads a parameter file.
Closes the parameter file. If any data are modi-
fied, a dialog asking for file saving will appear.
Saves the parameter file.
Deletes the parameter file.
Opens the FB support parameter file.
Saves the FB support parameter file.
Close this window.
(b) Online menu
[Monitor/Test]
[Read from PLC]
[Write to PLC]
:
:
:
Activates the Select monitor/test module window.
Reads intelligent function module parameters from the
CPU module.
Writes intelligent function module parameters to the CPU
module.
Delete
Exit
