SETUP AND PROCEDURES BEFORE OPERATION
4.6 Offset/Gain Settings
4.6.2 Offset/gain settings (Q66AD-DG)
4 - 23
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND PROCEDURES BEFORE OPERATION
5
UTILITY PACKAGE (GX CONFIGURATOR- AD)
6
PROGRAMMING
7
ONLINE MODULE CHANGE
8
TROUBLESHOOTING

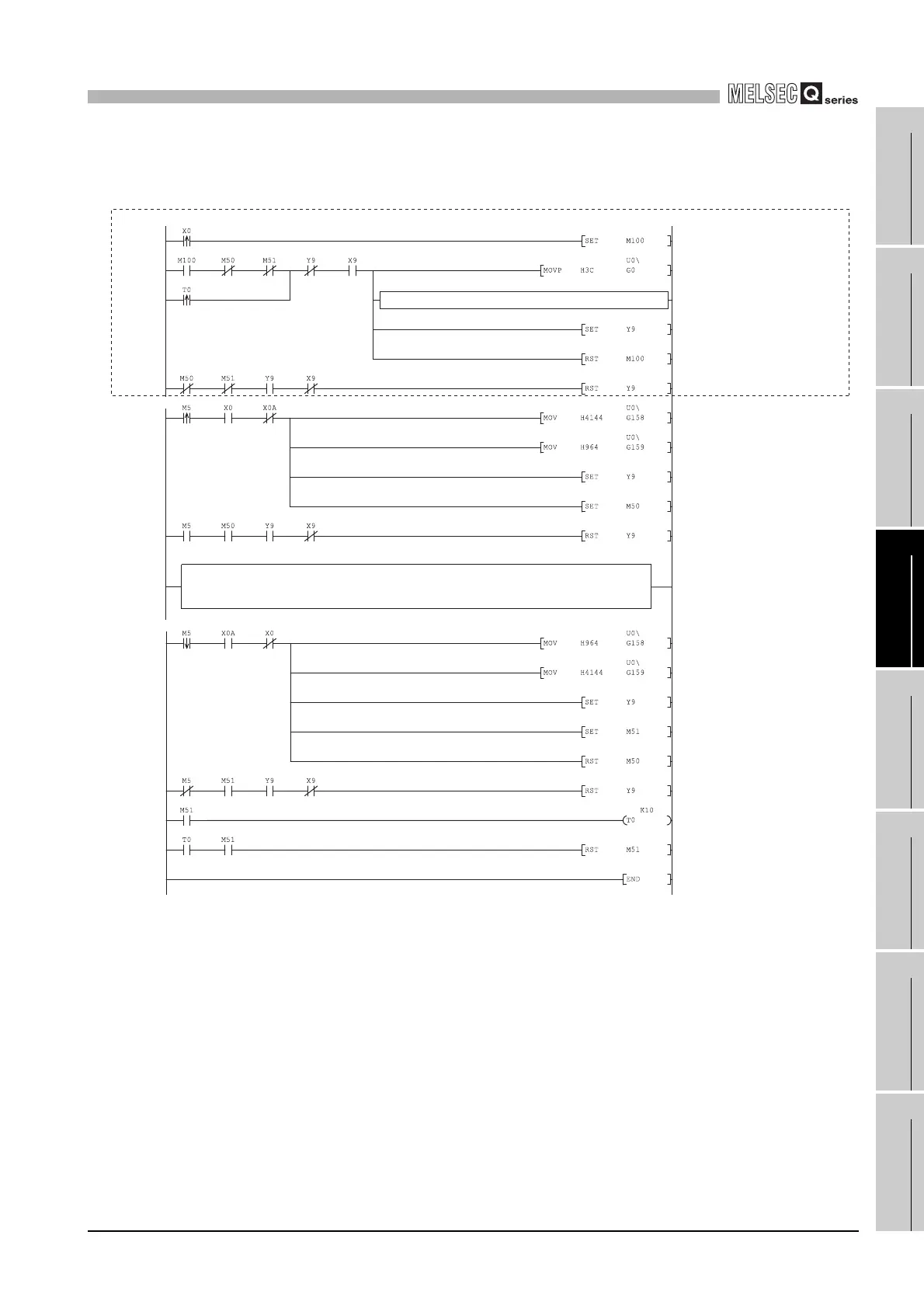

(b) When switching the mode using the setting of the mode switching setting
(Un\G158, Un\G159) and operation condition setting request (Y9)
Sets 4144H to buffer memory
address 158.
Sets 964
H to buffer memory
address 159.
Sets 964
H to buffer memory
address 158.
Sets 4144
H to buffer memory
address 159.
Turns ON operation condition
setting request (Y9).
Turns ON operation condition
setting request (Y9).
Turns OFF operation condition
setting request (Y9)
Turns OFF operation condition
setting request (Y9)
1-second timer
Turns ON operation condition
setting request (Y9).
Turns OFF operation condition
setting request (Y9)
A/D conversion enable/disable
setting
Adding initial setting items
*2
* Switches to offset/gain setting mode
* Switches to normal mode
*1
* Normal mode initial setting
Common program
Turns OFF Module ready
check flag.
Turns ON Module ready
check flag.
