PROGRAMMING
6.2 For Use in Normal System Configuration (Q68AD-G)
6.2.2 Programming example using the utility package
6 - 6
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND PROCEDURES BEFORE OPERATION
5
UTILITY PACKAGE (GX CONFIGURATOR- AD)
6
PROGRAMMING
7
ONLINE MODULE CHANGE
8
TROUBLESHOOTING

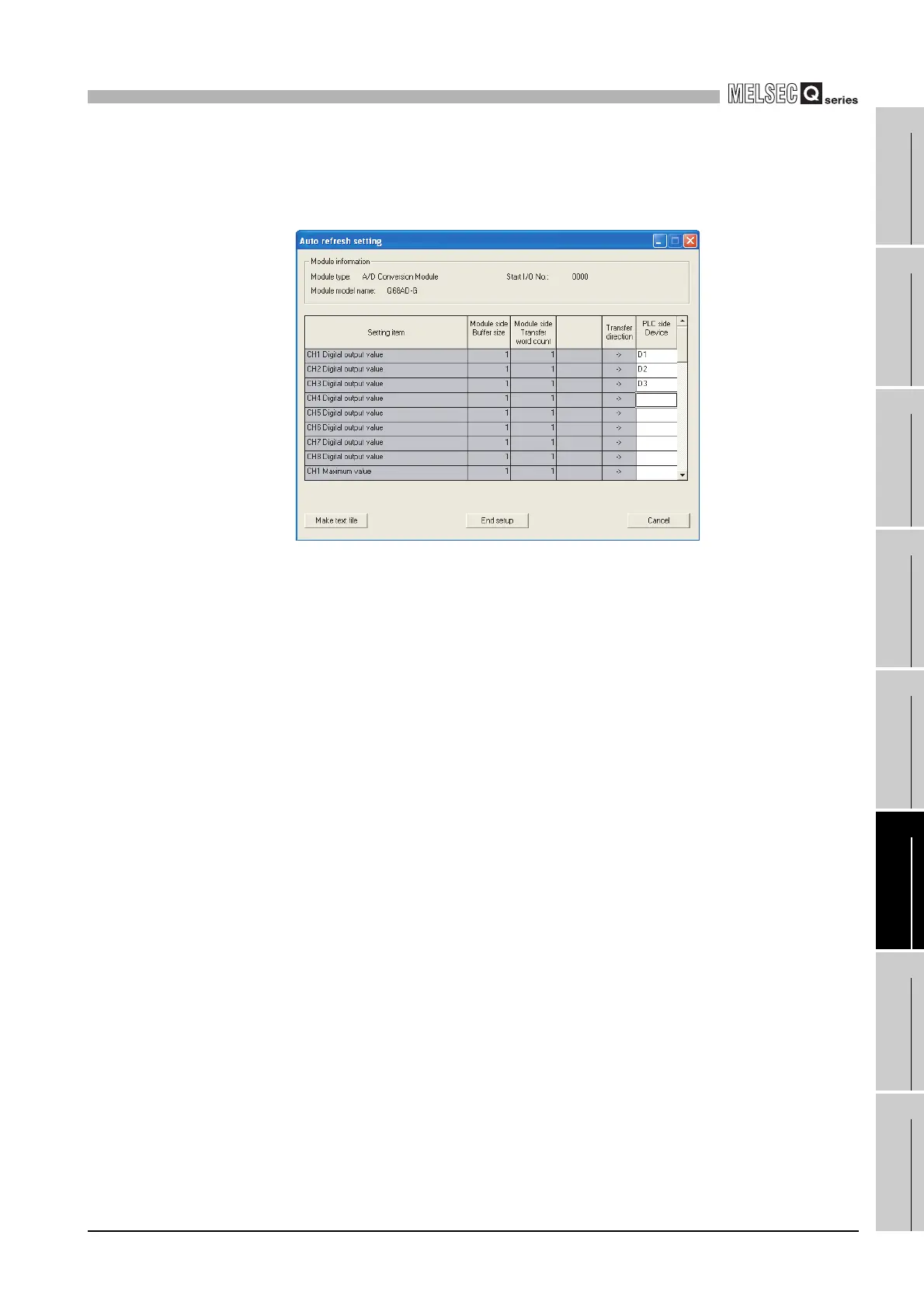

(b) Auto refresh setting (Refer to Section 5.5)
Set the digital output values, warning output flags, input signal error detection
flags, and error codes of CH1 to CH3.
(c) Writing the intelligent function module parameters (Refer to Section 5.3.3)
Write the intelligent function module parameters to the CPU module.
This operation is performed using the parameter setting module selection window.
