7.3 Online Module Change Procedure
7.3.1 When industrial shipment setting is used and initial setting was made with GX Configurator-AD
7
ONLINE MODULE CHANGE
(3) Mounting of new module
(a) Mount a new module to the same slot and install the connector.

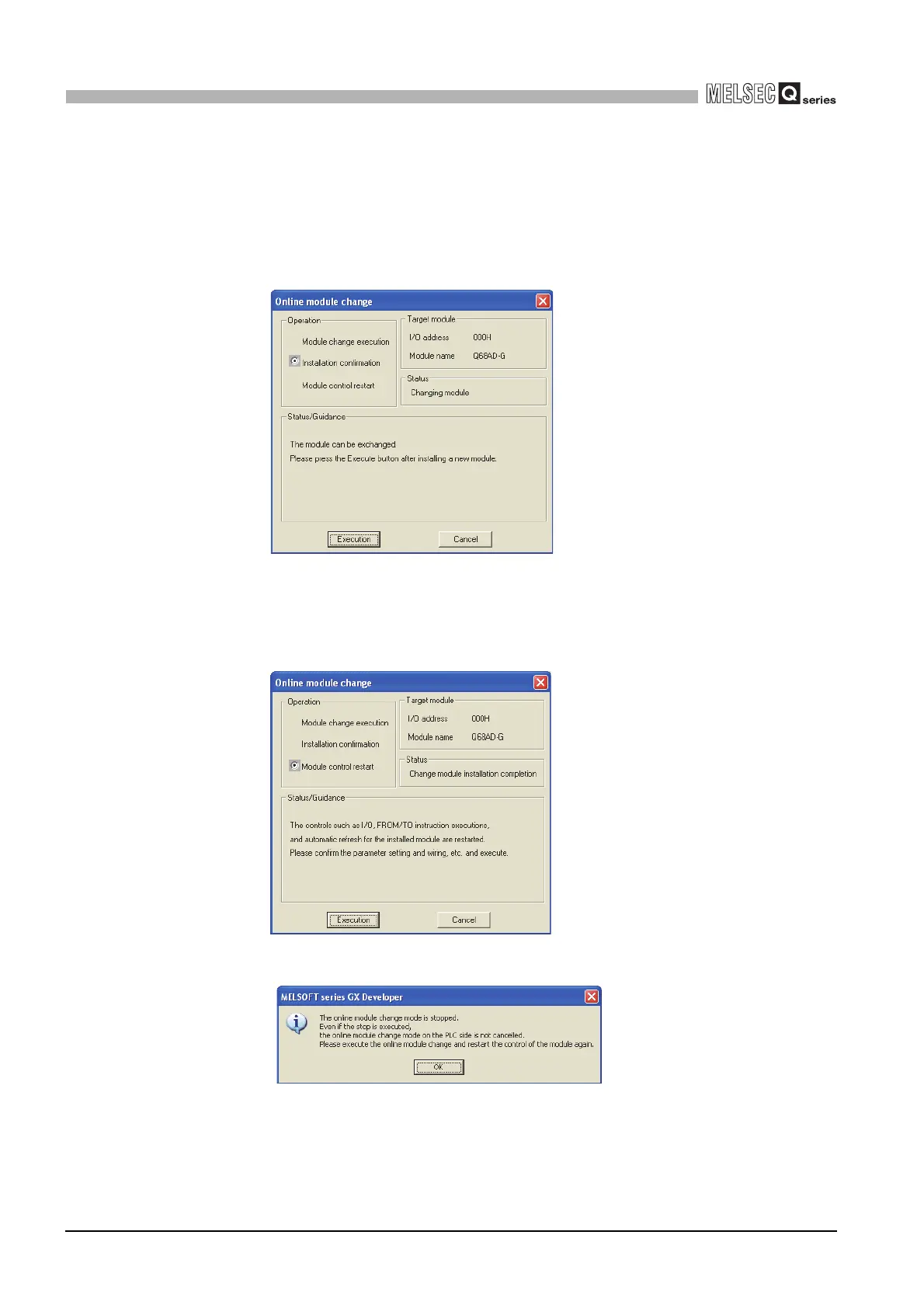

(b) After mounting the module, click the [Execution] button and make sure that the
"RUN" LED is lit. Module ready (X0) remains OFF.
(4) Operation check
(a) To make an operation check, click the [Cancel] button to cancel control
resumption.
(b) Click the [OK] button to leave the "Online module change" mode.
