7
ONLINE MODULE CHANGE
7.3 Online Module Change Procedure
7.3.5 When user range setting is used and initial setting was made with sequence program (other system is
7 - 30
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
SETUP AND
PROCEDURES
BEFORE OPERATION
5
UTILITY PACKAGE
(GX CONFIGURATOR-
AD)
6
PROGRAMMING
7
ONLINE MODULE
CHANGE
8
TROUBLESHOOTING
(5) Resumption of control

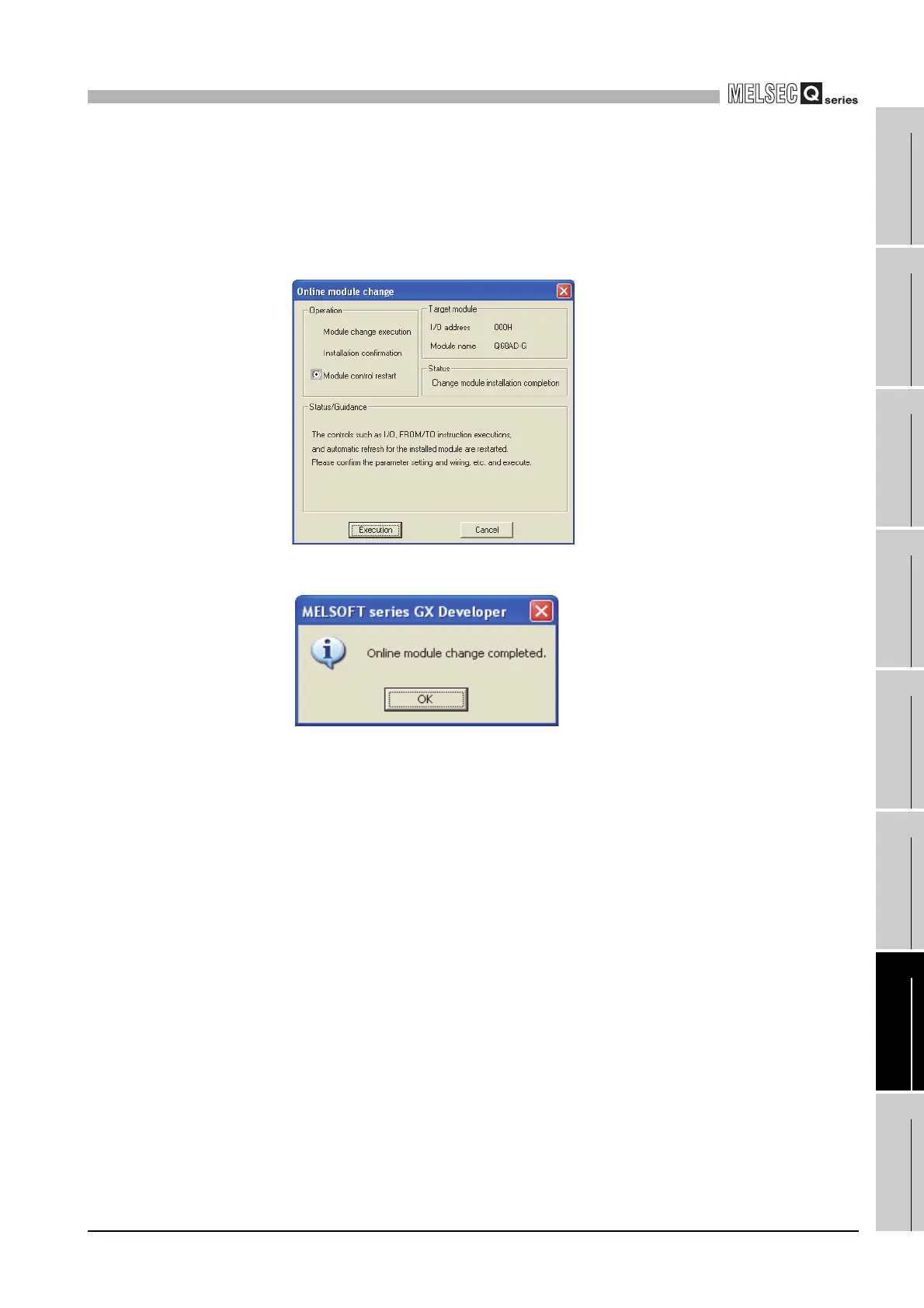

(a) After choosing [Diagnosis] - [Online module change] on GX Developer to
redisplay the "Online module change" window, click the [Execution] button to
resume control. Module ready (X0) turns on.
(b) The "Online module change completed" window appears.
