6-4-4. Block settings
By making block settings, multiple groups in a given block can be collectively monitored or operated on the AE-200’s
LCD and the Integrated Centralized Control Web.
Note: The ventilation will stop when the Peak Cut control runs for the LOSSNAY units or OA Processing units that perform Night
purge operation. For this reason, do not register the LOSSNAY units and OA Processing units that perform Night purge
operation to the same block.
Note: HWHP (CAHV, CRHV, QAHV) unit groups and chiller unit groups cannot be registered to a block.

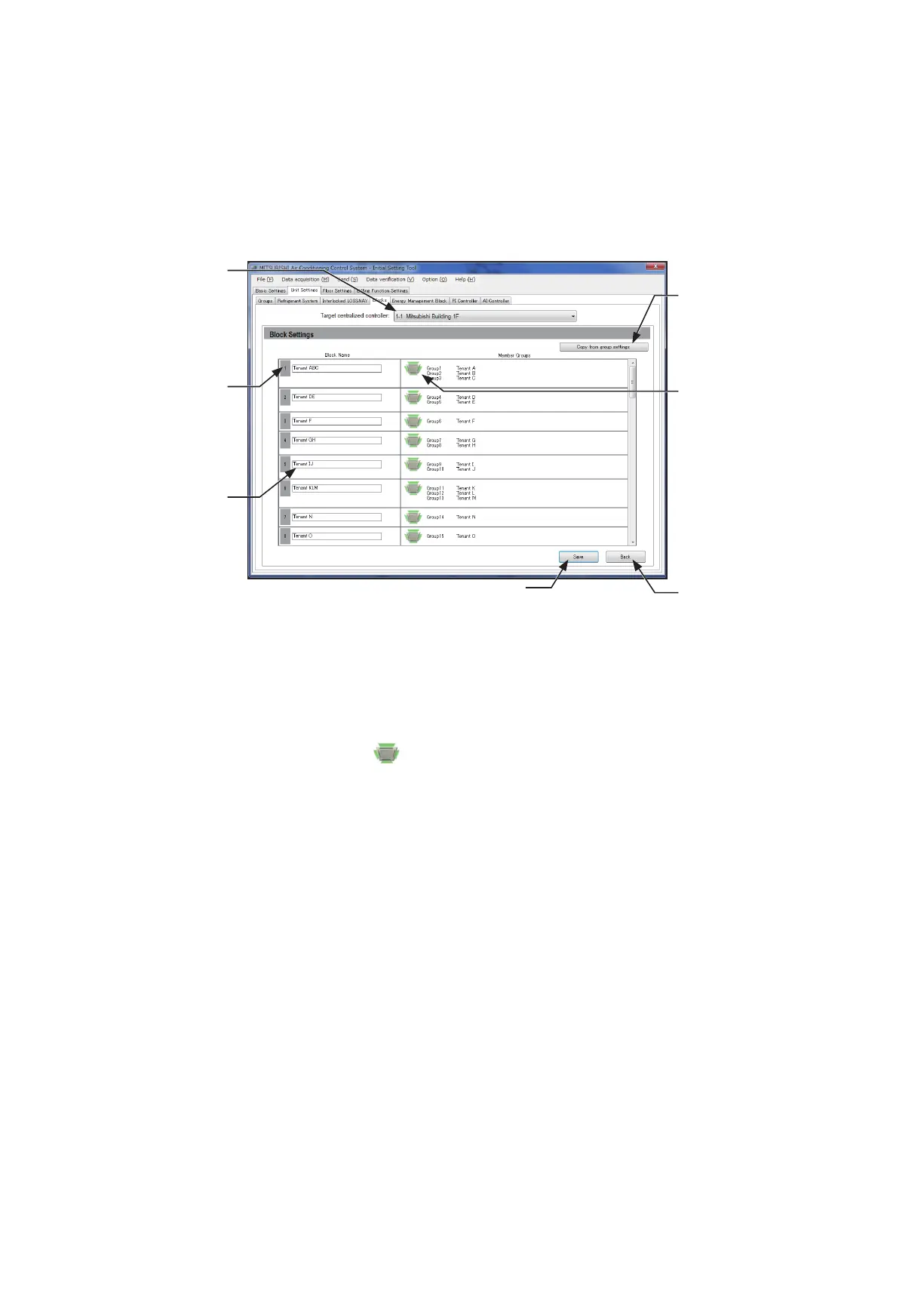

(1) Click [Unit Settings] > [Blocks] to access the block settings screen.
(2) In “Block Name”, enter the block name in 20 characters or less.
The name entered here will be displayed on the LCD and the Integrated Centralized Control Web.
Note: Click [Copy from group settings] to create a block with the settings copied from the group settings.
(3)
Click the icon in “Group registration” ( ) to display the group selection screen.
(4) Select the group numbers to be registered, and click [OK].
(To show the group name, move the cursor to the group number.)
(5) Click [Save] to save the settings.
Block No.
Save
Click to save the settings.
Group registration
Click to display the screen
for selecting groups.
Back
Click to display the previous
settings without making any
changes.
Target centralized
controller
Select one of the connected
centralized controllers
whose block settings are to
be made.
Block name
Copy from group settings
Click to create a block with
the settings copied from the
group settings.
