4-3. IP address settings
Set AE-200/AE-50/EW-50 IP addresses, and configure the expansion controller connection settings on the AE-200’s
LCD.
For an AE-200 system, set using the following procedure.
Set the IP address of AE-50 on the LCD or the Web Browser
for Initial Settings, and set the IP address of EW-50 on the
Web Browser for Initial Settings.
(See section 4-3-1 “Setting IP addresses of AE-50/EW-50”.)
Set whether or not to use an AE-200 M-NET on the AE-200’s
LCD.
(See section 4-3-2 “Setting IP addresses of AE-200”.)
Set whether or not to use an expansion controller on the
AE-200’s LCD.
(See section 4-3-2 “Setting IP addresses of AE-200”.)
Set the IP addresses of AE-200 on the AE-200’s LCD or the
Web Browser for Initial Settings.
(See section 4-3-2 “Setting IP addresses of AE-200”.)
Set the connecting IP addresses of expansion controllers on
the AE-200’s LCD.
(See sections 4-3-2 “Setting IP addresses of AE-200” and
5-1-5 [5] “Communication error detection”.)

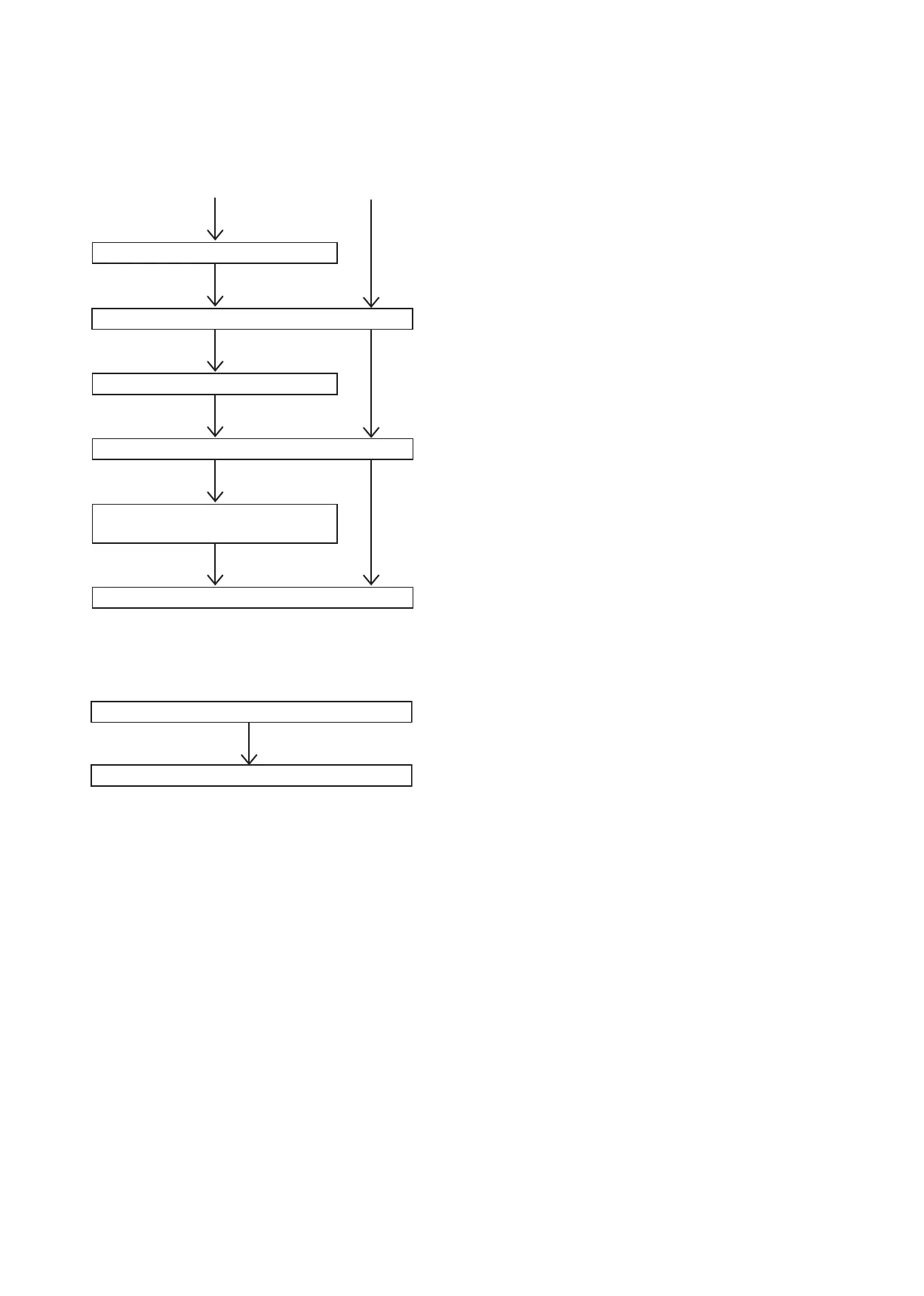

For an EW-50 system, set using the following procedure.
Set the IP addresses of EW-50 on the EW-50’s Web Browser
for Initial Settings.
(See section 4-3-1 “Setting IP addresses of AE-50/EW-50”.)
Expansion controller
connected
IP address setting of AE-50/EW-50
M-NET setting
Expansion controller setting
IP address setting of AE-200
Destination IP address setting of
expansion controller
Completed
No expansion controller
connected
Expansion controller
connected
No expansion controller
connected
IP address setting of EW-50
Completed
