210
WT07627X03
Appendix 1: Air-conditioner ON/OFF trial run
After the centralized controllers are installed, a check sheet can be output to be used for air-conditioner ON/OFF
trial runs.
Click [Option] > [Output - Check sheet for air-conditioner ON/OFF trial run] in the tool bar of the Initial Setting Tool to
output the check sheet for each AE-200 system.
Note: When the PC with Initial Setting Tool installed and the centralized controller are connected via a LAN, the license registration
status can be output in the check sheet.

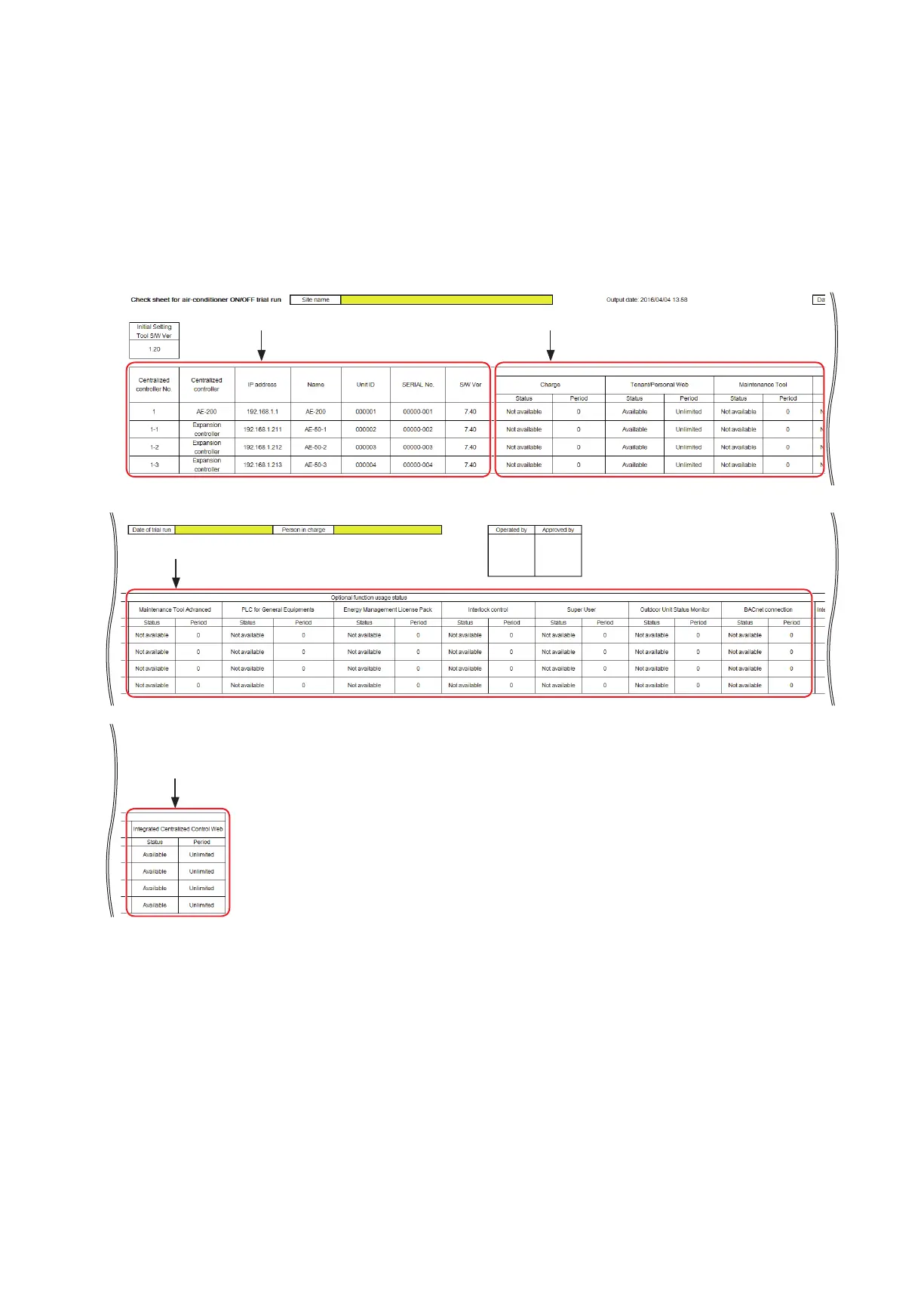

[1] Centralized controller
Output this check sheet for each AE-200 system.
(1) Checking the connection configuration
Check for proper IP addresses and software versions.
(2) Checking the license
Check that all required licenses are registered.
Note: To check the license registration status, output the check sheet when the PC with Initial Setting Tool installed and the
centralized controller are connected via a LAN.
(1) (2)
(2)
(2)
To Next Page
