6. Settings using Initial Setting Tool
6-1. Flow of the initial settings on Initial Setting Tool
Follow the procedures from step
onwards to make the initial settings for the apportioned electricity billing
function.

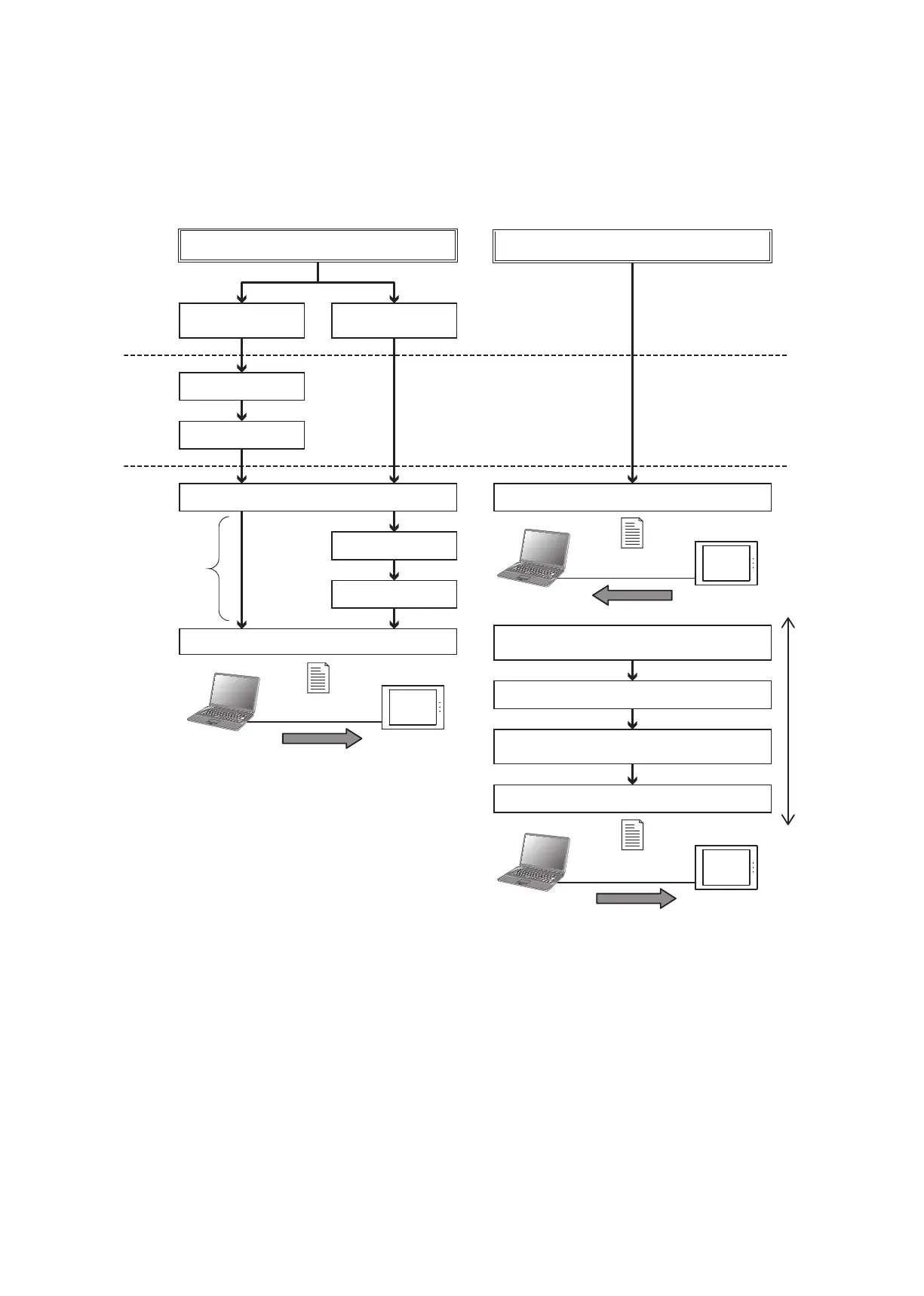

As shown in flow
below, settings data can be created beforehand at another location, such as office, to send it to
the centralized controller on the day of the trial run.
*1 To change the existing AE-200/AE-50/EW-50 settings, make sure to save the settings file (collected from AE-200) before the change.
*2 After the settings data are loaded on the Initial Setting Tool and the changes are made, do not change the settings on the AE-200’s LCD or
from the Web Browser for Initial Settings until you finish sending the setting changes data.
*3 The settings data created on the Initial Setting Tool cannot be loaded or written to the AE-200 using a USB memory.
*4 Store the settings files set on the Initial Setting Tool (pre-change data and post-change data) in a safe place.
Settings file
(collected from AE-200)
Initial settings (new registration)
Initial Setting Tool
When changing the settings
Collecting the settings data from AE-200
By the day
before the trial
run (at office)
(When making the
initial settings off-site)
Creating the settings
data
Saving the settings data
On the day of
the trial run
(on-site)
(When making the
initial settings on-site)
Work on
site can be
reduced
Creating the settings
data
Sending the settings data to AE-200
Saving the settings data
Settings file
(new settings data)
Initial Setting Tool
LAN
Sending the settings data via LAN
*3
Saving the settings as pre-change data
*1
Example: 20150401A.dat
LAN
Changing the settings
Loading the settings data via LAN
*3
Saving the settings as post-change data
*4
Example: 20150401B.dat
Sending the settings data to AE-200
Initial Setting Tool
Settings file
(Post-change data)
LAN
Sending the settings data via LAN
*3
*2
On-site system check
To Next Page
