5-1-12. System View
Refrigerant system information (connection information of outdoor and indoor units) can be checked for each AE-200,
AE-50, and EW-50.
Touch [Initial Settings] in the menu bar, and then touch [System View].
Note: This screen shows the information of the units that have been registered to a group and have started up successfully.
Note: The [Controller] setting will appear (only on the AE-200’s LCD) when the [System Exp] setting on the [Unit Info.] screen is set
to [Expand]. Switch the [Controller] setting between [AE200] and [Exp1] through [Exp4] to display the information for each
AE-200, AE-50, and EW-50 individually.

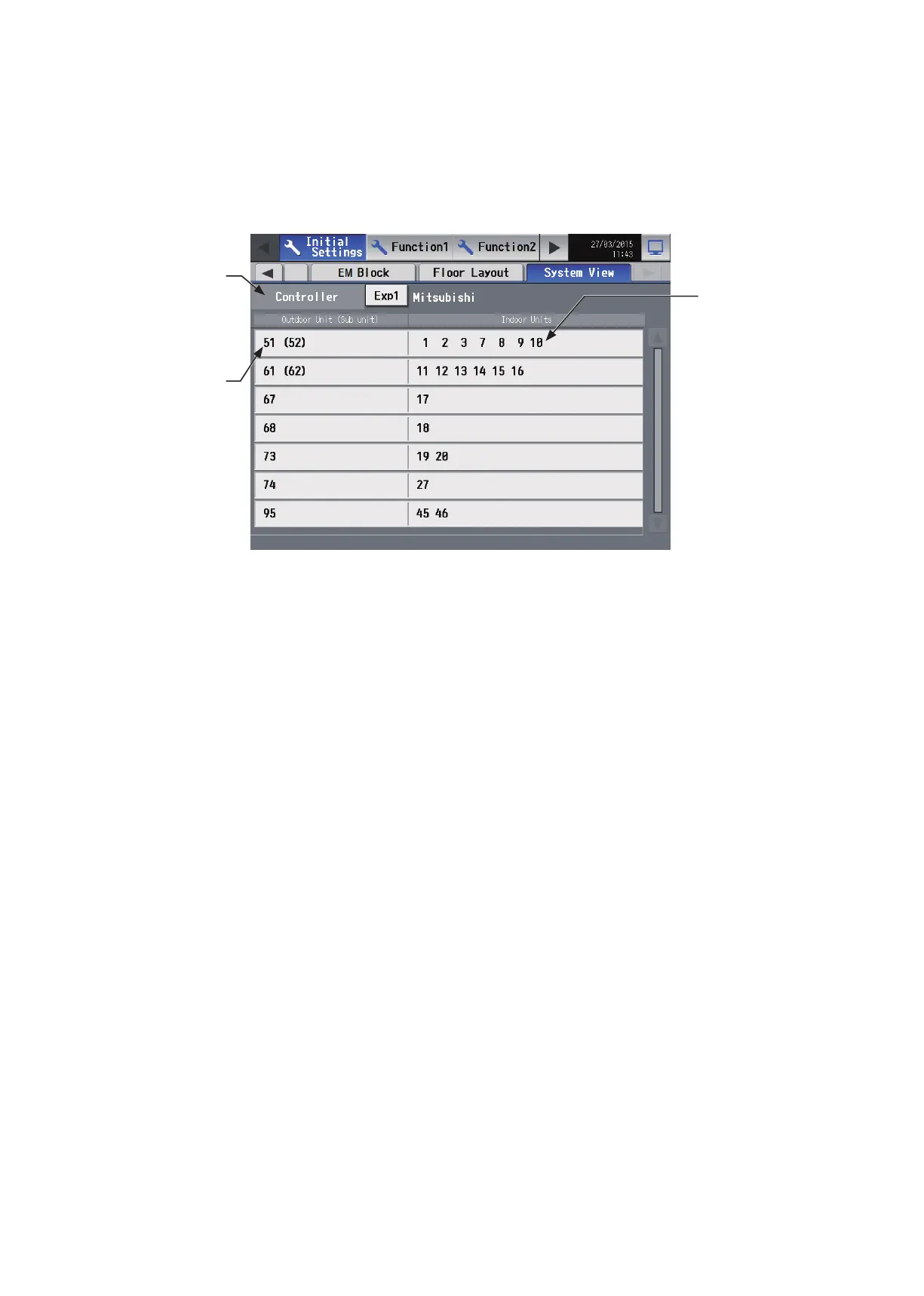

(1) Switch the [Controller] setting between [AE200] and [Exp1] through [Exp4] to check the system information for
each AE-200, AE-50, and EW-50 individually. (Only on the AE-200’s LCD)
Controller
Select [AE] to display the
information for AE-200, and
select [1], [2], [3], or [4] to
display the information for
each AE-50/EW-50.
Outdoor unit address
“Unit address of the main
unit (Unit address of the sub
unit)” will appear.
Indoor unit address
Unit address of the indoor
units that are connected to
the outdoor unit will appear.
Air to Water (PWFY) units
will appear, and LOSSNAY,
HWHP (CAHV, CRHV,
QAHV) units, and chiller
units will not appear.
