92
WT07627X03

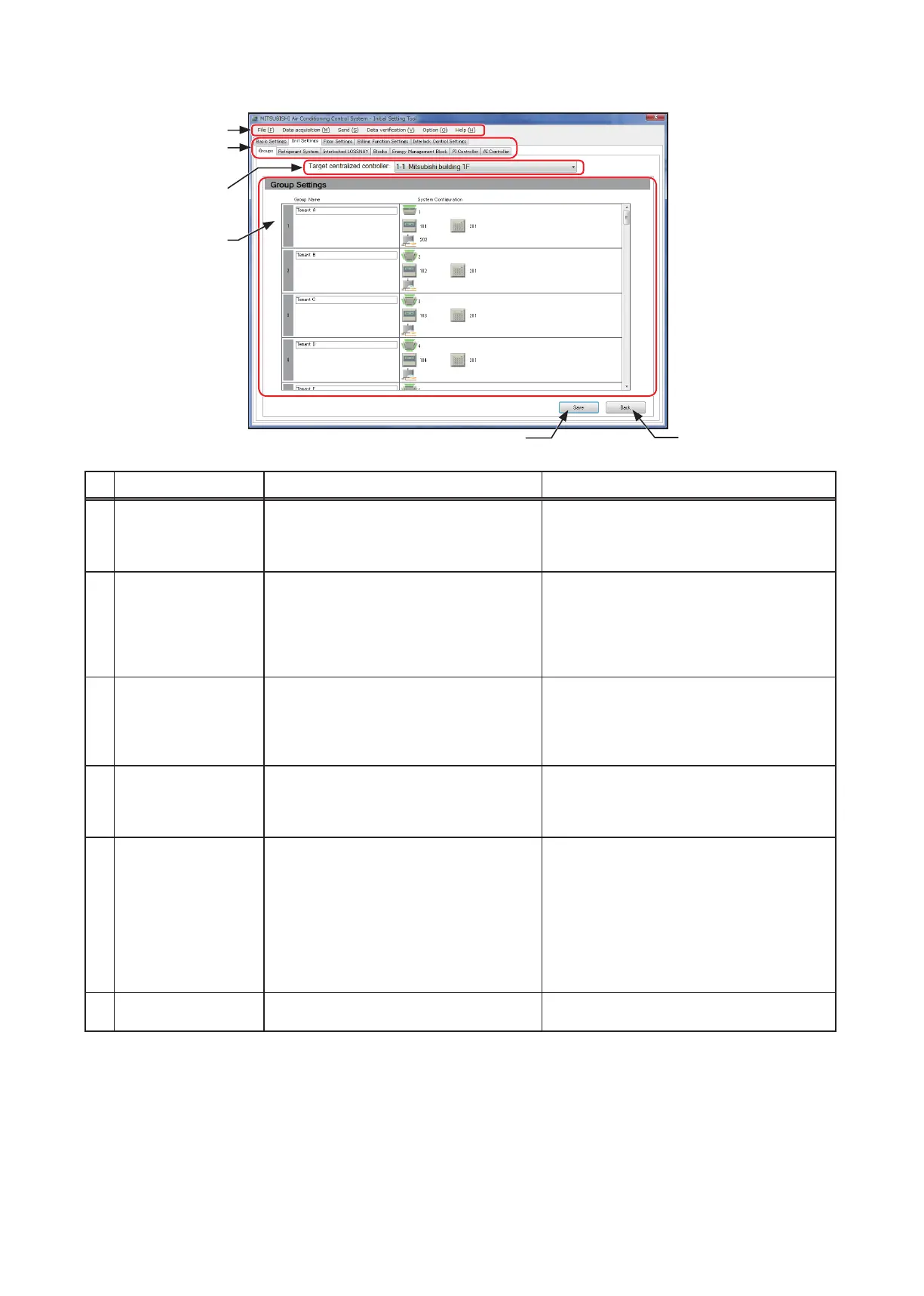

6-2-2. Screen configurations and common items
Function Operation method Description
Tool bar Operations such as to create, save,
load and send the settings files, and to
monitor the status of the settings from the
centralized controller are possible.
Refer to section 6-2-3 “List of tool bar
operations”.
Tab Click the tab to switch between setting
screens.
When the upper tabs are switched, the
corresponding lower tabs will be displayed.
Click the tab of which you want to make the
settings.
When the “tab” of which you want to make
the settings is clicked, settings screen will be
displayed. Enter the settings data and then
click [Save].
Target centralized
controller
From the list of the centralized controllers
with connection configuration set, select
one to make the settings.
Settings are required for each centralized
controller.
Depending on the settings screen, this may
not be displayed.
Setting area The area in which settings are made. Refer to sections 6-3 “Basic settings”, 6-4
“Unit settings”, 6-5 “Floor Settings”, 6-6 “Billing
function settings”, and 6-7 “Interlock Control”
for how to make settings.
[Save] Click to save the settings in the Initial
Setting Tool.
Even when [Save] is clicked, the settings data
will not be sent to the AE-200/AE-50/EW-50.
After all of the settings are completed, click
[Send settings] in the tool bar to send it to the
AE-200/AE-50/EW-50. Refer to section 6-2-3
[5] “Send” for details. Note also that even when
saved, the settings are still not been saved in
a settings file. To save a settings file, click [File]
> [Save] or [Save As...] in the tool bar.
[Back] Click to display the previous settings without
making any changes.
① Tool bar
⑤ [Save]
⑥[Back]
④ Setting area
② Tab (Upper)
(Lower)
③ Target centralized
controller
To Next Page
