5-1-8. Interlocked LOSSNAY
The ON/OFF status of the LOSSNAY unit can be interlocked with the operation of indoor units.
Touch [Initial Settings] in the menu bar, and then touch [Interlock]. Set the interlocking conditions for each AE-200,
AE-50, and EW-50, and then touch [Save Settings].
Note: The Interlocked LOSSNAY settings may not be accessible if logged in as a building manager.
Note: If the system is connected to a TG-2000A, make or change the settings from the TG-2000A.
Note: The ON/OFF status of the indoor units are not interlocked with the ON/OFF status of the LOSSNAY unit.
Note: The [Controller] setting will appear (only on the AE-200’s LCD) when the [System Exp] setting on the [Unit Info.] screen is set
to [Expand]. Switch the [Controller] setting between [AE200] and [Exp1] through [Exp4] to make settings for each AE-200,
AE-50, and EW-50 individually.
Important
● Interlock settings for the AE-50/EW-50 must be made with the AE-50/EW-50 properly connected to ensure proper settings.
Those settings made without the connection of AE-50/EW-50 will not be reflected.
● The interlock settings between the units connected to the AE-200 and the AE-50/EW-50, as well as between the units
connected to different AE-50 controllers, cannot be made.

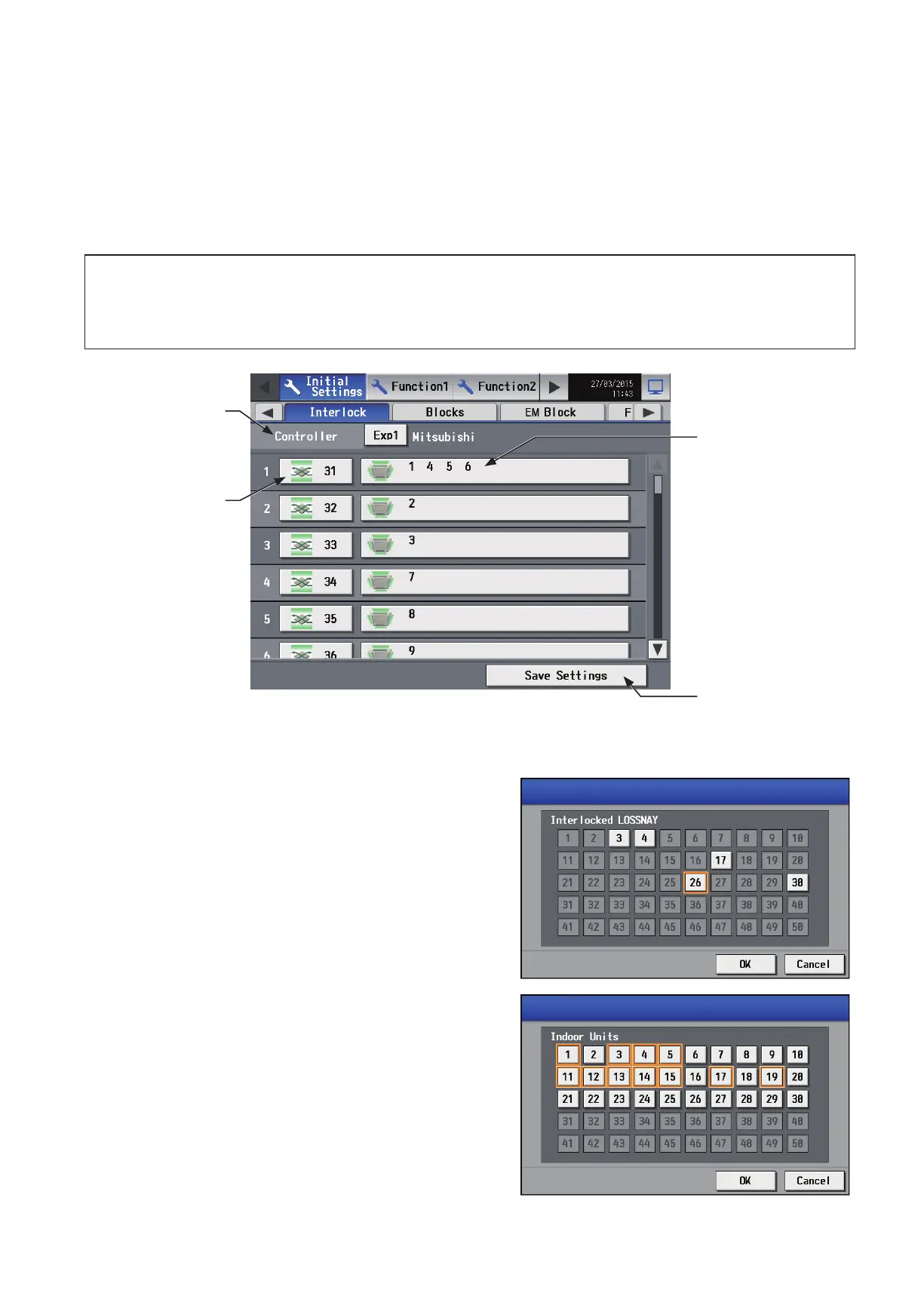

(1) Touch the “Interlocked LOSSNAY unit registration” button.
A screen to select the units will appear.
Select the address number of the LOSSNAY unit to be
registered. The selected unit address will appear with an
orange frame.
Touch again to deselect.
(2) Touch the “Interlocked indoor unit registration” button. A
screen to select the units will appear.
Select the address numbers of the indoor units to which
the selected LOSSNAY unit will be interlocked. The
selected unit addresses will appear with an orange frame.
Touch again to deselect.
Note: Each LOSSNAY unit can be interlocked with up to 16 air
conditioners.
Interlocked LOSSNAY unit
registration
Touch to display the screen
for registering the LOSSNAY
unit.
Interlocked indoor unit
registration
Touch to display the screen
for registering the air
conditioners.
Save Settings
Touch to save the changes
made.
Controller
Select [AE] to make
settings for AE-200, and
select [1], [2], [3], or [4]
to make settings for each
AE-50/EW-50.
To Next Page
