Note: Specify the “Operation ON sensor” with a number equal to or smaller than that of the “Operation OFF sensor.”
Note: Operation will be carried out as shown in the figure below when “Sensor 1” is set for “Operation ON sensor” and “Sensor
3” is set for “Operation OFF sensor” in [Mode setting] for 3-sensor-type model of units.
Note: Operation will be carried out as shown in the figure below when “Sensor 1” is set for “Operation ON sensor” and “Sensor
6” is set for “Operation OFF sensor” in [Mode setting] for 6-sensor-type model of units.
(3) Set “Outlet HW ” to a temperature between 40.0ºC (104ºF) and 90.0ºC (194ºF).
(4) Touch [OK] to enable the settings.
[5] Completing the settings for HWHP (QAHV) units
(1) When done setting the detail settings for all HW Supply unit groups, touch [Save Settings].
Note: It takes 2 to 5 minutes to transmit the settings.

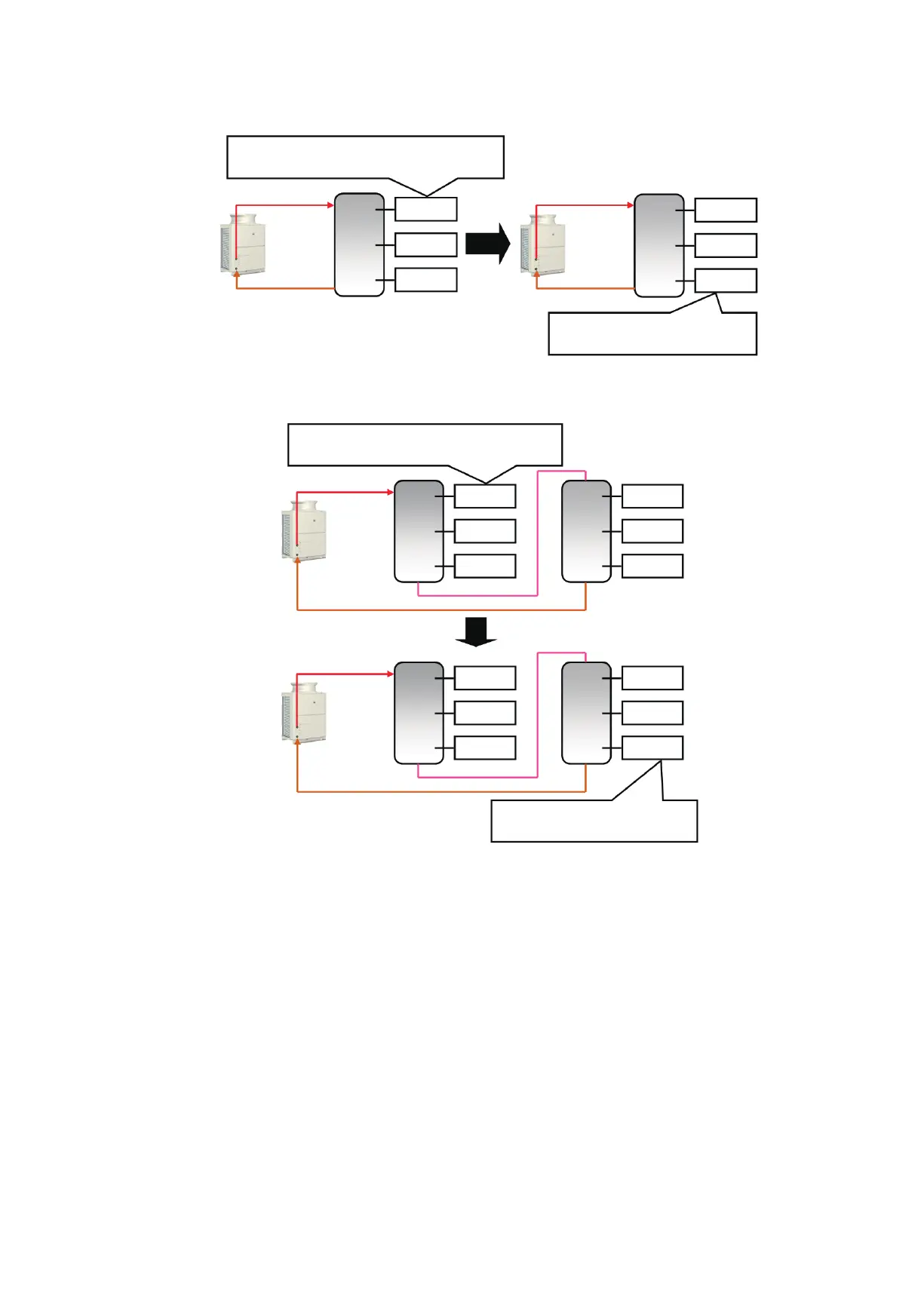

Operation starts when the formula “Sensor 1 temperature
< (Set temperature - Operation ON differential)” is
satisfied.
Outlet HW temperature
Tank
Sensor 1
Sensor 2
Sensor 3
Outlet HW temperature
Tank
Sensor 1
Sensor 2
Sensor 3
Operation ends when the formula “Sensor
3 temperature > Set temperature” is
satisfied.
Operation starts when the formula “Sensor 1 temperature
< (Set temperature - Operation ON differential)” is
satisfied.
Outlet HW temperature
Outlet HW temperature
Tank 1
Tank 1
Sensor 1
Sensor 2
Sensor 3
Sensor 3
Sensor 2
Sensor 1 Sensor 4
Sensor 5
Sensor 6
Tank 2
Tank 2
Operation ends when the formula “Sensor
6 temperature > Set temperature” is
satisfied.
Sensor 4
Sensor 5
Sensor 6
