52
WT07627X03

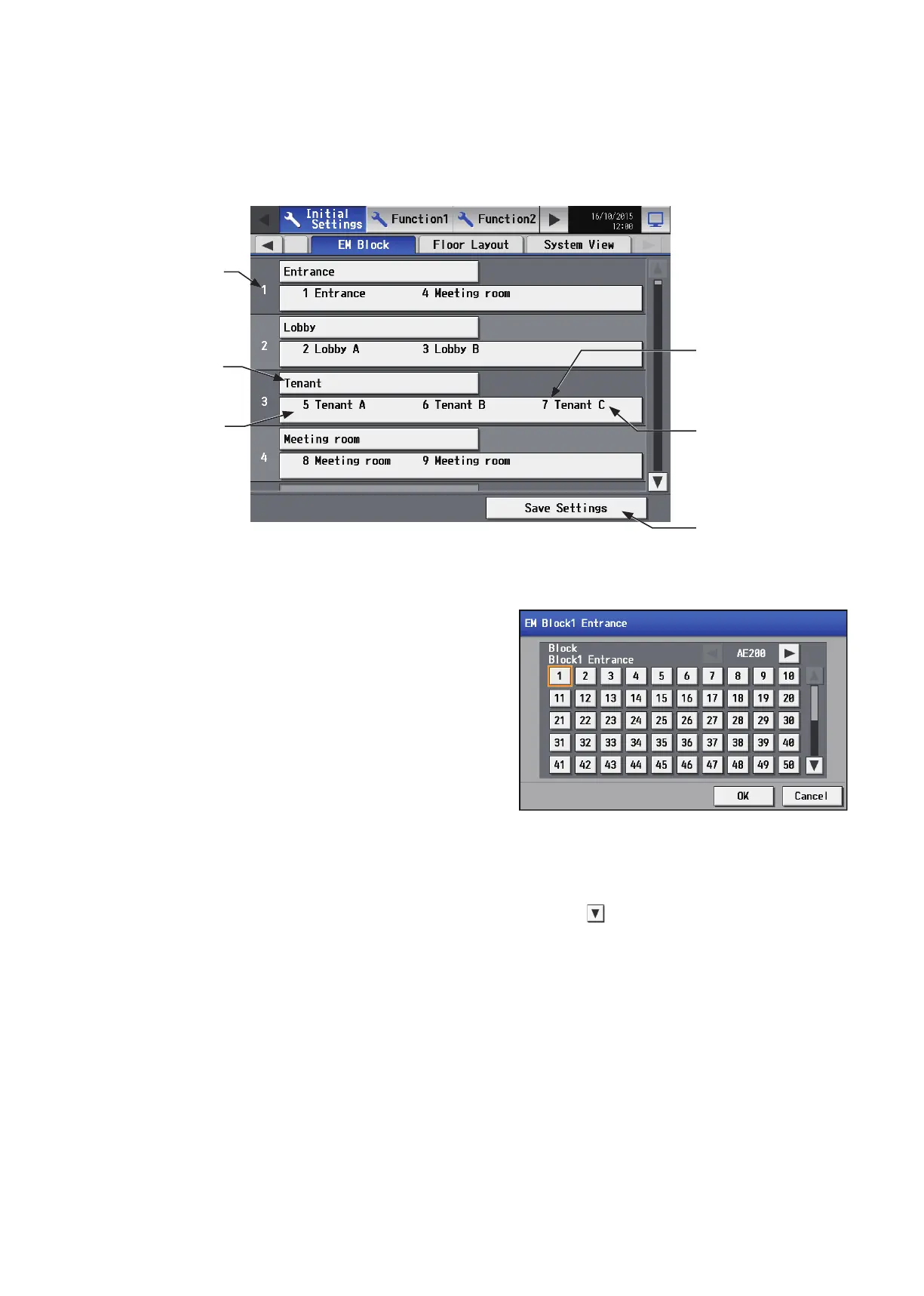

5-1-10. EM Blocks
Carrying out EM block (energy management block) settings enables batch status monitoring and operation of
multiple blocks covering AE-200/AE-50/EW-50.
Touch [Initial Settings] in the menu bar, and then touch [EM Blocks]. Register the blocks to each EM block, and then
touch [Save Settings].
Note: Some settings may not be accessible if logged in as a building manager.
(1) Touch the “EM block registration” button of the target EM
block. A screen to select the blocks will appear.
(2) Switch to the controllers ([AE200], [Exp1] through [Exp4]) to which the blocks to register belong.
(3) Touch the block numbers to be registered. (The name of the block that was touched last will appear.)
The selected block numbers will appear with an orange frame. Touch again to deselect.
Note: To select a LOSSNAY unit that is interlocked with indoor units, touch the button and select an address number.
(4) Touch the “EM block name registration” button to display the keyboard. Enter the EM block name in 20
alphanumeric or symbol characters or less.
Note: The following characters cannot be used: <, >, &, “, or ‘
EM block name
registration
EM block registration
EM block No.
Block name
Save Settings
Touch to save the changes
made.
Block No.
“AE-50 No. - Block No.”
will appear if one or more
AE-50/EW-50 controllers are
connected.
To Next Page
