164
WT07627X03
7-2-3. Measurement
Measurement settings must be made to use temperature sensors, humidity sensors, and metering devices.

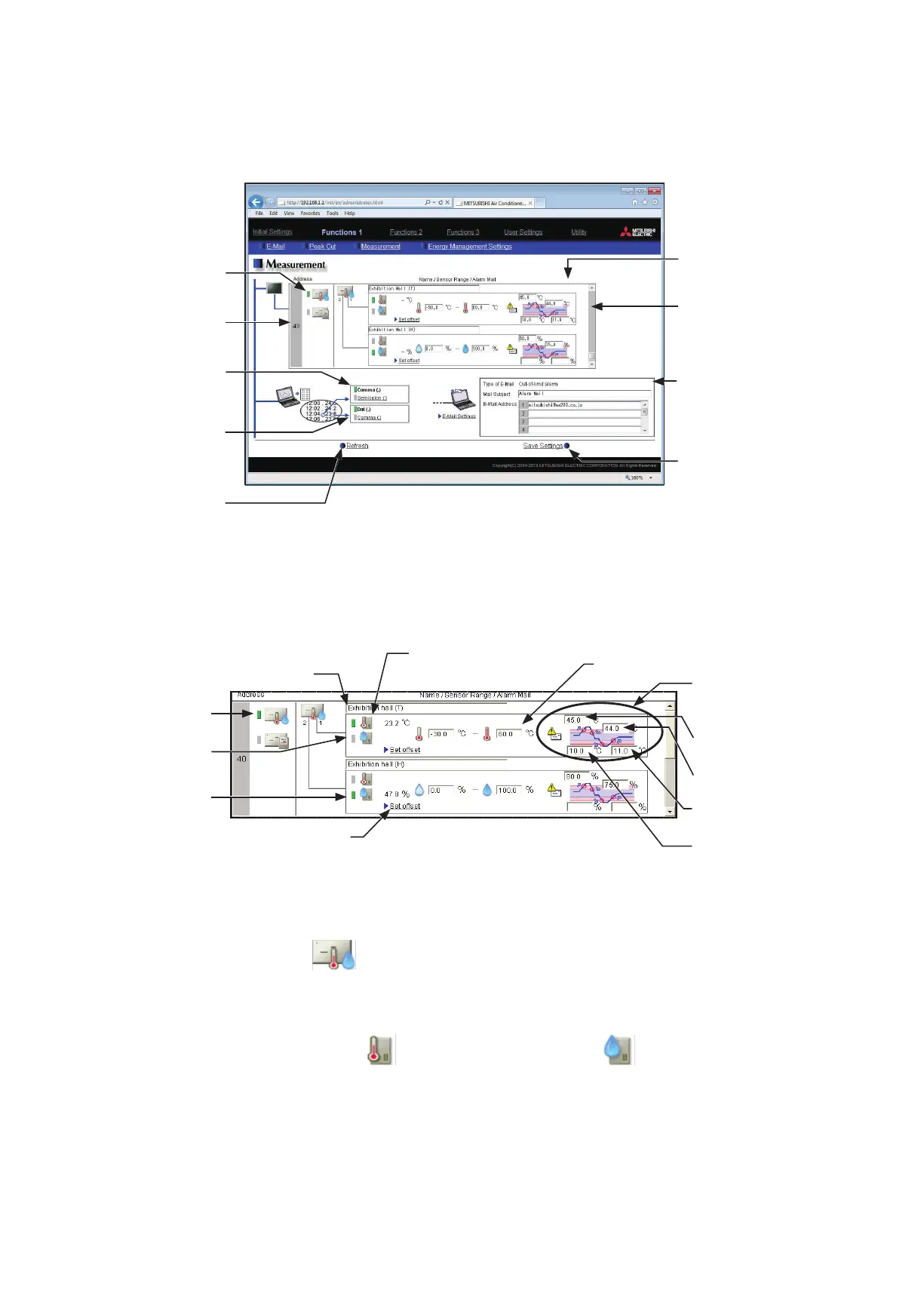

Click [Functions 1] in the menu bar, and then click [Measurement] to access the measurement settings screen. Set
the measurement settings, and then click [Save Settings].
Note: The measurement settings may not be accessible if logged in as a building manager.
[1] Registering AI controllers and temperature/humidity sensors
Follow the instructions below to make the system settings for measurement sensors. Up to two measurement
sensors can be connected to an AI controller (PAC-YG63MCA).
(1) Using the scroll bar, select the address to which the AI controller (PAC-YG63MCA) will be connected.
(2)
Select the AI controller icon (
).
Note: Click again to deselect.
(3) In the [Sensor name] field, enter the name of the sensor.
(4)
Select the temperature sensor icon (
) or the humidity sensor icon ( ).
(5) Enter the measurable range of the sensor.
Note: When the Pt sensor is connected, the range must be between -30ºC (-22ºF) and +60ºC (+140ºF).
When the sensors other than the Pt sensors are connected, enter the ranges that are described in the operation
manuals of the sensor.
Selection of AI or PI
controller
M-NET address of
AI or PI controller
Selection of separator
character for energy
management data
Selection of decimal point
character for energy
management data
Refresh
Click to import the settings
from AE-200/AE-50/EW-50.
Setting details
Scroll bar
Slide to show the address to
which the AI or PI controller
will be connected.
E-mail Settings
Save Settings
Click to save the changes
made.
AI controller icon
Sensor name
Setting details of
sensor 1
Setting details of
sensor 2
Set offset
Selection of temperature
or humidity sensor icon
Measurable range
Upper/lower ON- and
OFF-threshold settings
for e-mail alarm function
Upper limit
(ON-threshold)
Upper limit
(OFF-threshold)
Lower limit
(OFF-threshold)
Lower limit
(ON-threshold)
To Next Page
