7-1-3. Groups
Click [Initial Settings] in the menu bar, and then click [Groups] to access the group settings screen. Register the
groups of air conditioning units, LOSSNAY units (ventilators), Air To Water (PWFY) units, AHC, HWHP (CAHV,
CRHV) units, chiller units, or general equipment to be connected to the AE-200/AE-50/EW-50, and then touch [Save
Settings].
Note: HWHP (QAHV) units cannot be registered from the Web Browser for Initial Settings. Register the HWHP (QAHV) units on
the LCD.
Note: Some settings may not be accessible if logged in as a building manager.
Note: When registering LOSSNAY units or OA Processing units, do not combine the units that support Night Purge function and
the units that do not in one group.
7-1-3-1. Setting group names
In the [Group Name] field, enter the group name to be displayed in 20 characters or less.
Note: The following characters cannot be used in the [Group Name] field: <, >, &, “, or ‘
7-1-3-2. Registering air conditioners, Air To Water (PWFY) units, LOSSNAY units, HWHP (CAHV,
CRHV) units, or chiller units to a group
(1) To register air conditioners, Air To Water (PWFY) units,
LOSSNAY units, or HWHP (CAHV, CRHV) units to each group,
click the [Unit registration] field next to the target group name.
The [Select Unit Addresses] screen will appear.
Check the radio button next to [Air-conditioners / Air to water
/ HWHP], and select the address numbers of the units to be
registered.
The selected unit addresses will appear with a yellow-green
background.
Click again to deselect. The deselected unit addresses will
appear with a light-gray background.
Note: Each group can contain up to 16 units.
Note: Units other than general equipment cannot be combined with
general equipment in one group. To register general equipment to
a group to which units other than general equipment are already
registered, delete the existing registration first before registering
general equipment to it.
Note: The addresses of the units that have been registered to other
groups will appear with a gray background and cannot be
selected.
(2) To change the icon, click the right or left arrow.
The selected icon will be displayed on the Web browser.

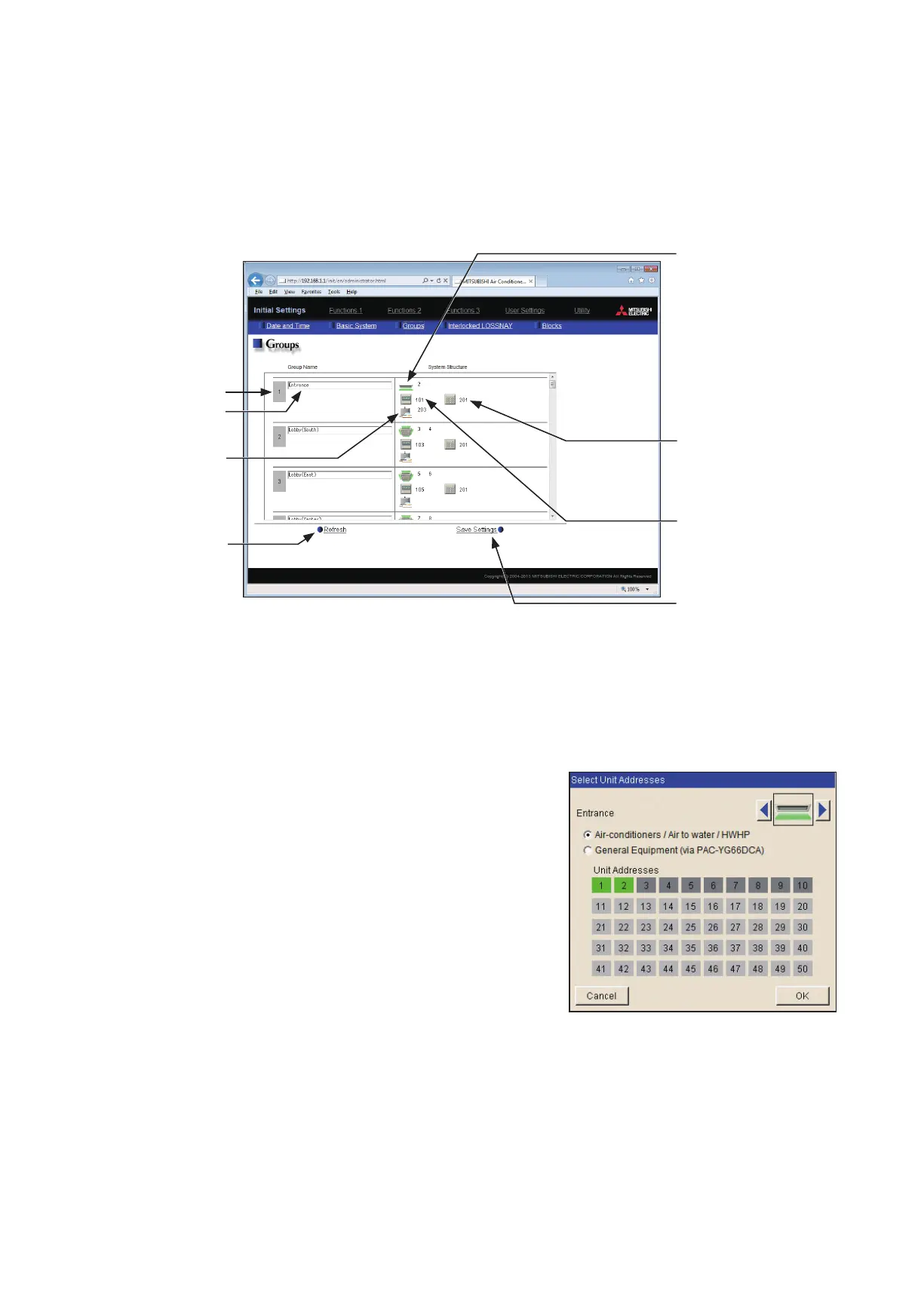

Group No.
Group name
AHC registration
Click to display the screen
for registering the AHC.
Refresh
Click to import the settings
from AE-200/AE-50/EW-50.
Unit registration
Click to display the screen
for registering the air
conditioners, Air To Water
(PWFY) units, LOSSNAY
units, HWHP (CAHV, CRHV)
units, chiller units, and
general equipment.
System controller
registration
Click to display the screen
for registering the system
controllers.
Remote controller
registration
Click to display the screen
for registering the remote
controllers.
Save Settings
Click to save the changes
made.
To Next Page
