(3) Select [SC/RC] to prohibit the operation from both the sub system controllers and the remote controllers.
Select [RC Only] to prohibit the operation only from the remote controllers.
[4] External Input Setting
Using the external signal input function, the following types of collective operations can be performed for all
connected air conditioning units: Demand level, Emergency stop, ON/OFF operation, and Prohibit/Permit local
remote controller operation.
A separately-sold external input/output adapter (PAC-YG10HA-E) is required.
Note: Make the M-NET settings only on the AE-200.
Note: A separate license is required to activate the Peak Cut control using the external input function. Make sure that the required
license has properly been registered on the [License] screen. (Refer to section 4-5 “License registration for optional
functions” for details.)
(1) Switch the [Controller] setting between [AE200] and [Exp1] through [Exp4] to make settings for each AE-200,
AE-50, and EW-50 individually.
(2) Select [Demand (Level signal)/Not in use], [Emergency Stop (Level signal)], [ON/OFF (Level signal)], or [ON/
OFF/Prohibit/Permit (Pulse signal)]. Refer to the Installation Manual for details.
[5] Communication error detection
By switching the communication error detection setting, communication error between AE-200 and AE-50/EW-50
(6920) can either be detected or not detected by the AE-50/EW-50.
Note: This settings screen will appear when making the settings for AE-50/EW-50 on the AE-200’s LCD, or when making the
settings on the AE-50’s LCD.
Note: When the IP address of AE-200 is changed, make sure to set the communication error detection setting for the IP address
of the AE-200 before change to “Do not detect.” If not set, AE-50/EW-50 will detect a “6920” error for the IP address of the
AE-200 before change.
(1) Select whether “Detect” or “Do not detect” communication error for each IP address.
Select “Detect” for the IP address of the AE-200 that is connected.
Select “Do not detect” for the IP address of the AE-200 that is not currently connected.

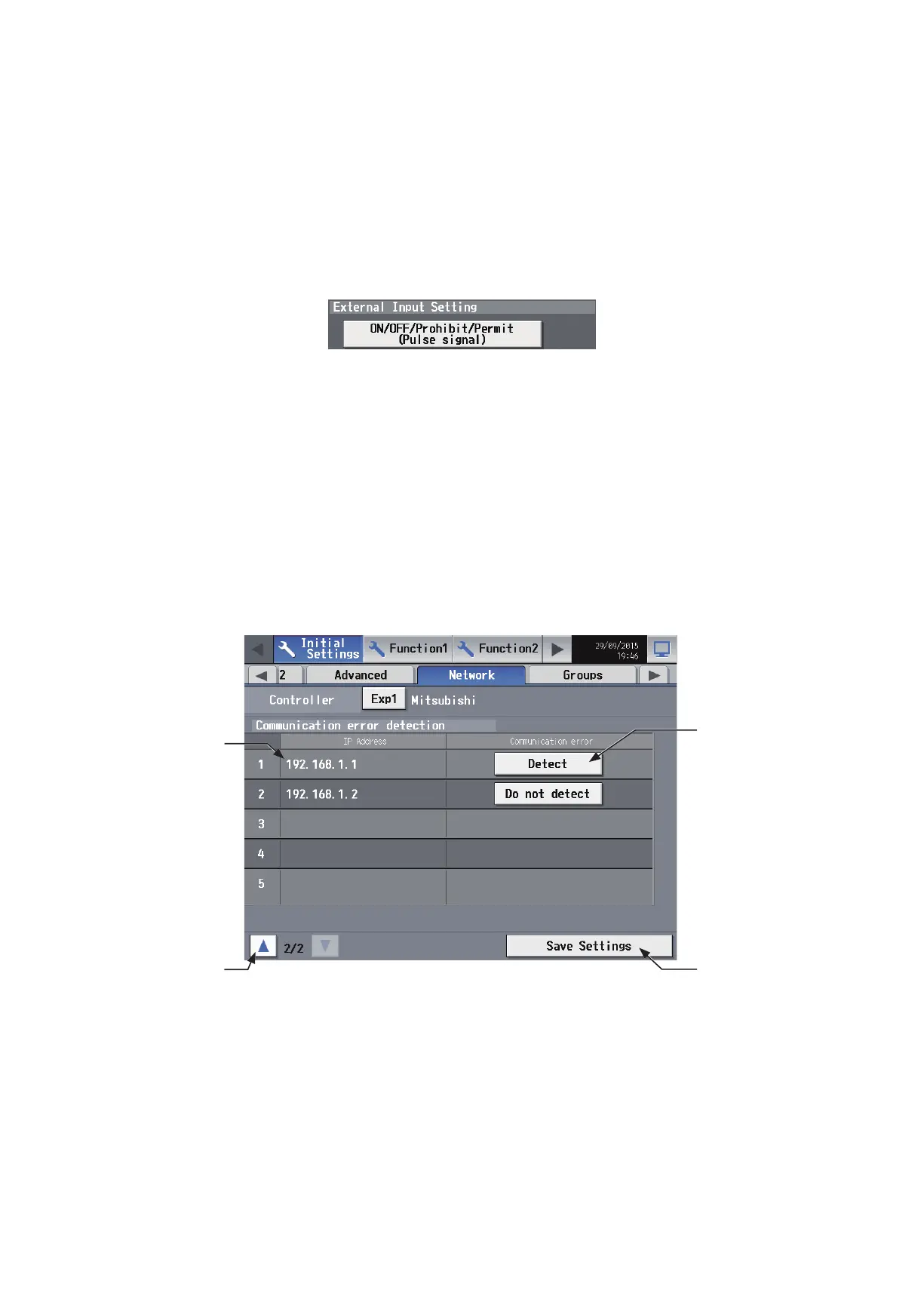

Touch to go to the previous
page.
Detect communication
error
Select whether “Detect”
or “Do not detect”
communication error for
each IP address.
Save Settings
Touch to save the changes
made.
IP address of AE-200
To Next Page
