[2] Energy management block settings
(1) Click [Unit Settings] > [Energy Management Block] to access the energy management block settings
screen.
(2) In “Energy management block name”, enter the energy management block number in 20 characters or less.
Note: By setting the same name for the energy management blocks that are connected to different AE-200 units, the
calculation results can be merged.
Refer to the Instruction Book (Apportioned Electricity Billing Function) for details.
Note: Click [Copy from block settings] to create an energy management block with the settings copied from the block
settings. Then, make the setting for the OA Processing units in steps (6) through (8).
(3)
Click the icon in “Member block registration” (
) to display the member block selection screen.
(4) Select one of the controllers ([AE200], [Exp1] through [Exp4]) of the member block to be registered.
(5) Select the block number of the member block to be registered, and click [OK].
Note: To show the block name, move the cursor to the block number.
(6)
Click the icon in “Member LOSSNAY with heater/humidifier registration” (
) to display the OA Processing
unit address selection screen.
Note: The setting for the OA Processing units in steps (6) through (8) is required only when the apportioned electricity
billing function is used.
(7) Select the controller ([AE200], [Exp1] through [Exp4]) of the OA Processing unit to be registered.
(8) Select the unit address of the OA Processing unit to be registered, and click [OK].
Note: To show the block name, move the cursor to the block number.
(9) Click [Save] to save the settings.

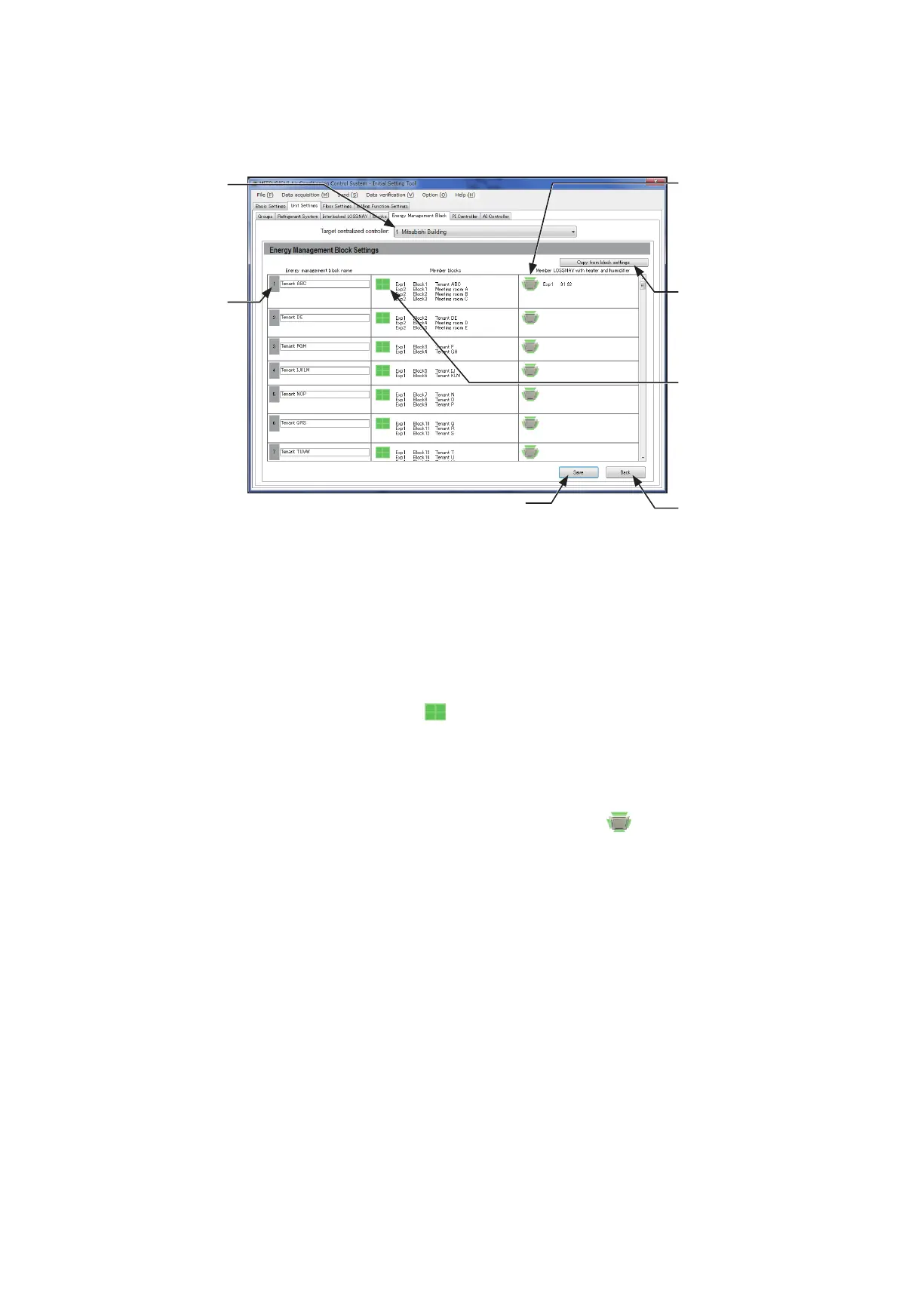

Energy management block
No.
Save
Click to save the settings.
Member block registration
Click to display the screen
for selecting member blocks.
Back
Click to display the previous
settings without making any
changes.
Target centralized
controller
Select one of the connected
centralized controllers
whose energy management
block settings are to be
made.
Member LOSSNAY
with heater/humidifier
registration
Click to display the screen
for selecting OA Processing
units.
Copy from block settings
Click to create an energy
management block with the
settings copied from the
block settings.
