27
WT07627X03

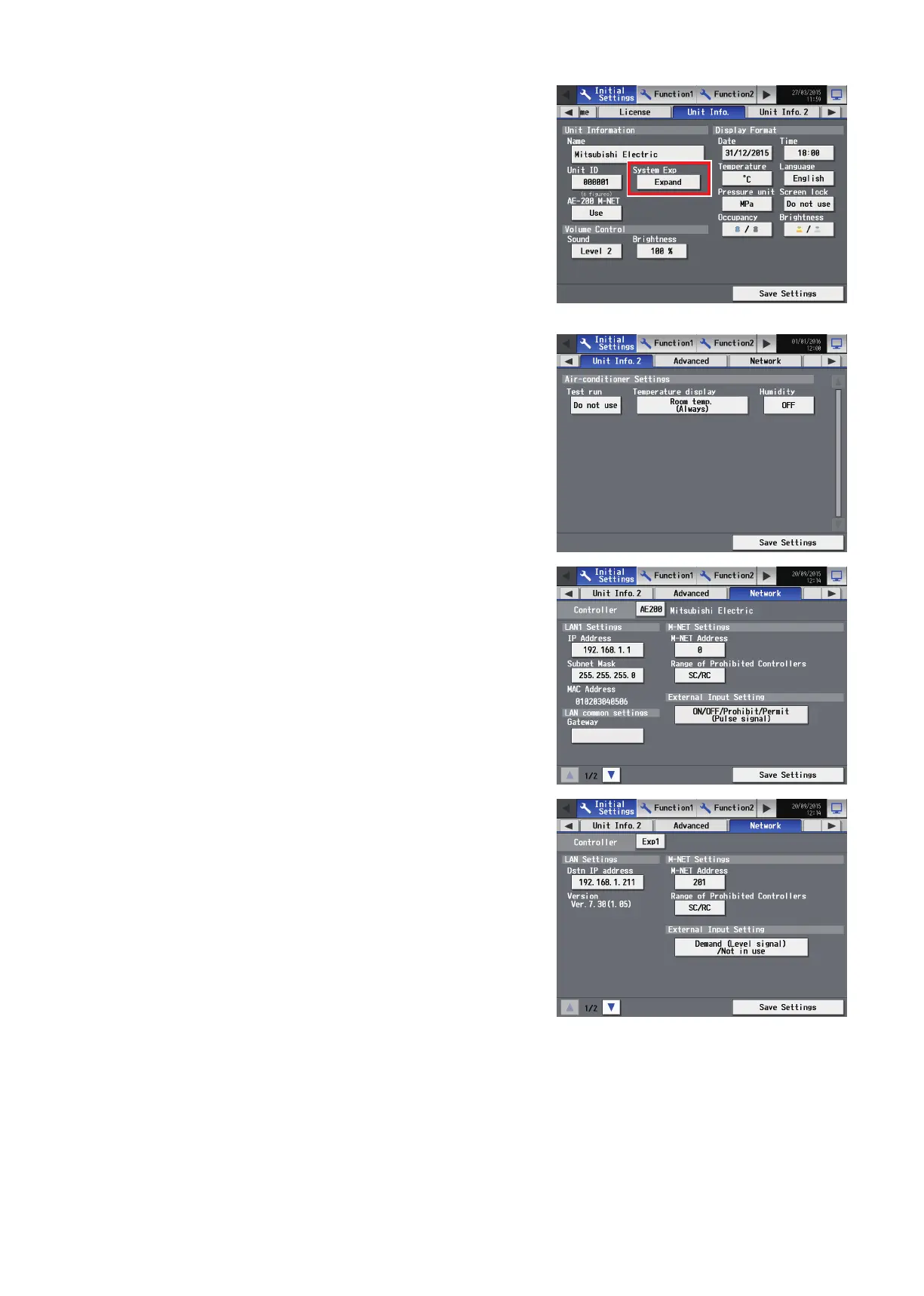

(2) Touch the [Unit Info.] and [Unit Info. 2] tabs.
Referring to section 5-1-4 “Unit Information”, make necessary
basic settings, and then touch [Save Settings].
Note: Make sure to set the [System Exp] setting for the AE-200 to
[Expand].
Note: The [AE-200 Apportion] setting will appear only when the
“Charge” license has been registered.
Unit Info.
Unit Info. 2
(3) Touch the right triangle button to display the [Network] tab, and
touch it.
Referring to section 5-1-5 “Network”, make sure that [AE200]
is selected as [Controller], set the AE-200’s IP address and
subnet mask, and then touch [Save Settings].
The AE-200 will reboot.
When the reboot process is complete, log in to the Initial
Settings menu.
Note: Refer to section 5-1-1 “Logging in to the Initial Settings menu”
for how to log in.
Note: Do not touch the LCD during the reboot.
(4) In the [Controller] section, select [1], [2], [3], or [4] to make
settings for each AE-50/EW-50.
Referring to section 5-1-5 “Network”, set the IP address of
each AE-50/EW-50 that is connected to the AE-200, and
M-NET address, and then touch [Save Settings].
To Next Page
