56
WT07627X03
[3] Moving a group to other areas

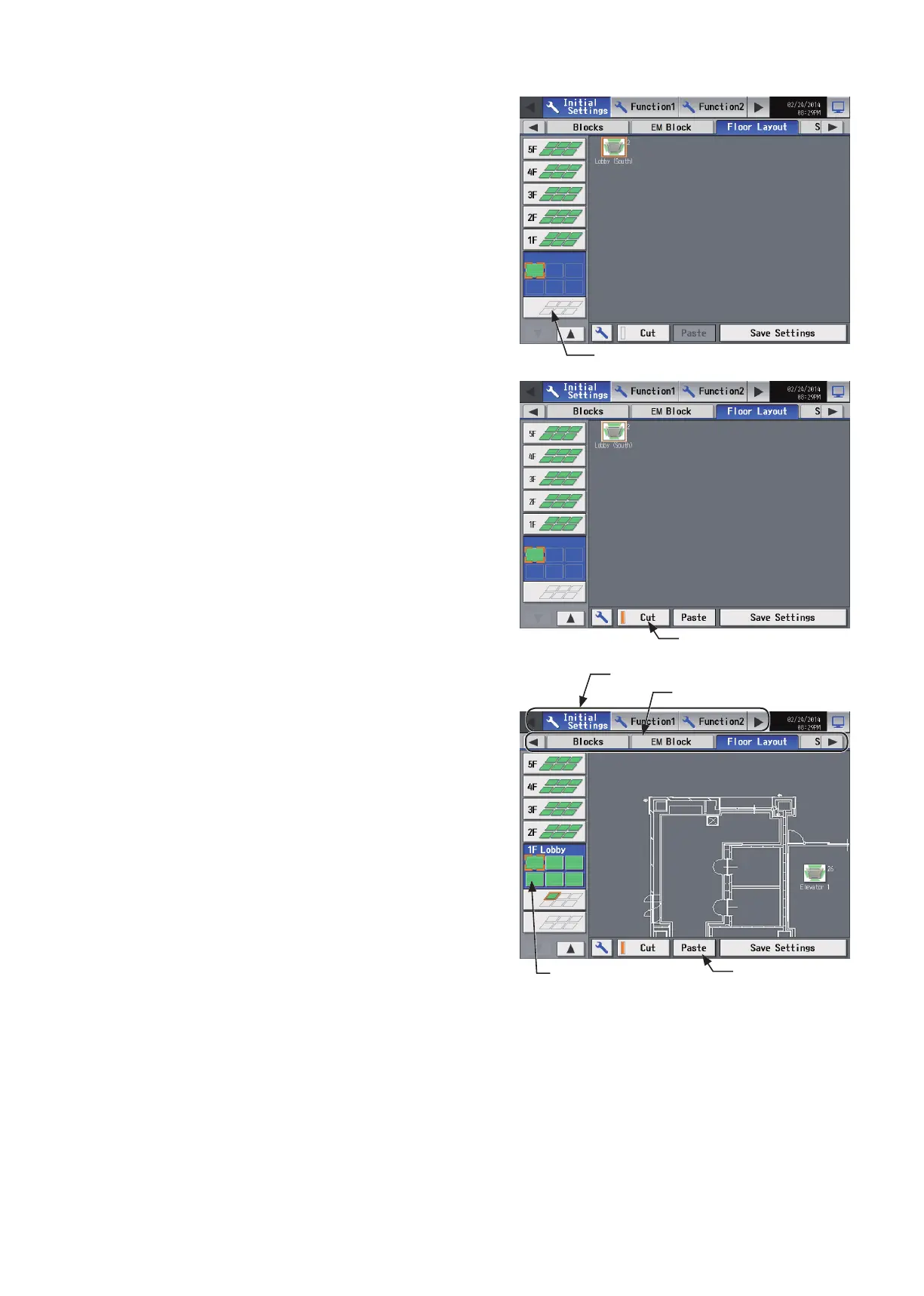

(1) On the [Floor Layout] screen, touch the group icon to
be moved. The selected group icon will appear with an
orange frame.
Note: When the “Unassigned groups” button is touched,
groups that have not been assigned to any area will
appear in the order of their group numbers. (Up to 30
groups will appear in an area.)
(2) Touch [Cut].
The orange frame will change to a pale orange frame.
(3) With the pale orange frame being displayed, select the
area to move the group to, and touch [Paste] to move
the selected group to the selected area.
Note: A popup message will appear when you touch the item
in the menu bar or sub menu bar to see other screens
without the changes being saved. Note that the changes
will NOT be saved unless the [Save Settings] button is
pressed.
Unassigned groups
Cut
Area selection
Paste
Menu bar
Sub menu bar
To Next Page
