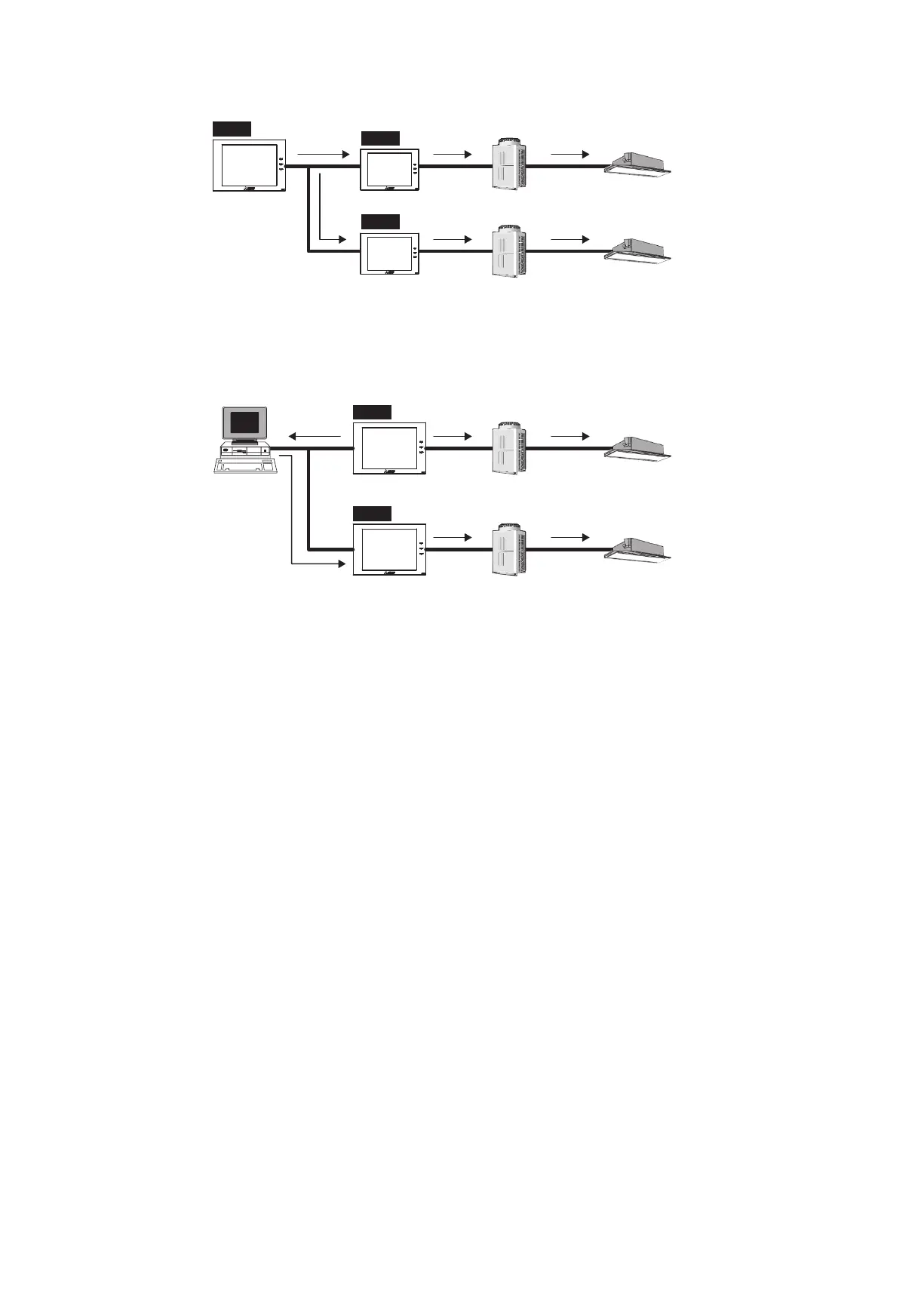

(2) System with an AE-200 controller connected to AE-50 controllers
Leave the default setting [Master] as it is.
AE-200
AE-50
AE-50
(3) System with a high-level system (i.e., TG-2000A) connected to AE-200 controllers
Leave the default setting [Master] as it is.
TG-2000A
AE-200
AE-200
[2] Old model compatibility mode
In the [Old model compatibility mode] section, select [ON] or [OFF].
When [ON] is selected, the Dual set point function and Prohibit Remote Controller function (Timer, Air Direction, Fan
Speed) cannot be used.
Note: If the setting is changed, the controller will reboot.
Note: When changing the old model compatibility mode while this mode is used, note the following.
• The set temperature will go back to the default setting value. Write down the current set temperature of each group to
reconfigure the set temperature settings later.
• The set temperature for the schedule settings will be cleared. Write down the current set temperature of each group for
schedule settings to reconfigure the set temperature settings later.
• Some equipment whose operation is to be interlocked with another equipment support the dual set point function in the
Auto mode. Reconfigure the Interlock Control setting if it is affected by the change of the old model compatibility mode.
[3] Hold type
The Hold function is a function to disable the operations that were scheduled for air conditioning unit groups.
If the setting for [Hold] is set to [ON] on the operation settings screen under the [Monitor/Operation] menu and the
[Hold type] on the screen above is set to [Forced], the [Hold] setting can be cancelled only from the AE-200/AE-50.
If the [Hold type] is set to [Normal], the [Hold] setting can be cancelled from AE-200/AE-50, other system controllers,
or remote controllers.
Note: The Hold function can be used on the AE-200A/AE-50A, but not on the AE-200E/AE-50E.
Note: The Hold function cannot be used on general equipments.
Note: The setting [Forced] will not be effective on Air To Water (PWFY) unit groups, LOSSNAY unit groups, HWHP (CAHV, CRHV)
unit groups, general equipment groups, and air conditioning unit groups that do not support the Hold function (i.e., Mr. Slim
M-Series/P-Series indoor units). If the setting for [Hold] is set to [ON] on those unit groups on the operation settings screen
and the [Hold type] on the screen above is set to [Forced], the setting [Normal] will be effective.
[4] Schedule: Season setting
In the [Schedule: Season setting] section, select [Available] to enable the seasonal settings of the weekly schedules
and [Not Available] to disable. Unless otherwise specified, leave the default setting [Available] as it is.
Note: The settings made on this screen on the AE-200 will be reflected on this screen on the AE-50.
