5-2-1-1. Peak Cut method
Touch the [Settings] tab in the Peak Cut control settings screen.
[PLC Software for Demand Input]
AE-200
AE-50
AE-50
AE-50
[Electric Amount Count Software]
AE-200
AE-50
AE-50
AE-50
[PI Controller]
AE-200
AE-50
AE-50
AE-50
AE-200
AE-50
AE-50
AE-50
[External Contact point input] (1)
AE-200
AE-50
AE-50
AE-50
[External Contact point input] (2)
AE-200
AE-50
AE-50
AE-50

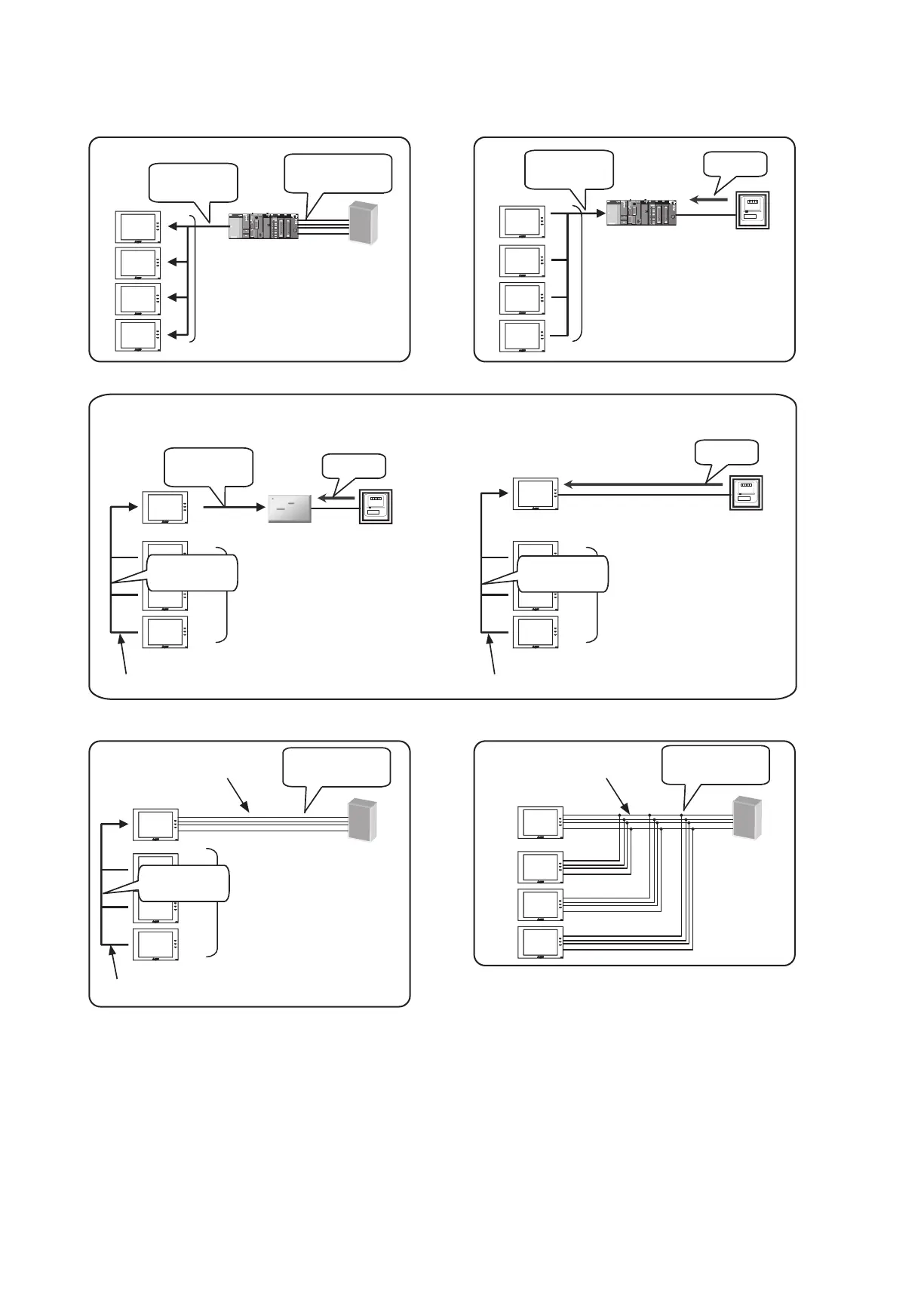

Demand level
signal is sent.
Demand-Input
PLC
Maximum ten
AE-200/AE-50/EW-50 units
Demand
controller
Demand level is
input.
Reads electric
energy values.
Electric Amount
Count PLC
Maximum fourteen
AE-200/AE-50/EW-50 units
Pulse
Pulse-watt-
hour meter
<When a PI controller (PAC-YG60MCA) is used> <When a built-in Pulse Input (PI) is used>
Maximum three
AE-200/AE-50/EW-50 units
Peak Cut method [Remote AE]
Pulse-watt-
hour meter
Reads control
level.
Pulse
(Built-in Pulse Input (PI))
Reads electric
energy values.
Reads control
level.
Peak Cut method [Remote AE]
PI controller
Maximum three
AE-200/AE-50/EW-50 units
Pulse
Pulse-watt-
hour meter
Maximum three
AE-200/AE-50/EW-50 units
Demand level is
input.
Demand
controller
External input/output
adapter (PAC-YG10HA-E)
LAN
Peak Cut method [Remote AE]
Reads control
level.
Maximum three
AE-200/AE-50
/EW-50 units
Demand level is
input.
Demand
controller
External input/output
adapter (PAC-YG10HA-E)
