(3) In the [Temperature difference between set point and inlet] section, a temperature differential can be set to
between 3 and 9 as necessary. The Peak Cut control setting that corresponds to the control level 0 will be
disregarded for the indoor unit groups in which the temperature difference between the set temperature and
the room temperature is greater than the specified temperature differential.
Note: The Peak Cut control setting that corresponds to the control levels 1 to 4 will be effective regardless of the temperature
differential setting.
(4) In the [IP address of controller] field, enter the IP addresses of the AE-200/AE-50/EW-50 units to which the
demand level signal is sent. Up to 10 IP addresses can be registered.

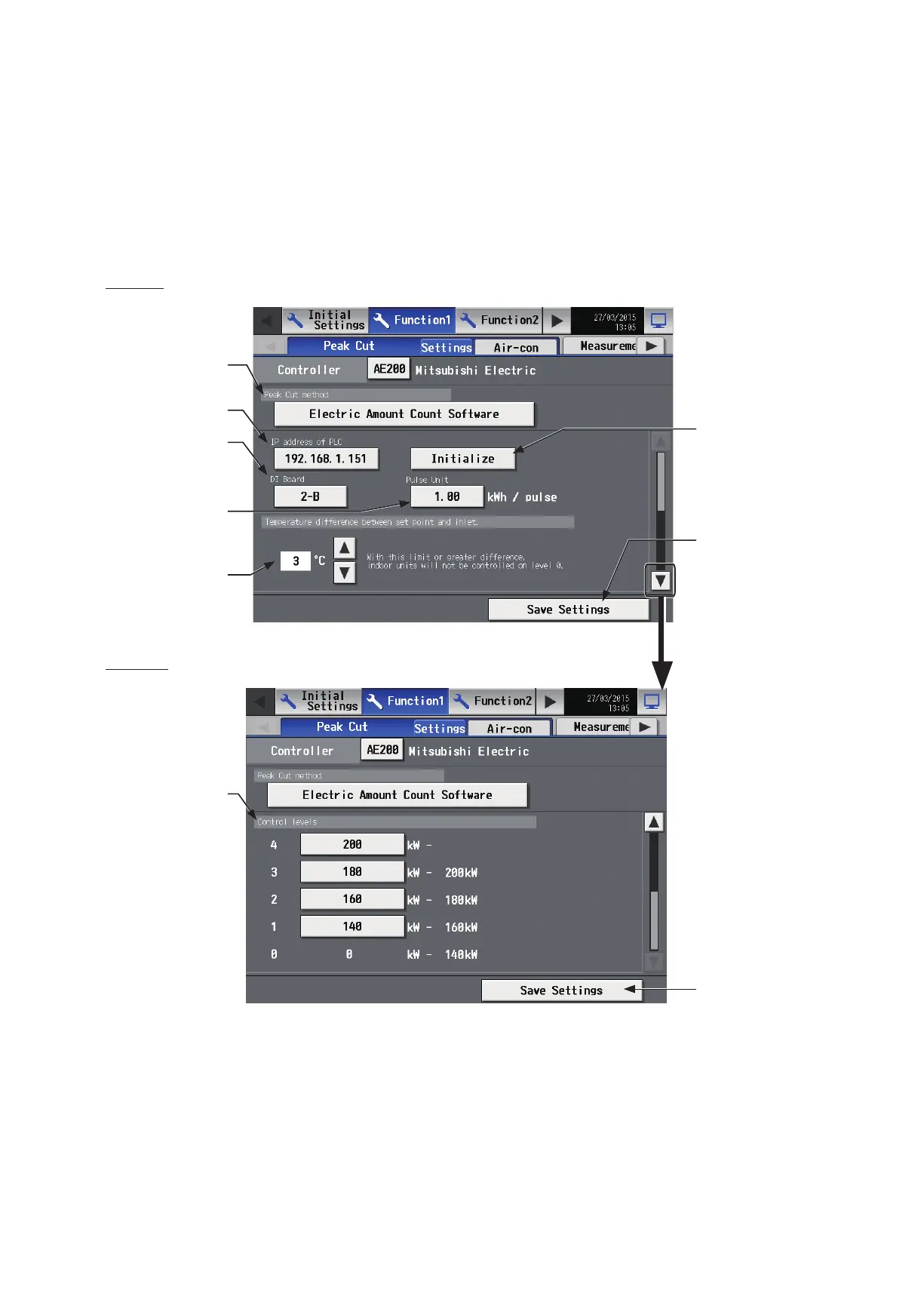

(B) When the Peak Cut method [Electric Amount Count Software] is selected
1st page
2nd page
(1) In the [IP address of PLC] field, enter the IP address of the Electric Amount Count PLC.
Note: Each PLC can be registered to up to ten AE-200/AE-50 units.
Note: This setting is required for each AE-200/AE-50.
(2) When using the Electric Amount Count PLC for the first time, initialize the internal memory.
Note: Do not initialize the Electric Amount Count PLC after the operation has begun, for it will reset all settings to the default
settings and will not properly perform the Peak Cut control.
Peak Cut method
IP address of PLC
Temperature difference
between set point and
inlet
Initialize
Save Settings
DI Board
Pulse Unit
Control levels
Save Settings
