How does it work?
1. If necessary adjust the restraining height - see "Adjusting the restraining height (PPC 300 II)"
on page 26 for details.
2. Use the switch  to lower the bottom bar , then use the switch  to move the upper
bar
 upwards.
3. Use knob  to slide the upper plate  away to open the restraining device.

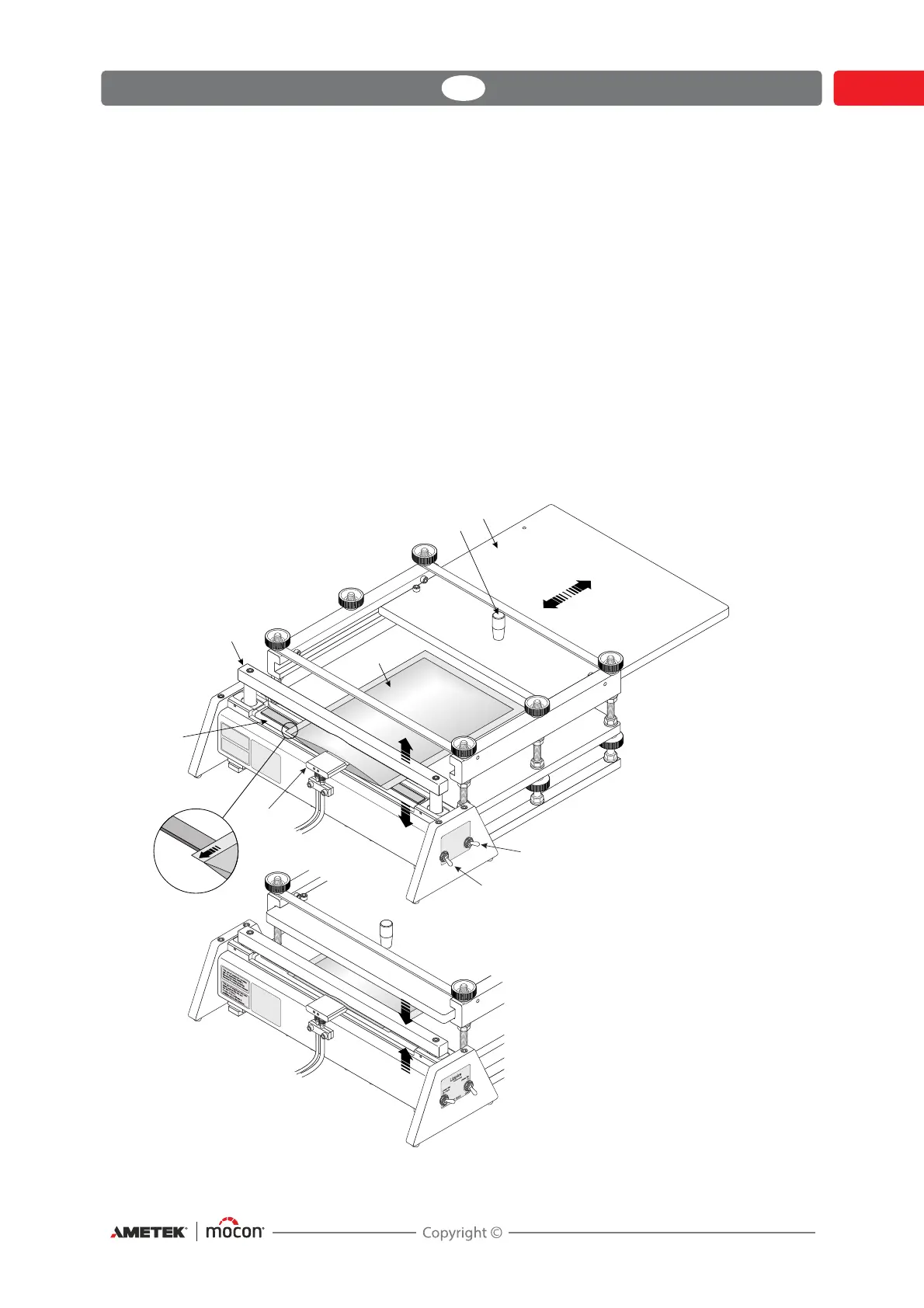

4. Place the pouch  around the air block  as shown. Make sure that the whole front edge
of the pouch extends past the front edge of the rubber band on the lower bar
 (see
detail).
5. Close the restraining device.
6. Use switch  to move the upper bar  down.
7. Use the switch  to move the bottom bar  upwards to close the clamp around the
pouch
 and air block when you start the test.
8. Perform the test.
